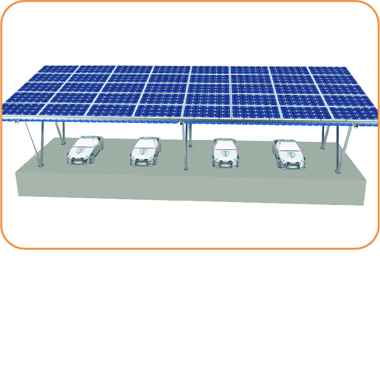

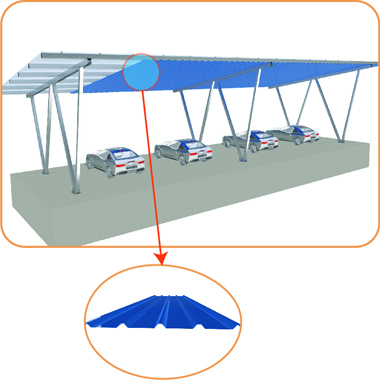

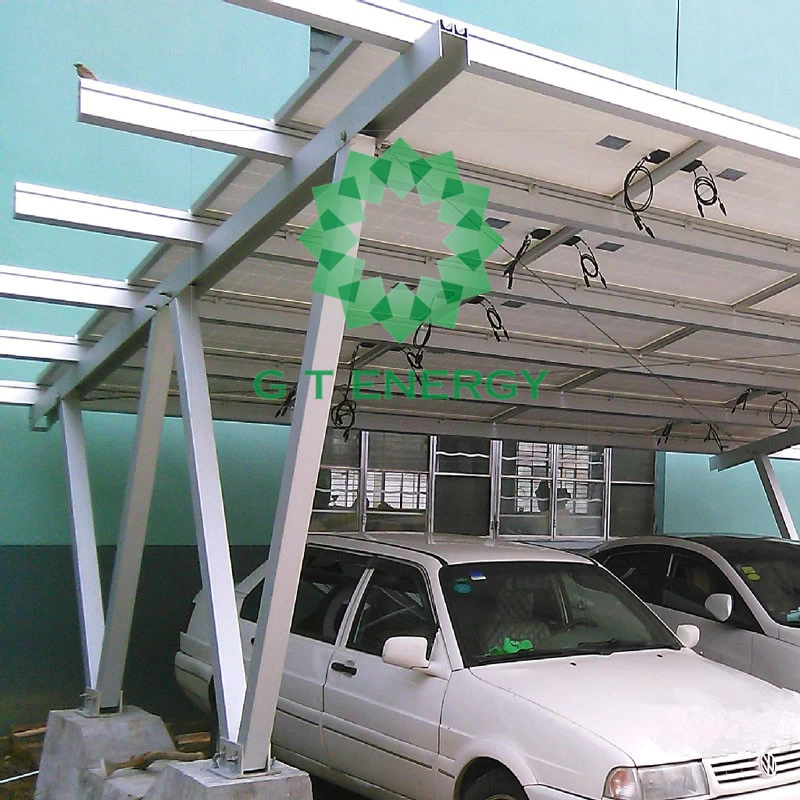

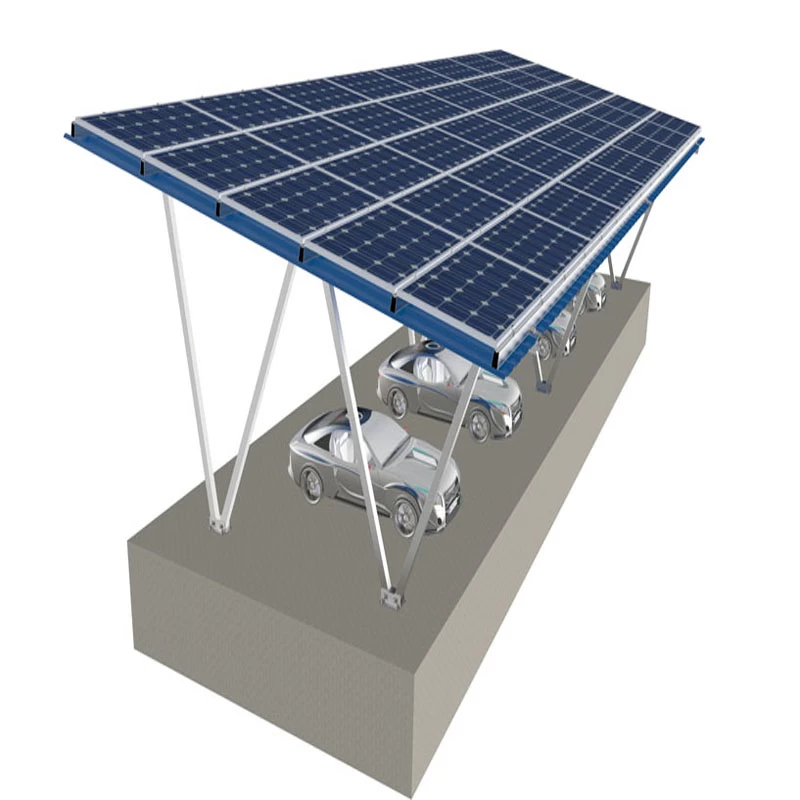

The solar car shed uses a relatively large material, so that the spacing between each stringer is increased enough to park two cars. The color steel tile is installed at the bottom of the beam so that the bottom of the bracket does not leak
Technical Parameters
|
Installation Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

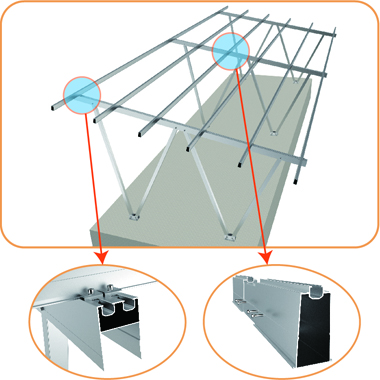

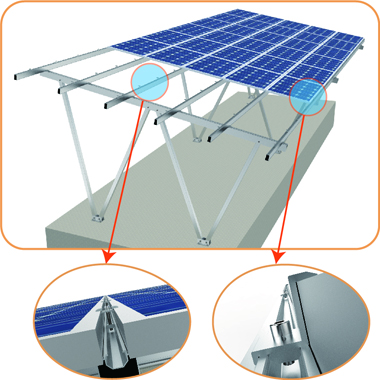

Component photos of aluminum carport ground mount

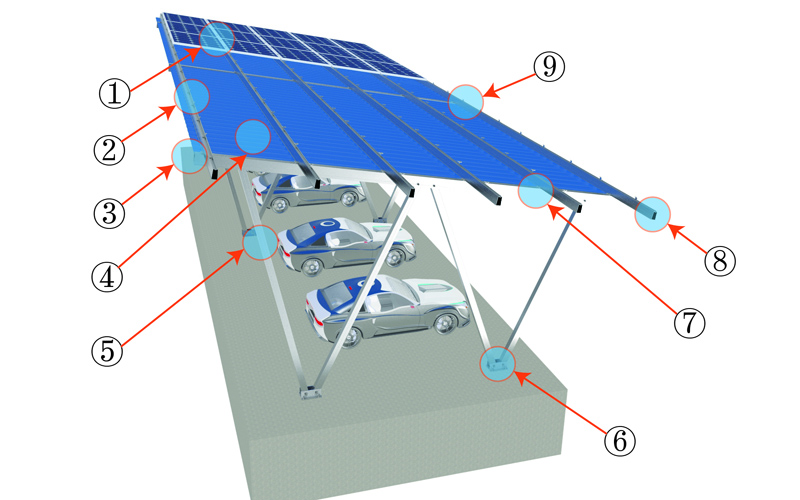

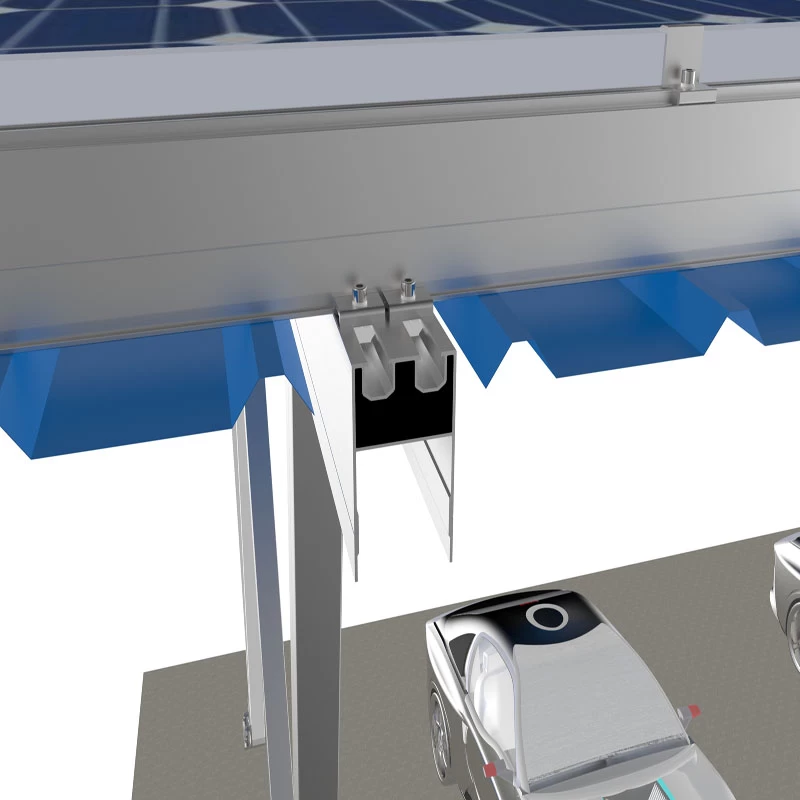

1. Solar inter clamp 2. Solar end clamp 3. Solar carport stringer 4. Color steel tile
5. Solar aluminum alloy 6. Solar carport base 7. Solar rail clamp 8. Solar carport beam
square tube
9. Solar Rail splice
Installation photos of aluminum carport ground mount

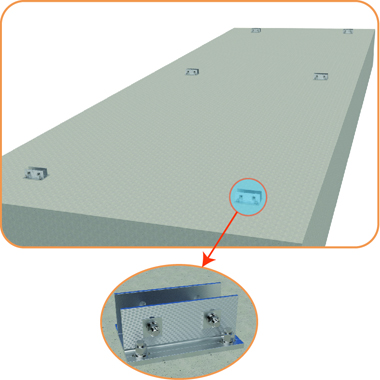

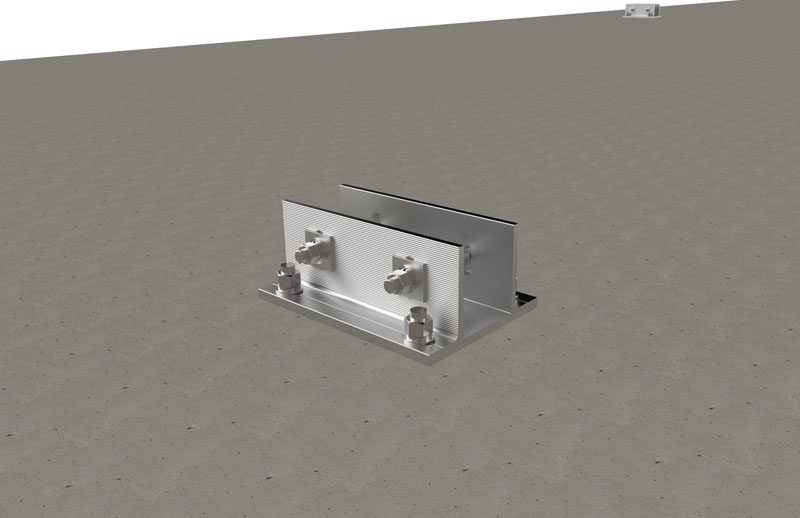

Step1：Install solar carport base according to Step2： Install the pre-assembled support beam
distance marked in drawing on the ground screw

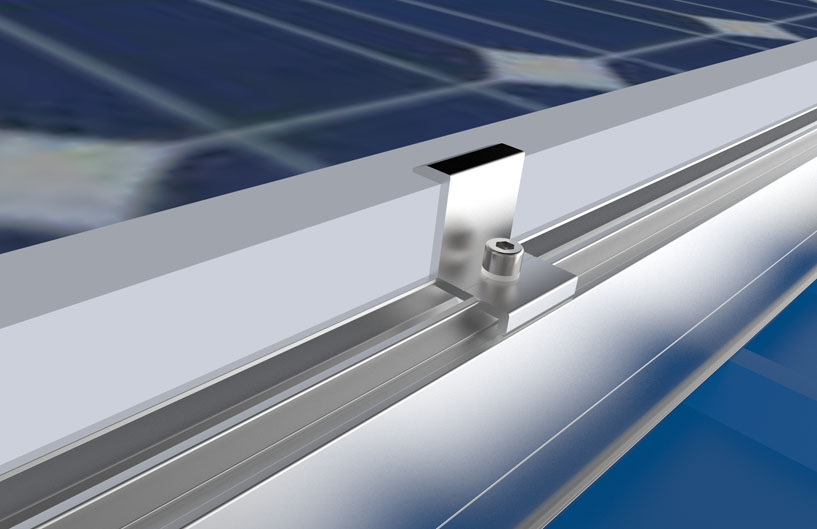

Step3：Install rails and rail splices Step4：Fasten panel by inter clamps and end clamps
Solar carport stringer Solar Rail splice Inter clamp End clamp

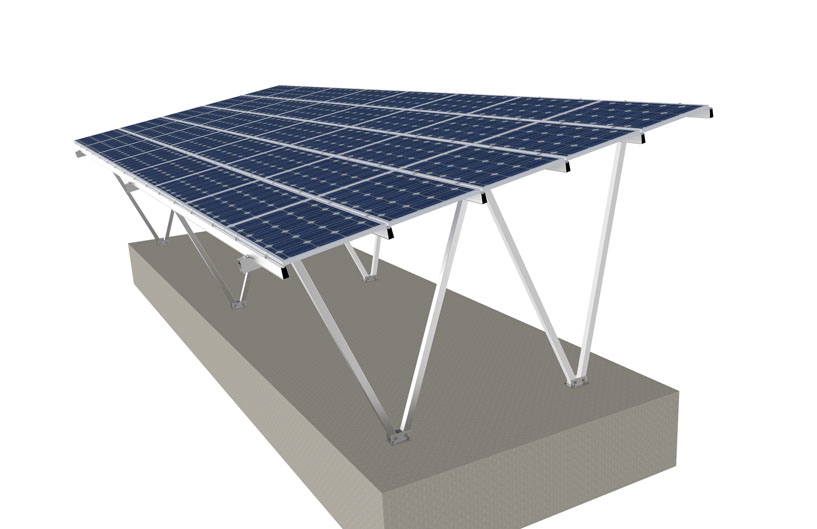

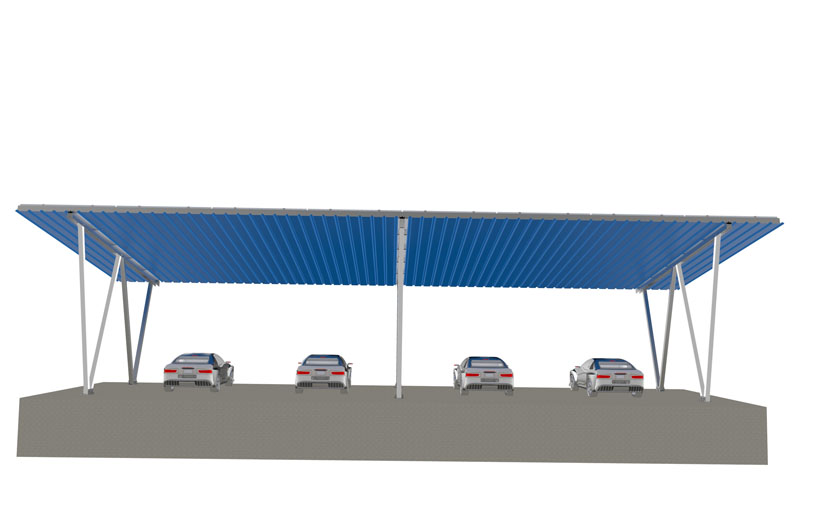

Step5：Install color steel tiles Step6：Installation completion diagram
color steel tiles

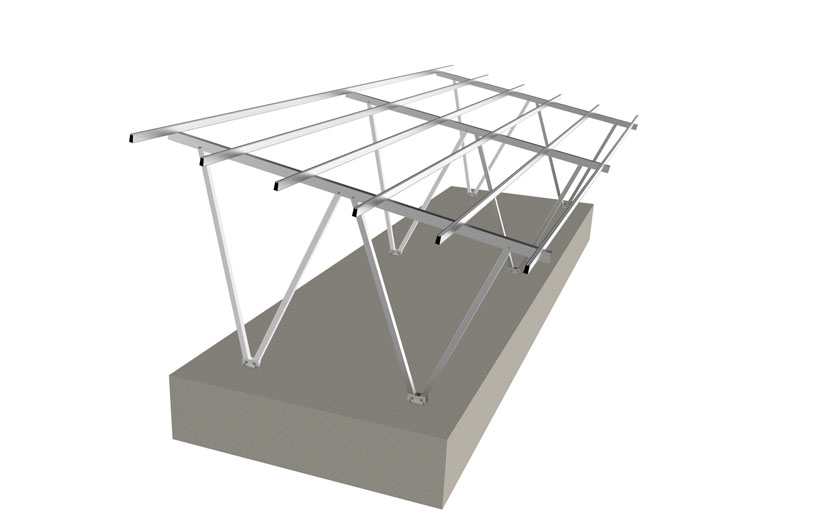

Installation steps 1:install the base

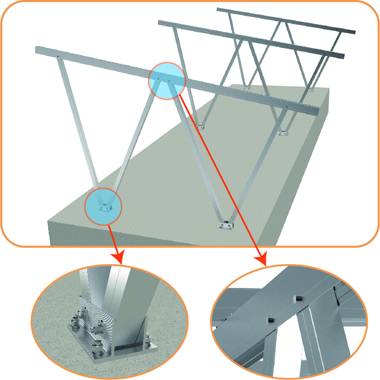

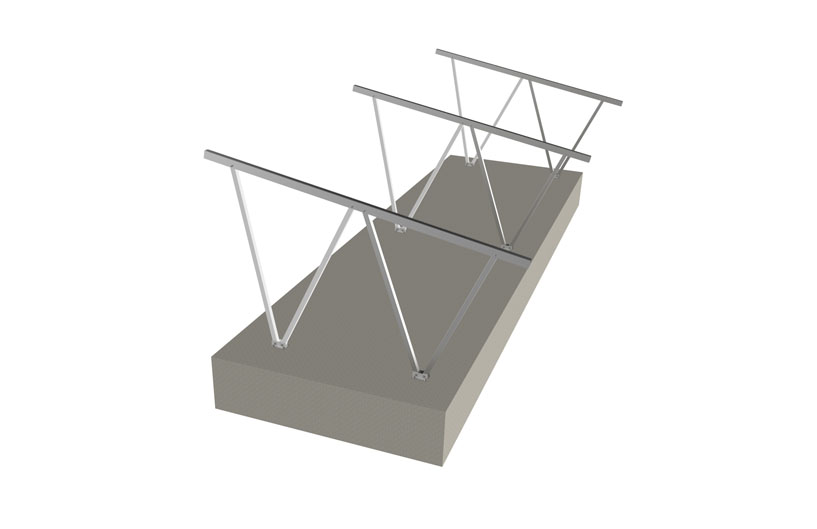

Installation step two:install the pres-assembled support beam

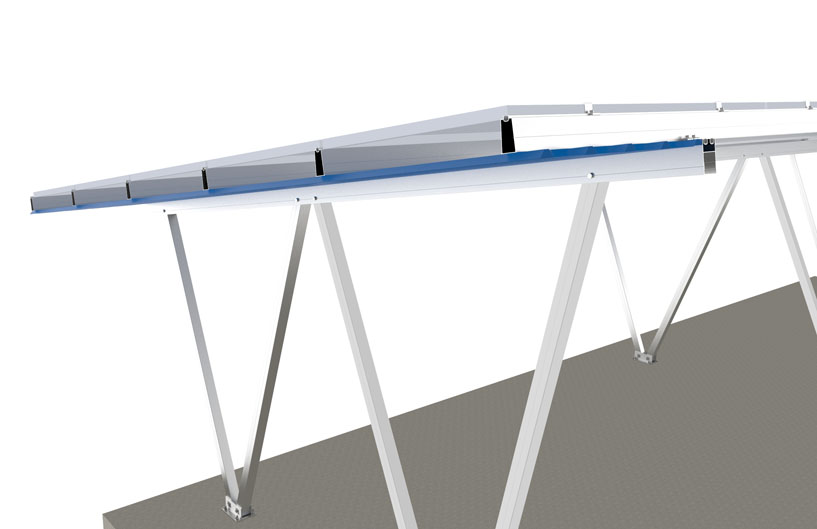

Installation step three:install the rail

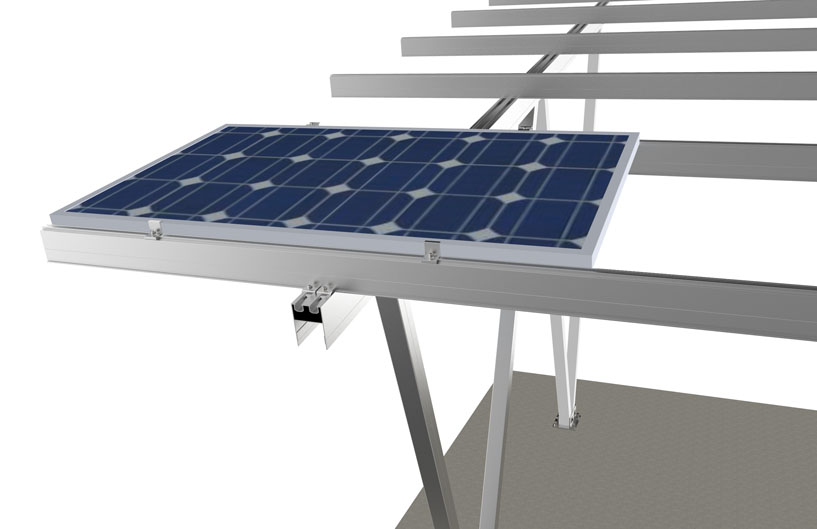

Installation step four:install the panel
