Aluminum Coated Fiberglass Heat Reflective Sleeve Description
ALFS aluminum coated fiberglass heat reflective sleeve is a aluminum coated braided fiberglass heat reflective sleeve and reflects more then 95% radiant heat. It is easily to install due to the smooth inner fiberglass surface.
Aluminum Coated Fiberglass Heat Reflective Sleeve Features
This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.
Aluminum Coated Fiberglass Heat Reflective Sleeve Application
It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.
Aluminum Coated Fiberglass Heat Reflective Sleeve Specifications
|
DATASHEET
|
|
Part Number
|
Normal Inside diameter
|
Meter for Length
|
|
Inches
|
mm
|
Dash #
|
Meter
|
|
ALFS-13
|
1/2
|
13
|
-8
|
20
|
|
ALFS-16
|
5/8
|
16
|
-10
|
20
|
|
ALFS-19
|
3/4
|
19
|
-12
|
20
|
|
ALFS-22
|
7/8
|
22
|
-14
|
20
|
|
ALFS-25
|
1
|
25
|
-16
|
20
|
|
ALFS-29
|
1 1/8
|
29
|
-18
|
20
|
|
ALFS-32
|
1 1/4
|
32
|
-20
|
20
|
|
ALFS-35
|
1 3/8
|
35
|
-22
|
20
|
|
ALFS-38
|
1 1/2
|
38
|
-24
|
20
|
|
ALFS-41
|
1 5/8
|
41
|
-26
|
20
|
|
ALFS-44
|
1 3/4
|
44
|
-28
|
20
|
|
ALFS-48
|
1 7/8
|
48
|
-30
|
20
|
|
ALFS-51
|
2
|
51
|
-32
|
20
|
|
ALFS-57
|
2 1/4
|
57
|
36
|
20
|
|
ALFS-60
|
2 2/5
|
60
|
-38
|
20
|
|
ALFS-64
|
2 1/2
|
64
|
-40
|
20
|
|
ALFS-67
|
2 5/8
|
67
|
-42
|
20
|
|
ALFS-70
|
2 3/4
|
70
|
-44
|
20
|
|
ALFS-73
|
2 7/8
|
73
|
-46
|
20
|
|
ALFS-76
|
3
|
76
|
-48
|
20
|
|
ALFS-83
|
3 1/4
|
83
|
-52
|
20
|
|
ALFS-89
|
3 1/2
|
89
|
-56
|
20
|
|
ALFS-95
|
3 3/4
|
95
|
-60
|
20
|
|
ALFS-102
|
4
|
102
|
-64
|
20
|
|
ALFS-114
|
4 1/2
|
114
|
-72
|
20
|
|
ALFS-121
|
4 3/4
|
121
|
-76
|
20
|
|
ALFS-127
|
5
|
127
|
-80
|
20
|
|
ALFS-133
|
5 1/4
|
133
|
-84
|
20
|
|
ALFS-140
|
5 1/2
|
140
|
-88
|
20
|
|
ALFS-146
|
5 3/4
|
146
|
-92
|
20
|
|
ALFS-152
|
6
|
152
|
-96
|
20
|
|
Technical Datasheet
|
|
Material
|
Aluminum, fiberglass
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Silver
|
|
Standard Thickness
|
1-2 mm
|
|
MOQ
|
100 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness upon request
Special length or packing upon request.
Special size upon request.

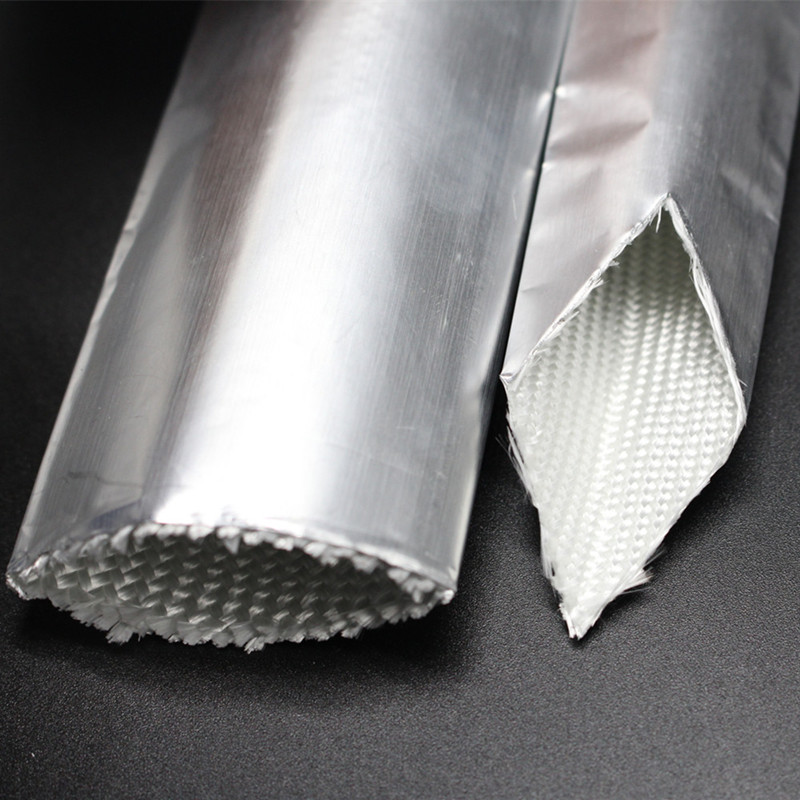

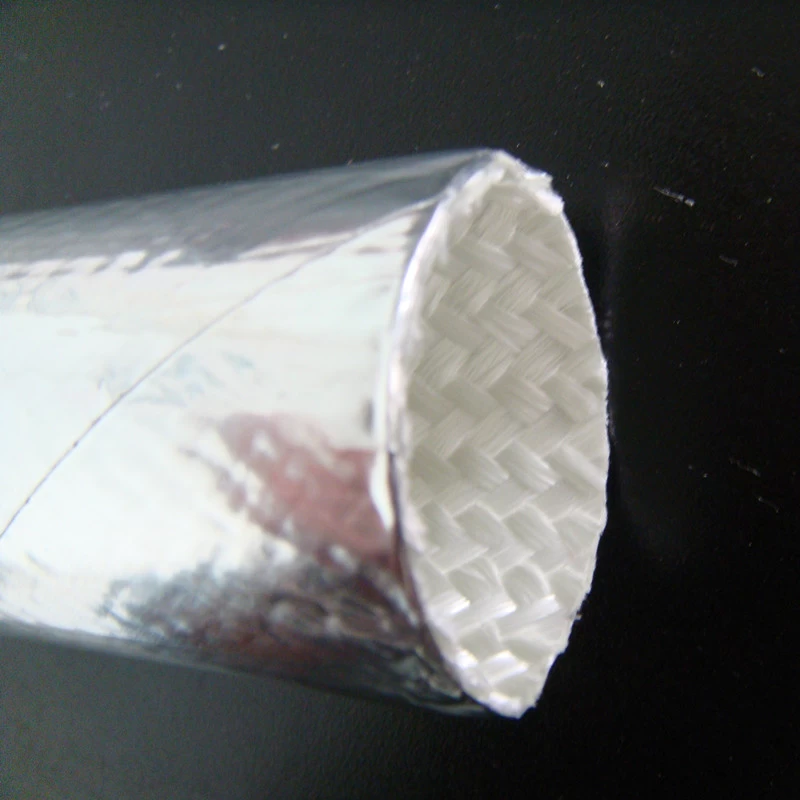

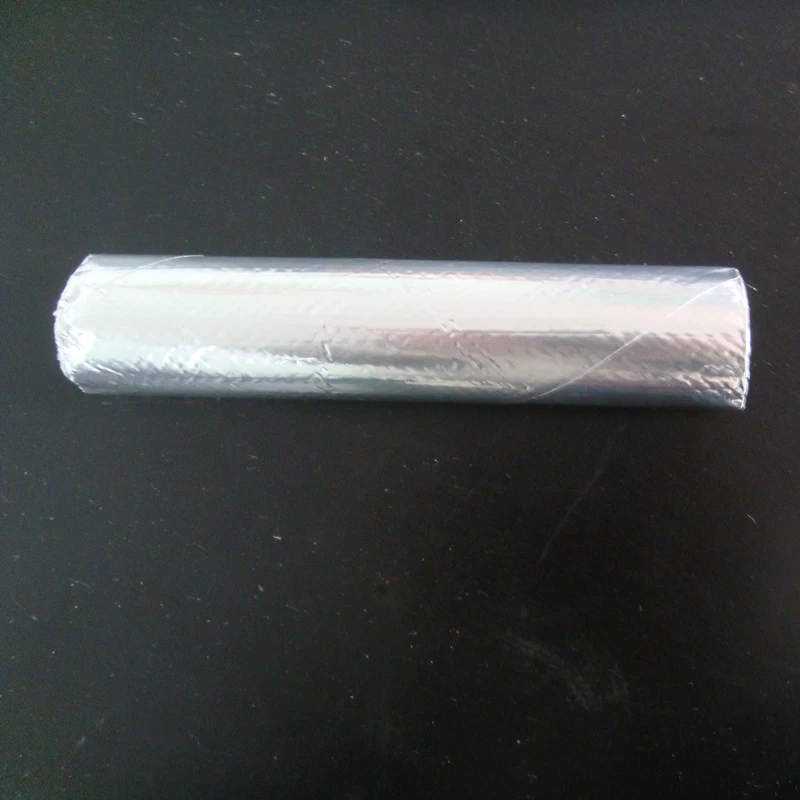

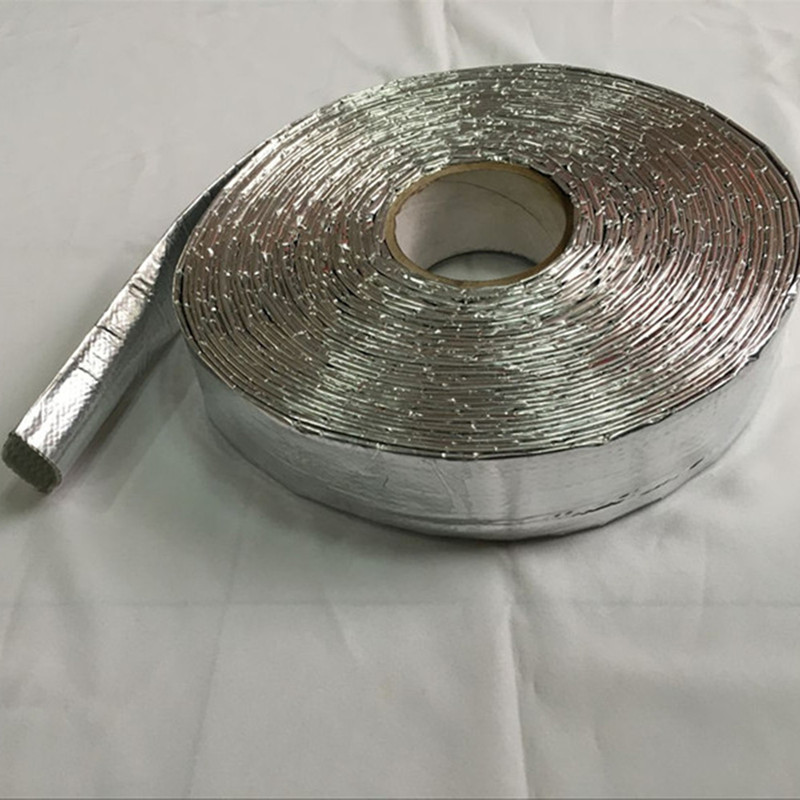

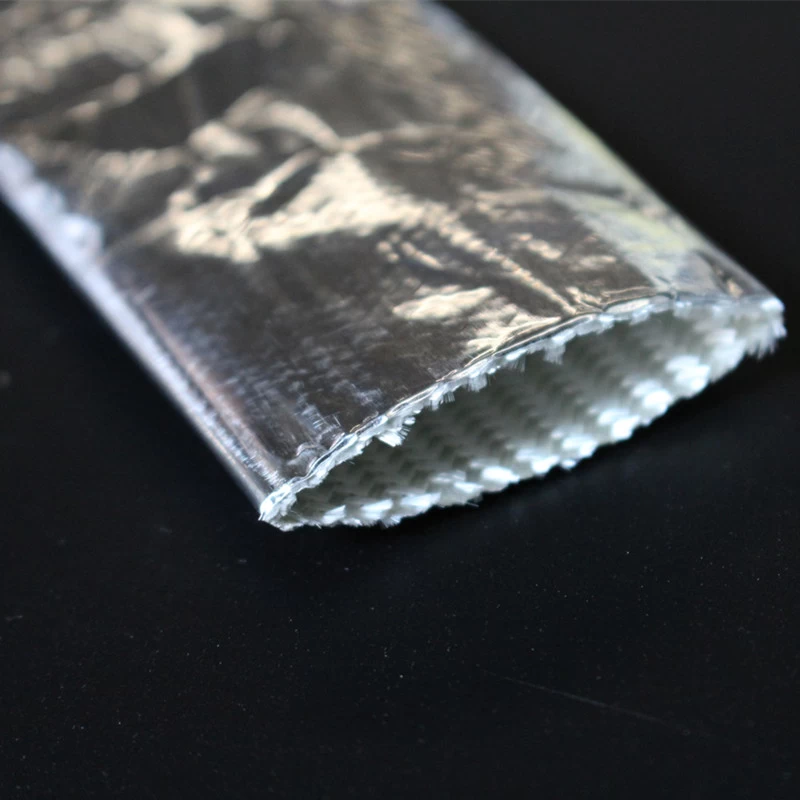

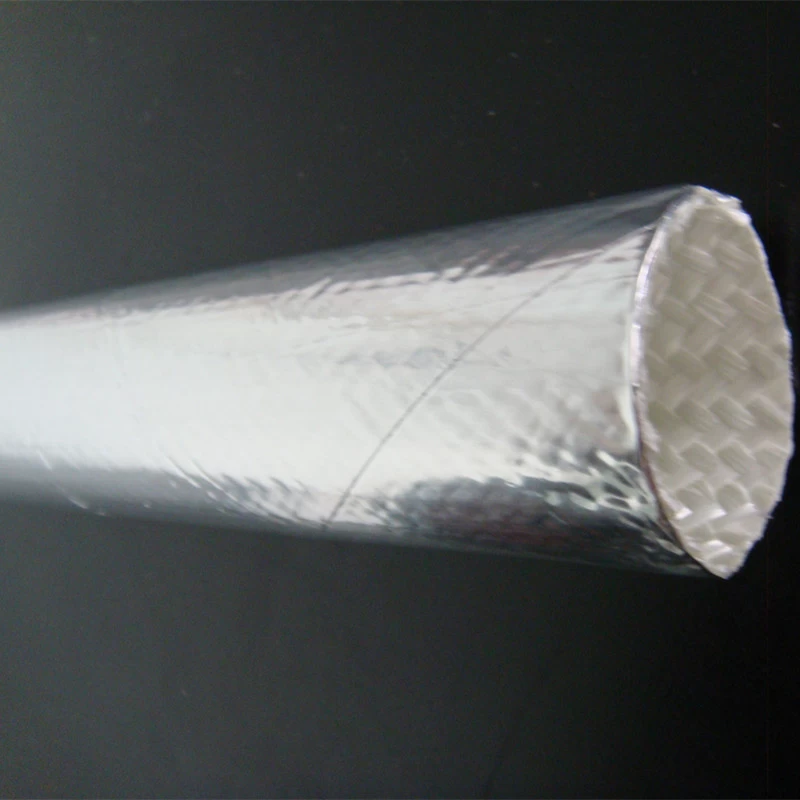

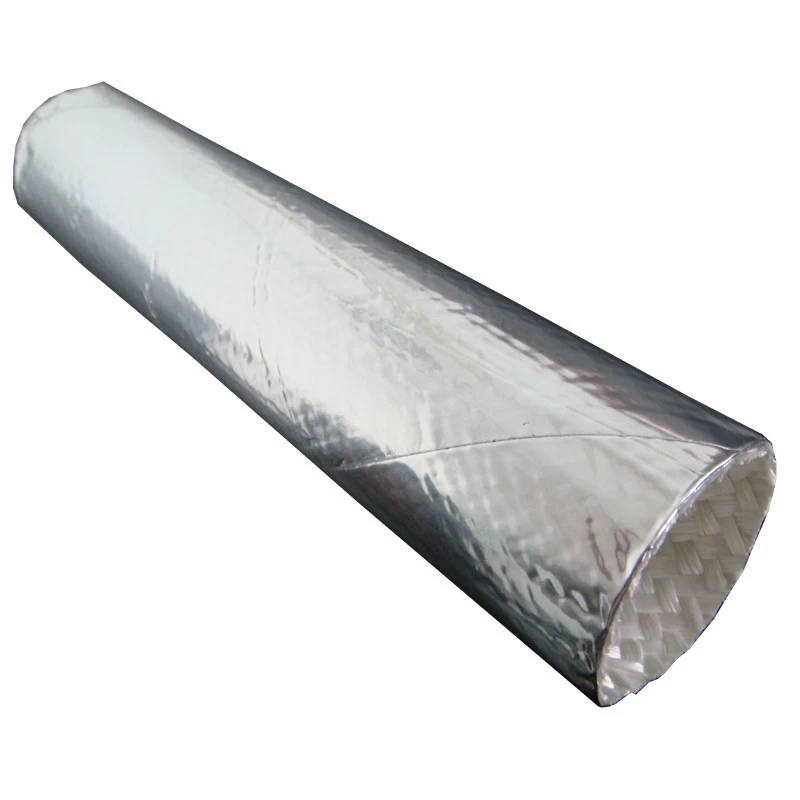

Aluminum Coated Fiberglass Heat Reflective Sleeve Img
