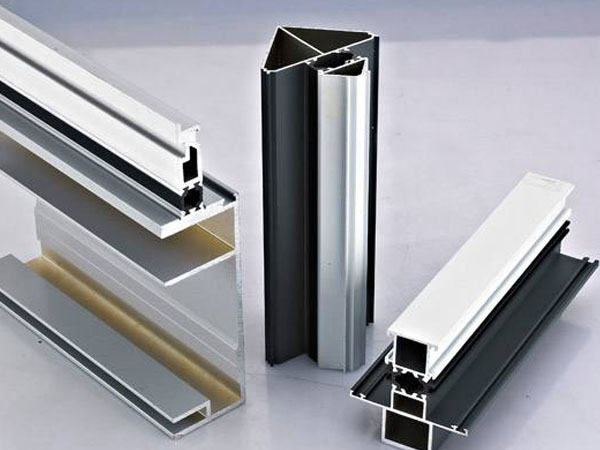

Aluminum corner and channel profile

Aluminum corner profile

The Fastest aluminum corner profile is widely apply to Industry and construction material.it is cheap, cost-effective. and sample free to you!



Aluminum Corner Profile Product Details:


Place of origin: Fujian, China (Mainland)      Grade:6000 Series

Temper: T3-T8                                                Application: Industry and construction material

Shape: Square                                                 Model Number:  FST-EP00011

Brand Name: FASTEST                                     Alloy: 6063/6061/6005


Surface treatment: Original; Anodized; electroplating; spray-paint;

Sand blasted Length: 10mm-6500mm

Thickness: 0.8mm-50mm

Machining: Cutting; Punching; Drilling; Milling; Bending; Welding; CNC etc.

Color: Silver; Bronze; Black; Gold; Blue; Grey; Champagne; red etc.

OEM/ODM: Acceptable

Packaging: Kraft paper+PE film; Bubble bag; Carton; Wooden Case; Metal case

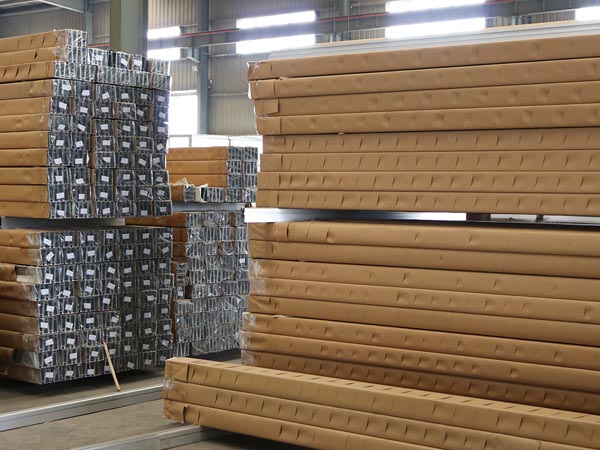

Packaging and Delivery:

Packaging Details

1. PP bag or PE wrapped for each separate profile, couple pieces packed in a bundle;

2. Carton,wooden case or steel rack is available;

3. Customized packing is acceptable.

Delivery Time: 15-25 days after order confirmed


Aluminum Corner Profile Advantage:

1: Extrusion tooling free!
2: Fast lead time!
3: Guaranteed quality!



1-Chemical Composition Of Aluminum Alloy



Alloy

Si

Mg

Fe

Cu

Mn

Zn

Cr

Ti

Impurity

  Al

Unit

Total

6063

0.2-0.6

0.45-0.9

<0.35

< 0.1

< 0.1

< 0.1

< 0.1

< 0.1

< 0.05

< 0.15

Surplus

6061

0.4-0.8

0.8-1.2

<0.7

0.15-0.4

< 0.15

< 0.25

0.04-0.35

< 0.15

< 0.05

< 0.15

Surplus



2- Chemical Properties Of Aluminum Alloy



Alloy

Temper

Thickness

Intensity streching resistance 6b (Mpa)

Intensity of bending 6p0.2(Mpa)

Stretching rate

T of tested samples (mm)

HV

HW

6063

T5

All

160

110

8

0.8

58

8

6061

T6

All

205

180

8

0.8

90

15
