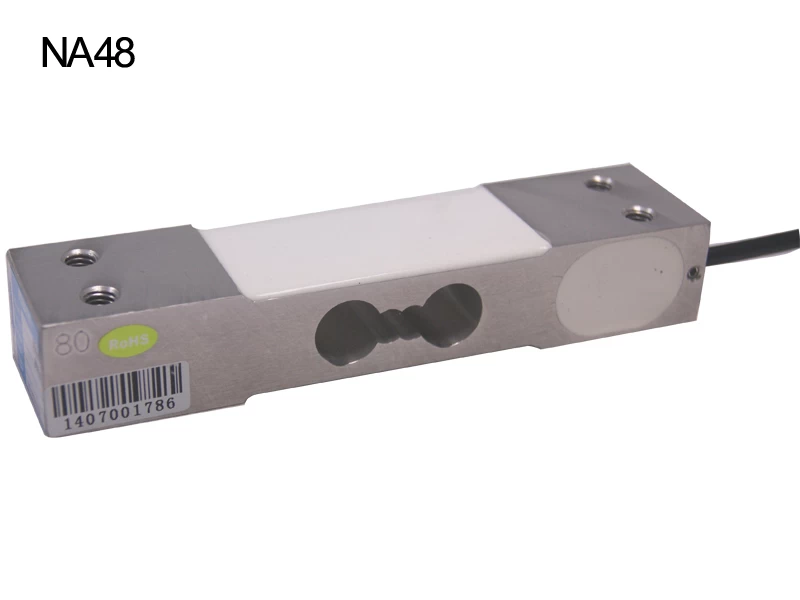

Aluminum single point Load Cell Low Profile Sensor NA48

NA48 is a low profile single ended parallel beam load cell with aluminum alloy material and surface anodized, suitable for a wide range of weighing scales. The strain gauge based weight sensor is potted and silicone sealed construction, protected to IP66.




  • Protection ClassPI66/PI67
  • Rated Output2.0mV/V
  • Dimension130*30*22mm
  • MaterialAluminum Alloy
  • Capacities60-200kg

Single Point Load Cell NA48 (60-200kg)

NA48 is a low profile single ended parallel beam load cell with aluminum alloy material and surface anodized, suitable for a wide range of weighing scales. The strain gauge based weight sensor is potted and silicone sealed construction, protected to IP66.



Key Features

Calibrated to national standards

Aluminum alloy construction

Easy to install


Usage & Applications
price computing scales
counting scales
weighing scales
retail scales

postal scales

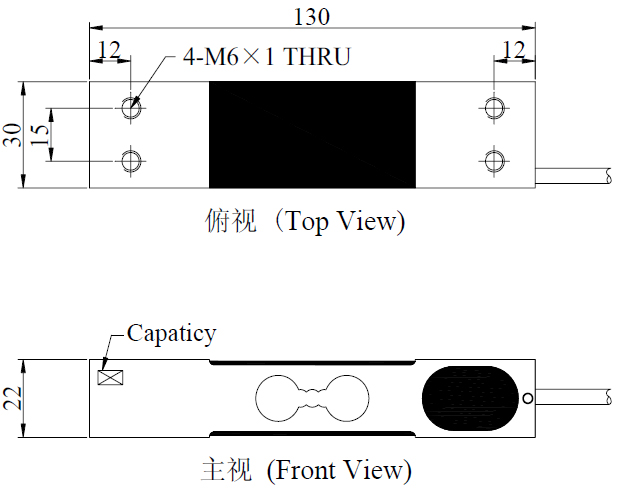

Dimension

mavin load cell NA48


NA48 Specification

Rated Capacities

60 , 80 , 100 , 120 , 200 (kg)

Rated Output

2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω1130±30 Ω

Output Impedance

350±5 Ω 1000±10 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ4×0.5m

Recommended Platform Size

350×350 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
