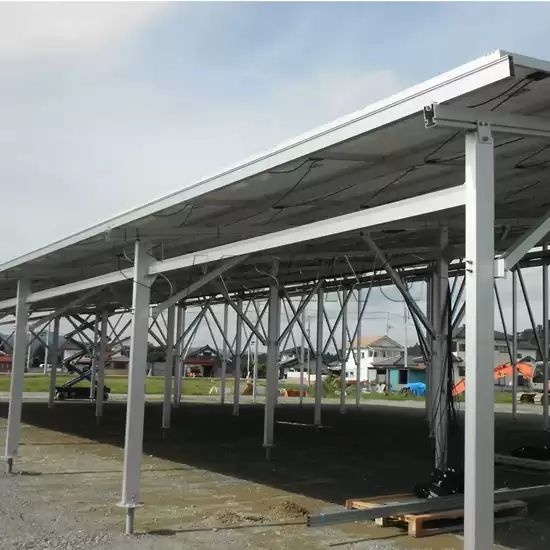

Waterproof Solar Carport Mounting System
Benefits of carport-mounted solar systems:
1.Solar carports are basically overhead canopies that are designed to cover parking areas and large areas in general. Carports are similar to ground mounted solar system, only they are usually raised much higher to accommodate shaded parking.
2.Our solar carport mounting system use the waterproof structrue and anodized surface treatment aluminum material bracktes.
3.Aluminum solar carport bracket is lightweight, easy transportation, high corrosion resistance and salt tolerance.
-

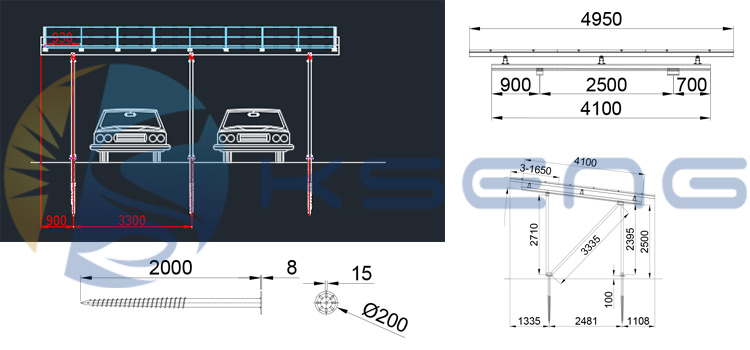

Solar panel size: 1650*992*40mm.
-
Array: 3*10(30pcs).
-
Wind speed: 34m/s.
-
Snow: 30cm (JIS C8955 2017).
-
The length of the ground screw pile is for reference only.
Material:
|
AL 6005-T5 High Strength Aluminum Alloy, Hot Dip Galvanizing Q235B
|
|
Foundation:
|
Ground Screws
|
Standard:
|
JISC8955-2017 Design Guide on Structures for Photovoltaic Array
|
Certification:
|
ISO9001/CE/SGS/UL etc.
|
Surface Treatment:
|
Anodized
|
Wind Load:
|
60m/s
|
Snow Load:
|
1.4kn.m2
|
Warranty:
|
10 Years
|
Service Life:
|
25 Years
|
|
Other:
|
Waterproof Structure
|
