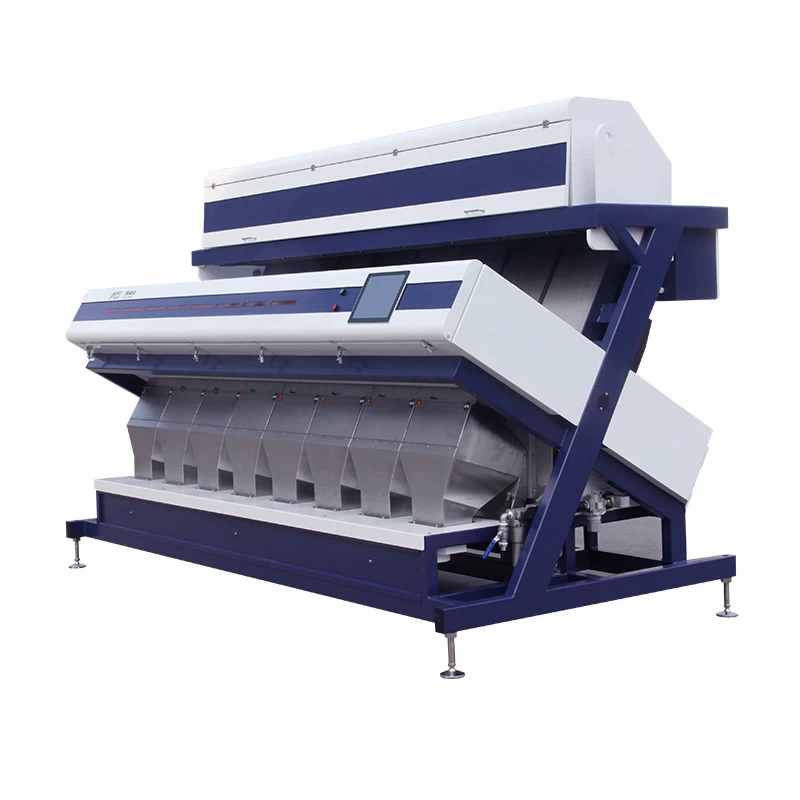

AMD ZK Series rice color sorter

380mm Supper width chute rice color sorter

Every chute has 80 channels



ZK series intelligent rice color sorting machine

  •  Using the most advanced Fourier infrared spectroscopy technology and neural network algorithm in the industry to carry out comprehensive and accurate analysis of the materials to be analyzed, to ensure that each material can get the most perfect solution.
  • The imported high-speed infrared sensor is used to develop a domestic first-class multi-spectral infrared camera, real-time dynamic monitoring of materials.
  • Combined with visible light full-color camera technology, to achieve full-band material analysis, to achieve high-precision color sorting of materials.
  • Equipped with domestic first-class light source lighting technology, innovative concentrated high-brightness full-band light source, which can comprehensively improve the color sorting precision of dark materials.
  • Accurate and accurate material information is guaranteed with stable and uniform characteristics.
  • High-speed near-infrared sensor and automatic image calibration algorithm technology for real-time dynamic monitoring and dynamic image calibration, which greatly improves the stability and anti-interference performance of the machine.


Machine parameter

The main specifications and parameters of the AMD brand new generation RZ series intelligent rice color sorting machine are as follows (take the rice containing 0.5% contanimation as an example, the specific indicators will change due to different rice types and impurities).


Model

ZK320-B

ZK400-B

ZK480-B

Ejector Number

320

400

480

Capacity(t/h)

4-8

4.5-9

5-10

Carry-over ratio

80:1

80:1

80:1

Accuracy(%)

﹥99.9%

﹥99.9%

﹥99.9%

Voltage(v/Hz)

AC220/50

AC220/50

AC220/50

Power(Kw)

1.3-2.2

1.7-2.8

1.9-3.2

Weight(Kg)

1030

1220

1350

Dimension(mm)

2094*1725*2200

2484*1725*2200

2874*1725*2200


Model

ZK560-B

ZK640-B

ZK800-B

Ejector Number

560

640

800

Capacity(t/h)

6-12

7-16

9-18

Carry-over ratio

80:1

80:1

80:1

Accuracy(%)

﹥99.9%

﹥99.9%

﹥99.9%

Voltage(v/Hz)

AC220/50

AC220/50

AC220/50

Power(Kw)

2.2-3.7

2.5-4.2

2.9-4.8

Weight(Kg)

1510

1850

2190

Dimension(mm)

3264*1725*2200

3654*1725*2200

4434*1725*2200


  • Multi-type chutes with anodizing treatment to ensure smooth material flow,improve machine sorting performance,meet different requirement from customers.
  • High efficient and durable LED lamps ensures long life span of the sorter. True RGB controllable background assembly applied to cleaning and grading of muitiple materials.
  • Compound image algorthm realizes intelligent and accurate identification from color ,texture,shape,size and material.
  • High definition low distortion lens “copys” the real information into machine visual system. 5400 px RGB trichromatic CCD sensor & Infrared CCD sensor analyze full spetrum from the material.
  • High-end imported INTEL ALTERA “Cyclone” IV generation FGPA chips bring huge speed capacity of data processing and exchange max as100 mega byte per second.
  • 12” LCD touch screen and Windows based system equipped with most simplified interface and remote control and mobile devices control Only for easy operation.
  • Compact Magnev high frequency ejectors ensures the quality of accepted products after sorting,reduce the rate of good kernel inside of rejected products and   consumption of compressor.
  • Food grade water proof vacuum inner package and seaworthy wooden box ensure safety of the cagos delivery from whatever tremendous change of sea shipping conditions meet.




Design and offer various type of sorter according to different customers' requirement and material features,to achieve the optimal sorting performance.



Applications

This rice color sorter can sort red rice, black rice, long grain rice, steamed rice, and reject small disease spots, light yellow, belly white, core white, pin black etc...

Visible light machine can easily remove glass, desiccant, transparent plastic, variegated plastic...


Invisible light machine can reject malignant impurities Glass, desiccant, transparent plastic, variegated plastic, crystals, microplastic particles, etc.
