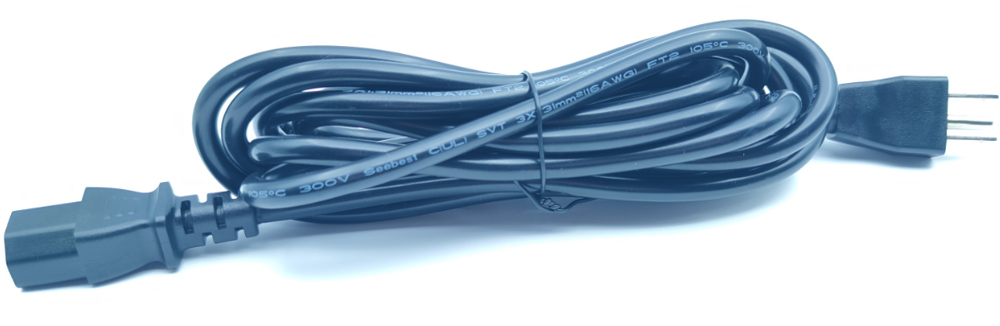

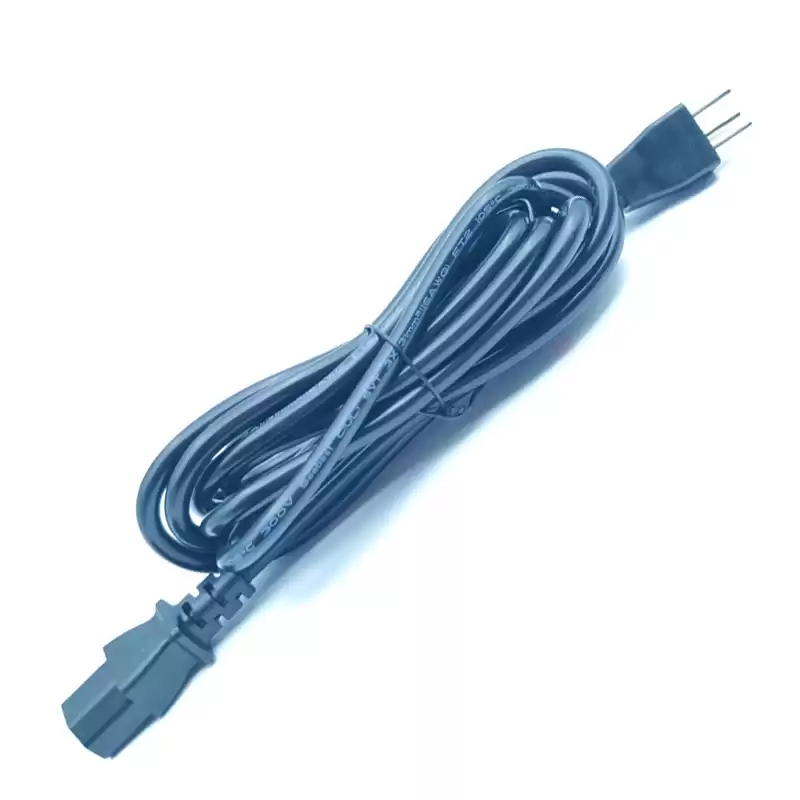

American UL AC Power Cord NEMA 5-15P Plug to IEC 60320 C13 Connector
PRODUCTS FEATURES
-

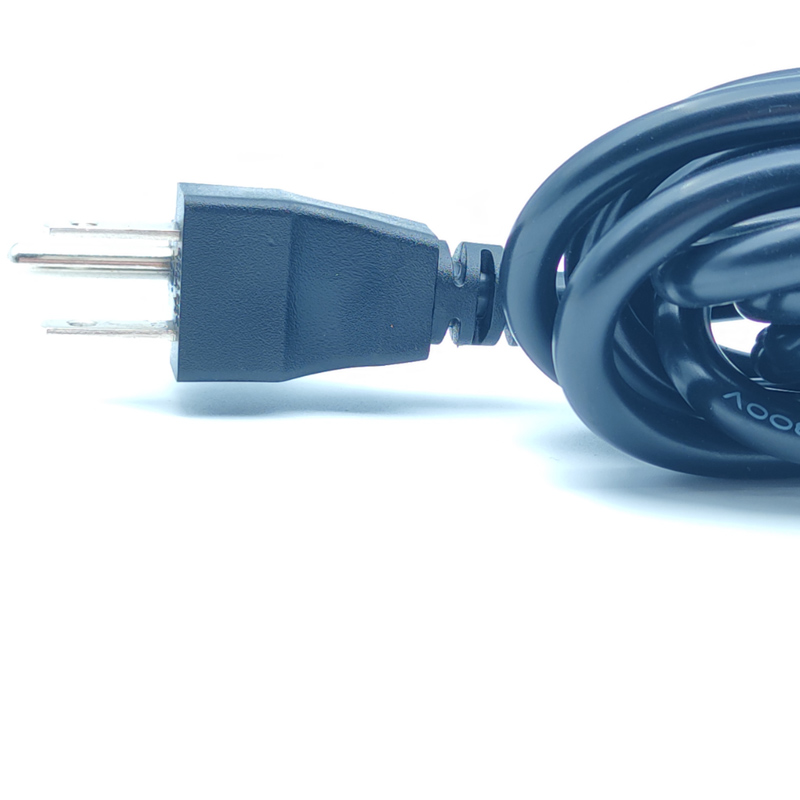

Plug type: NEMA 5-15P Plug
-
Standard: UL817
-
Approvals: UL
-
Electricity: 10A/13A/15A, 125V
-
Number of Poles and Wires: 3 Poles 3 Wires
-
Cable length: 1.0m, 1.5m, 1.8m, 2m, 3m or custom length
-

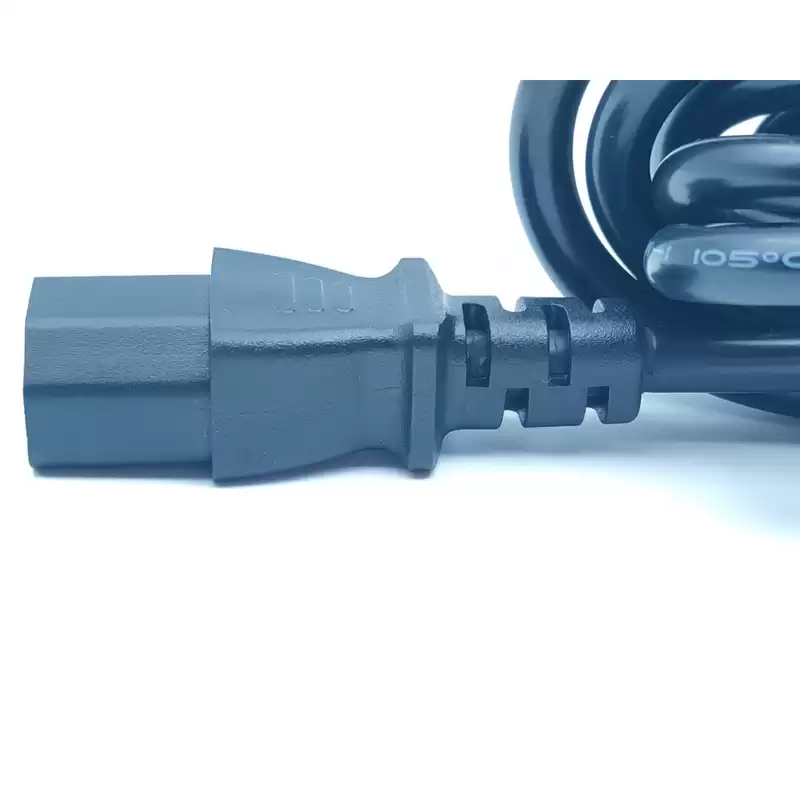

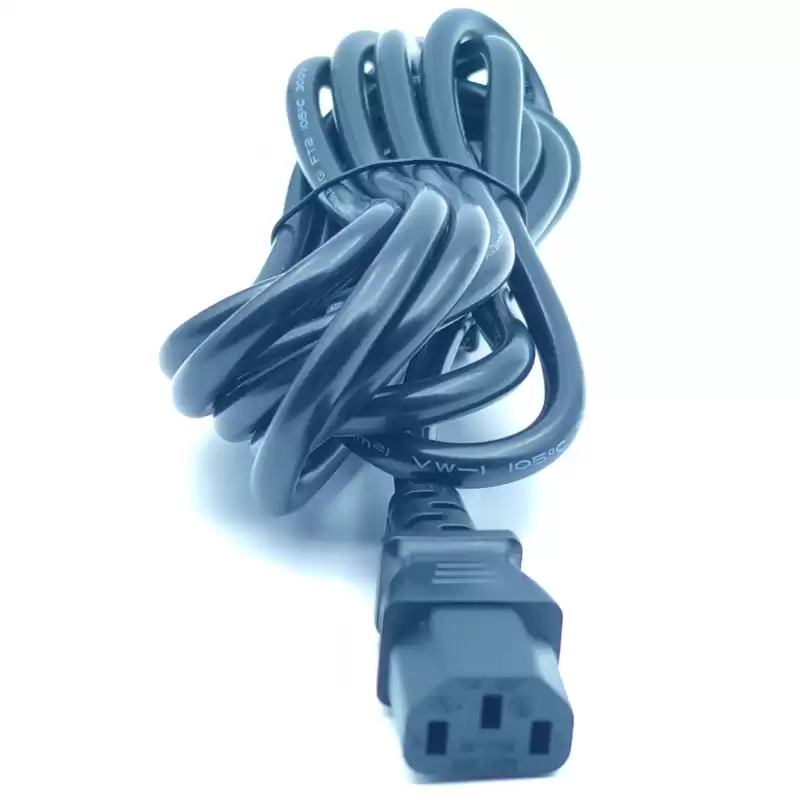

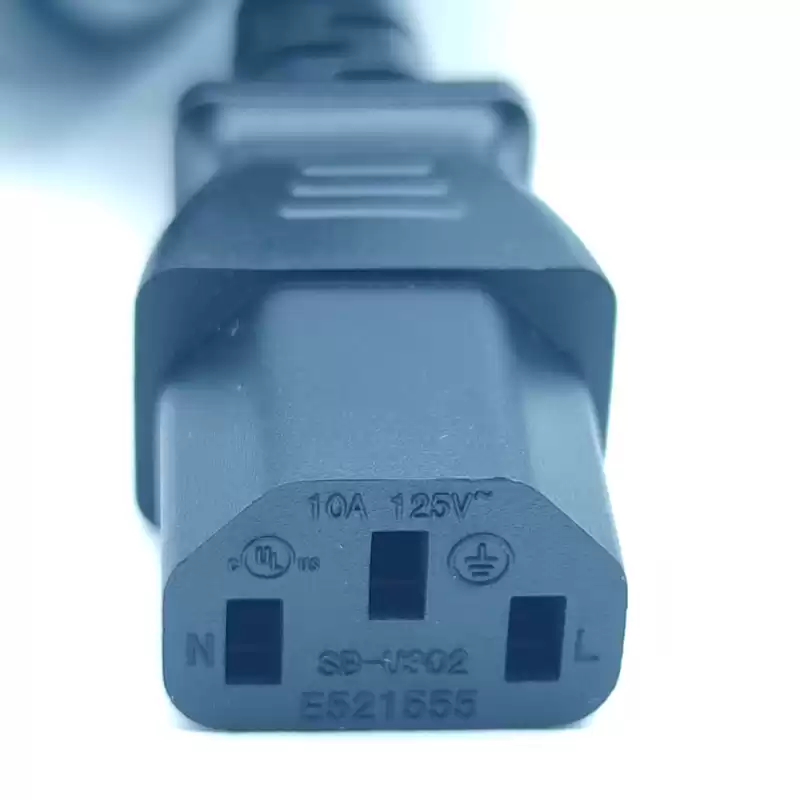

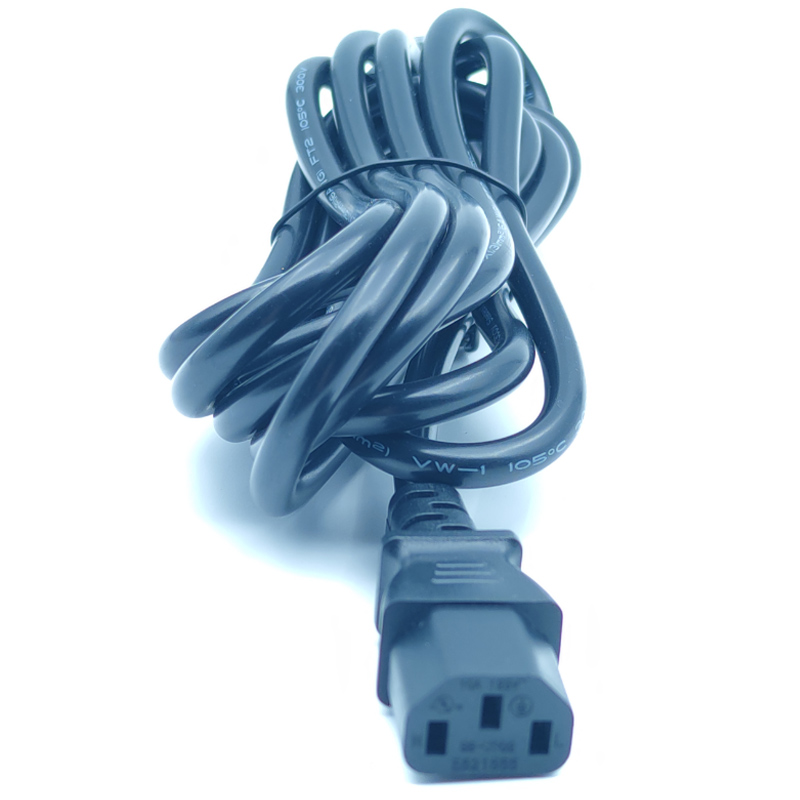

End: IEC 60320 C13
-
Color: Black is standard or custom color
-
Outer Mold Material: PVC
-
Plug Insert Material: PBT, ABS
-
Blade Material: Nickel Coated Brass
-
Wire Sheath Material: PVC
-
Environmental Certifications: RoHS, REACH
PRODUCTS APPLICATION

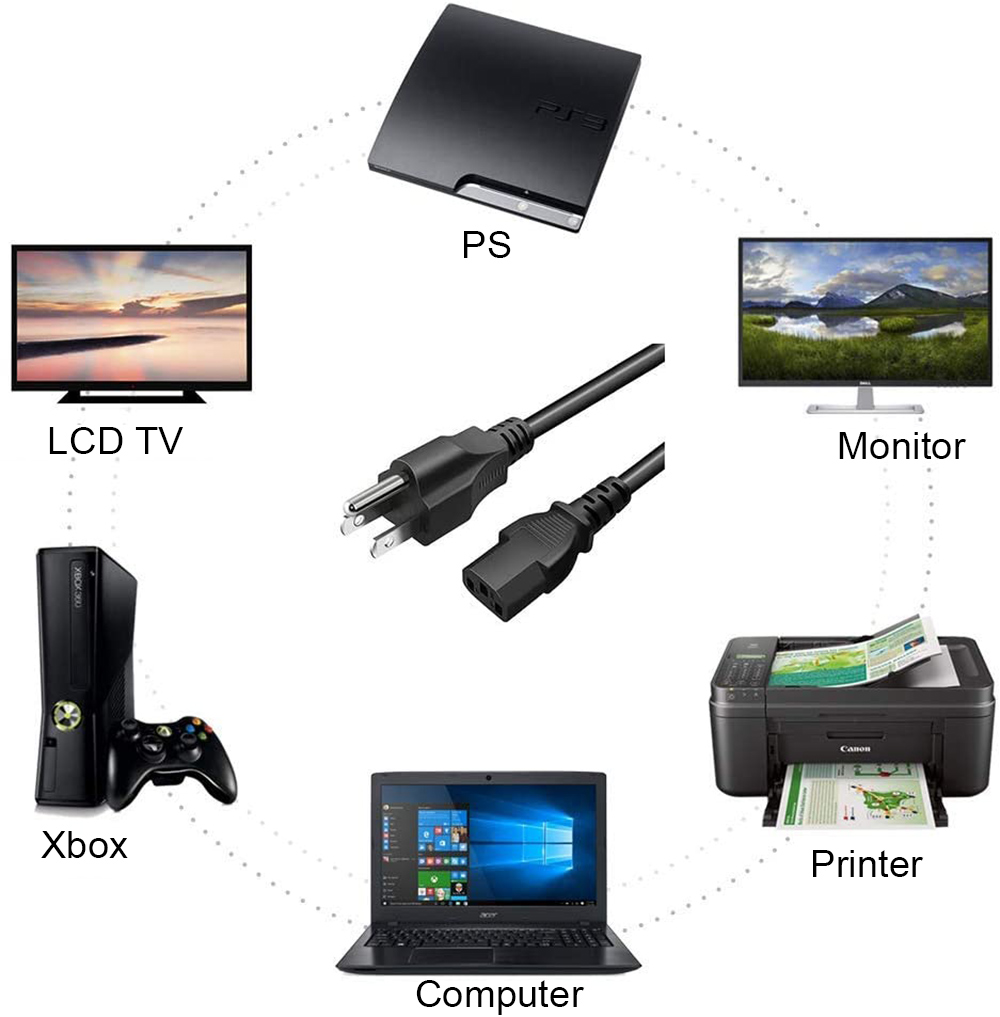

NEMA 5-15P are three prong male plugs used in most households and businesses in North America to supply power to devices. These plugs are rated at 15 amps on a 14-18AWG cord and up to 125V AC. The AC power cord is mainly used in desktop PCs, monitors, printers, scanners and other devices that use the 3 pin shroud power connector.
PRODUCTS SPECIFICATION
|
Plug:
|
NEMA 5-15P
|
|
Approval:
|
UL
|
|
Rated Voltage:
|
125V
|
|
Rated Current:
|
10A/13A/15A
|
|
Number of Poles and Wires:
|
3 Poles 3 Wires
|
|
Cable End Termination:
|
C13
|
|
Outer Mold Material:
|
PVC
|
|
Plug Insert Material:
|
PBT, ABS
|
|
Blade Material:
|
Nickel coated brass
|
|
Conductor:
|
Stranded bare copper or tinned copper
|
|
Cable Insulation Material:
|
PVC
|
|
Cable Sheath Material:
|
PVC
|
|
Cable Length:
|
1.0m, 1.5m, 1.8m, 2m, 3m or custom length
is available
|
|
Color:
|
Black is standard and custom color is
available
|
|
Environment Protection:
|
RoHS, REACH
|
Suitable Cable Type
|
Cord AWG
|
Cord Type
|
Rated Current/Voltage
|
|
18AWG
|
SVT, SPT-1, SPT-2, SJT, SJTW
|
10A/125V
|
|
16AWG
|
SJT, SJTW, SVT, SPT-2
|
13A/125V
|
|
14AWG
|
SJT, SJTW
|
15A/125V
|
