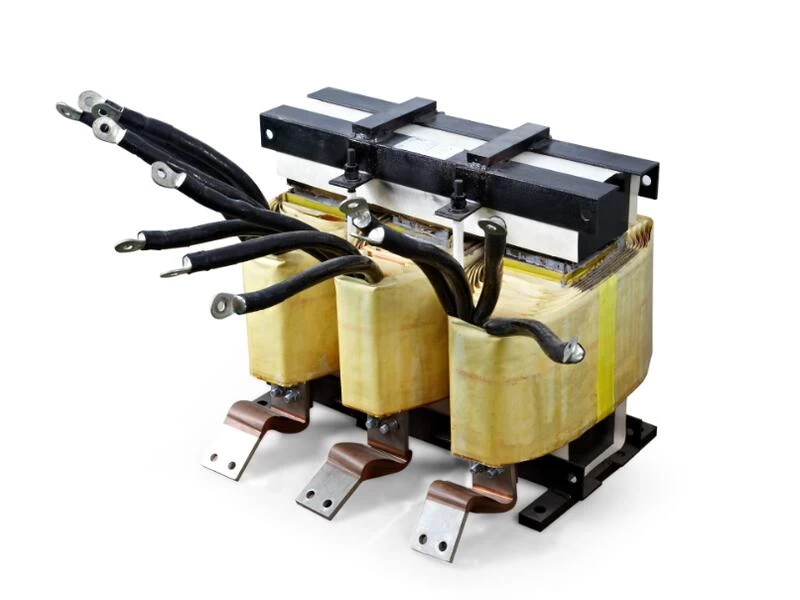

SAT Amorphous cast resin three phase choke

SAT three phase amorphous transformer choke is used in almost all fields of electrical power system such as power generation, transmission and distribution sectors, the industrial sectors are supplied or connected with three phase system. Therefore, to step-up (or increase) or step-down (or decrease) the voltages in the three phase systems, three phase transformers are used. As compared with the silicon steel or ferrite power core transformer, SAT three phase amorphous transformer choke shows numerous advantages with amorphous transformers such as smaller and lighter to construct for the same power handling capacity, better operating characteristics, etc.

Advantages of Three Phase Transformers

1.Easy to install and maintain.
2.To provide the same KVA, amorphous material required is very less compared to ferrite and silicon steel.
3.Lighter and smaller.
4.It requires less space to install.
5.Higher efficiency and permeability.
6.Lower cost compared with ferrite and silicon steel ones.
7.Transportation is easy and cost is less.

Tips

1. The design of mechanical supports can be provided with specifications.
2. By leaving a message below you can provide us with the basic data for the correct sizing of the amorphous inductors.
