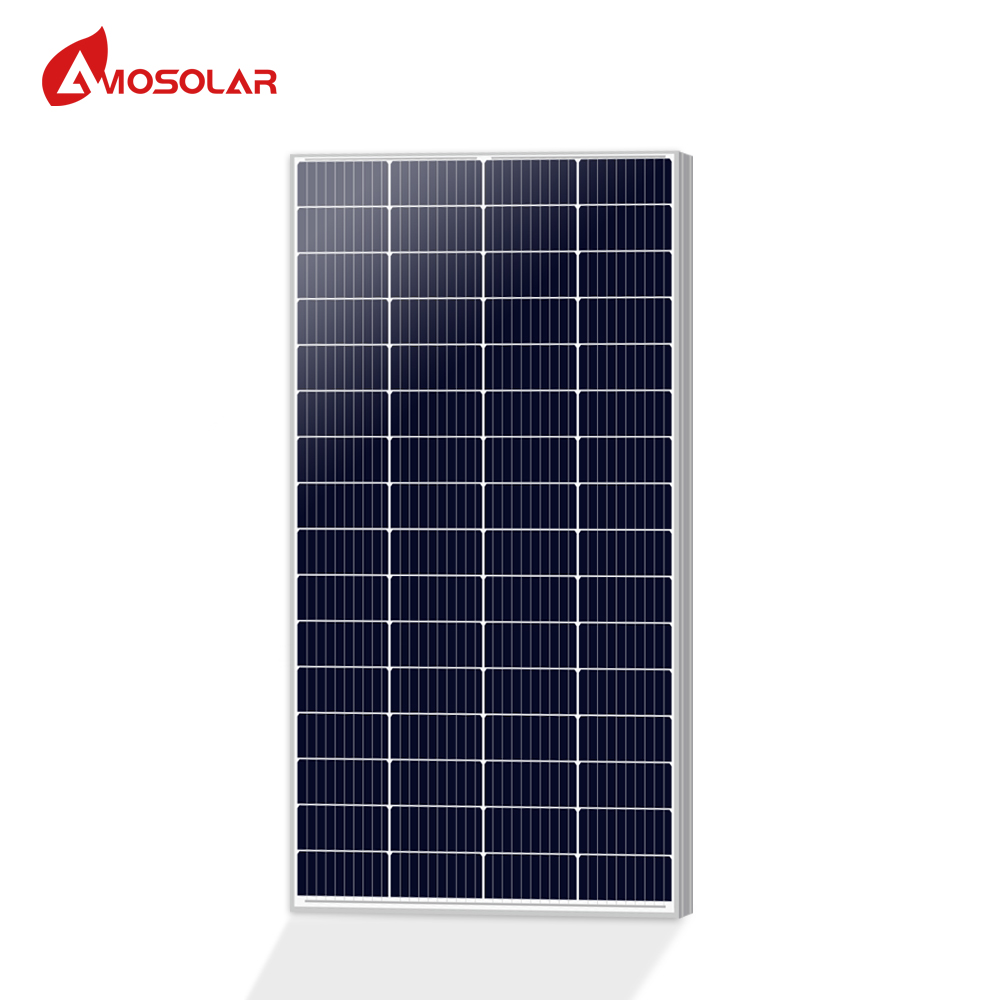

200W Small Monocrystalline PV Panel Chinese Manufactory :
This 200 Watt solar panel can be used for many different applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. It guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa). A corrosion-resistant aluminum frame allows for extended outdoor use with a typical lifespan of decades. Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance. IP67 rated junction box provides complete protection against environmental particles and low-pressure water jets.
|
Model
|
AS200M6-64
|
|
Rated Maximum Power at STC
|
200W
|
|
Open Circuit Voltage (Voc)
|
21.98
|
|
Maximum Power Voltage (Vmp)
|
11.28
|
|
Short Circuit Current (Isc)
|
19.74
|
|
Maximum Power Current (Imp)
|
10.13
|
|
PV Module Efficiency (%)
|
19.01
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|

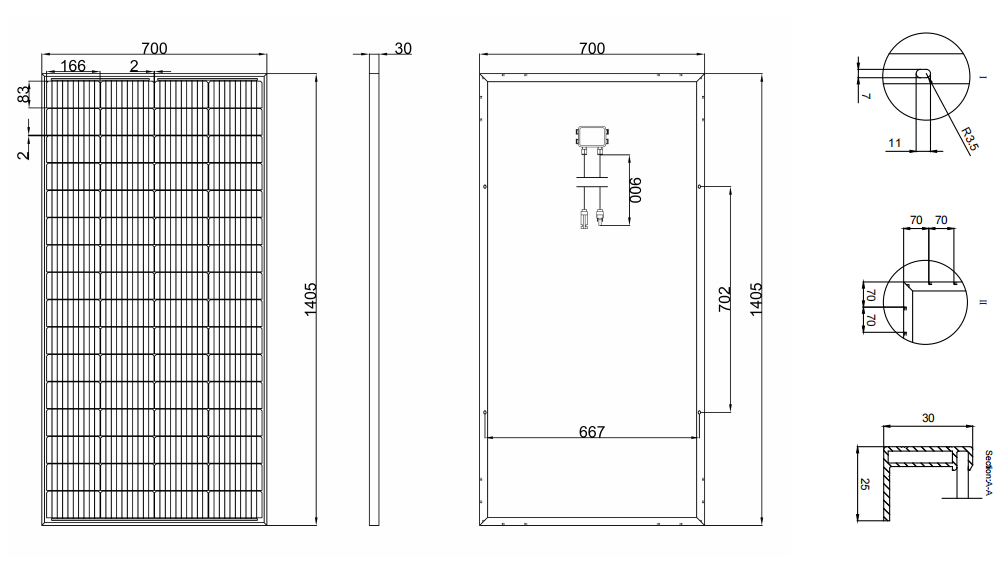

Mechanical Parameters
Layout : 64( 4 × 16 ）
Junction Box : Split junction box, IP67
Weight: 11.67KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)
PV Size: 1405x700x30mm
Packaging: 36 pcs / pallet
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
