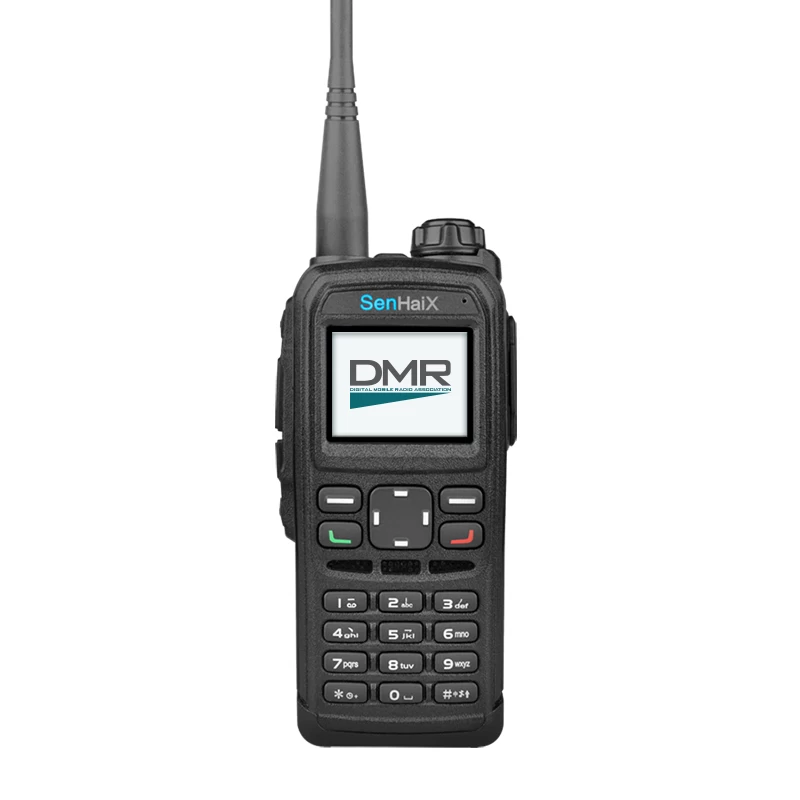

Product Name: Analog and DMR Two Way Radio
Technical Specifications
|
General Specification
|
|
Model No.
|
6300D
|
|
Frequency Range
|
UHF 400-520MHZ
|
|
Operated Voltage
|
DC7.4-8.4V
|
|
Battery Capacity
|
3000mAh
|
|
Storage Channel
|
256CH
|
|
Dimension
|
130x65x45mm (excluding antenna)
|
|
Weight
|
340g
|
|
Transmitter
|
|
Channel Spacing
|
12.5KHz/25KHz/6.25KHz(DPMR)
|
|
Frequency Stability(-20℃, +60℃, +25℃)
|
±1.5ppm
|
|
Output Power
|
L: 1W H: 6W
|
|
Modulation Limited
|
±2.5KHz @ 12.5KHz
|
|
±5.0KHz@ 25KHz
|
|
FM hum and noise
|
-40dB @ 12.5KHz
|
|
-45dB @ 12.5KHz
|
|
Conducted/radiated emission
|
-36dBm ＜ 1GHz
|
|
-30dBm ＜ 1GHz & ＜4GHz
|
|
Adjacent Channel Power
|
-60dB @ 12.5KHz
|
|
-65dB @ 12.5KHz
|
|
Audio Response
|
+1, -3dbB
|
|
Adudio Distortion
|
3%
|
|
FM Modulation
|
12.5KHz: 11KΦF3E
|
|
25KHz: 16KΦF3E
|
|
4FSK Digital Modulation
|
12.5KHz only data: 7K60FXD
|
|
12.5KHz data and audio:7K60FXE
|
|
Digital Vocoder Type
|
AMBE(optional)
|
|
Digital Agreenment
|
DMR
|
|
Receiver
|
|
Channel Spacing
|
12.5KHz/25KHz/6.25KHz(DPMR)
|
|
Frequency Stability(-20℃, +60℃, +25℃)
|
±1.5ppm
|
|
Analog Sensibility
|
0.25μV(12dB SINAD)
|
|
0.3μV(20dB SINAD)
|
|
Digital Sensibility
|
5% BER: 0.3μV
|
|
Intermodulation
|
65 dB
|
|
Adjacent Channel Selectivity
|
60 dB @ 12.5KHz
|
|
60 dB @ 25KHz
|
|
Spurious Rejection
|
65dB
|
|
Rated Audio
|
1.2W
|
|
Audio Distortion @ Rated Audio
|
0.03
|
|
FM hum and noise
|
-40dB @ 12.5KHz
|
|
-45dB @ 25KHz
|
|
Adudio Response
|
+1, -3dbB
|
|
Spurious Emiossion
|
-57 dBm
|
