Overview

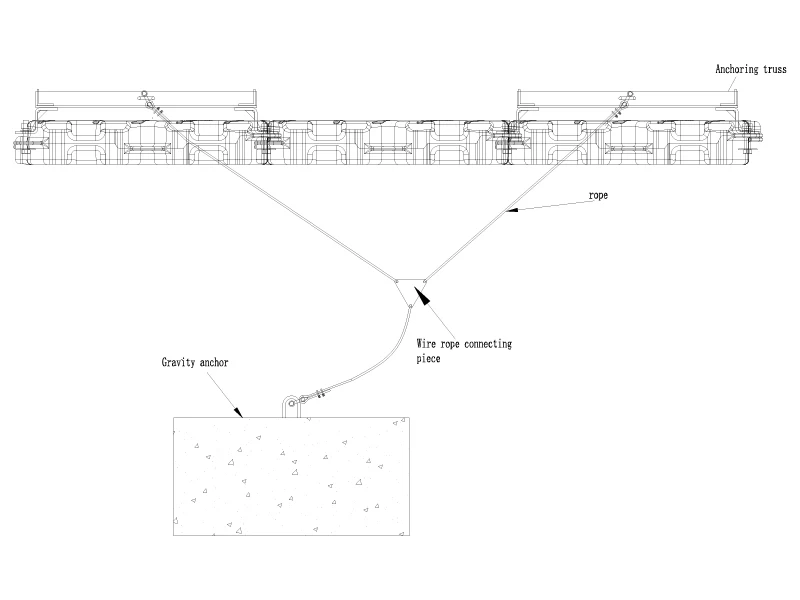

MRac Floating mounting system will be fixed by anchoring
system. Normally we choose the anchor point under the water, but also can
choose the anchor point on the water front. The procedure of installing
anchoring system will be designed in accordance with the condition of water
area.
Features

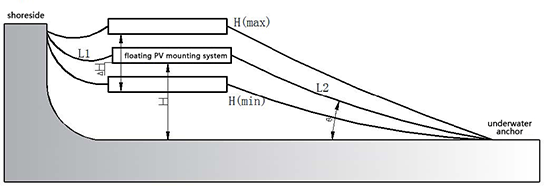

•When water level variation less than 3 meters, adopt
sunken anchor or stone with rope and add elastic spring to fix it
•When water level variation more than 3 meters, adopt
sunken anchor or stone with capstan rope to fix it
Counterweight
cement block

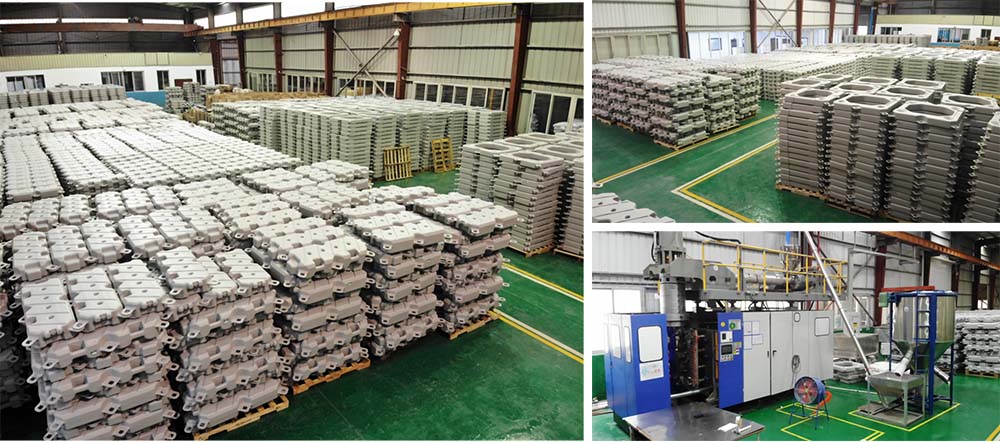

Standardized Floater Manufacturing Factory
Development History of Floating System
|
Technical Parameter
|
|
Installation Site
|
Lake, Reservoir
|
|
Product Name
|
MRac Floating PV Mounting System G4S
|
|
Tilt Angle
|
10° / 15°
|
|
Wind Load
|
51m/s
|
|
Snow Load
|
1KN/㎡
|
|
Water Surface Clearance
|
330-350mm
|
|
Module Type
|
Frame or Double Glass
|
|
Panel Orientation
|
Landscape, Double Row In The Same/ Symmetrical Facing
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
HDPE
|
|
Fastener
|
Zinc-Nickel Alloy Electroplated Steel & HDPE
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Bearing Weight
|
Main floater70KG/㎡，Channel155KG/㎡
|
Technology Certification
