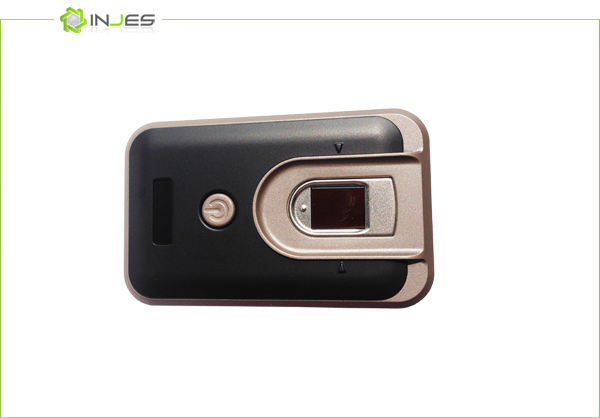

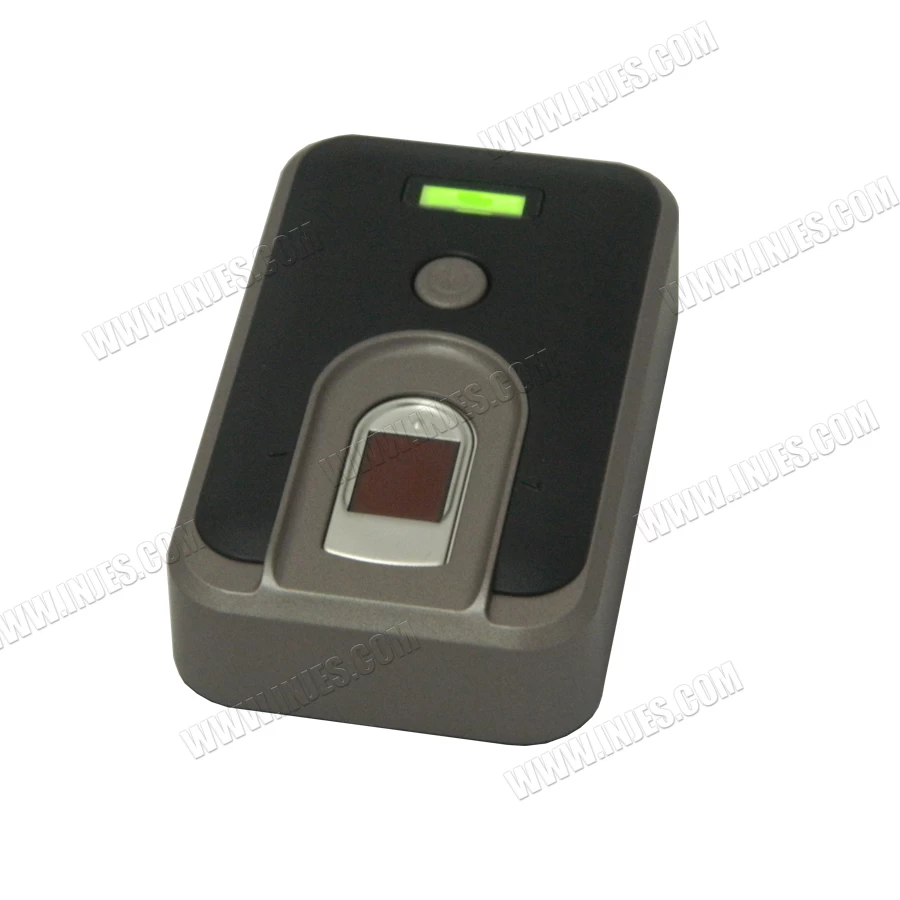

Product Name: Android Fingerprint Reader with Bluetooth and WIFI
Description:

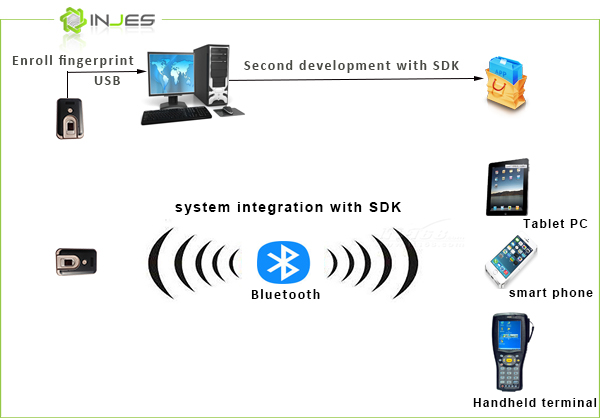

The OFS201 is a portable wireless fingerprint reader with bluetooth and WIFI connection. Bluetooth Fingerprint Scanner combines robust performance capacitive fingerprint sensor and a Bluetooth, WiFi ,USB engine into one device, can support Android, Windows os, can be worked with mobile phones, tablets, and laptops, computers that has Bluetooth, wifi, USB capabilities. OFS201 will be your best choice for system integration.
Want to get more Biometric Fingerprint Scanner product information, welcome to view more!
Features:
．High performance Capacitive sensor: 152 pixels × 200 pixels, recognition speed<0.2s
．Durable Fingerprint reader: larger than 1,000,000 touches
．Built in Li-ion Battery: portable handheld whole day
．Compatible with Windows XP, Windows 7, Windows 8, above Android2.2
．Excellent quality for dry wet or rough fingerprints
．High-quality images reference images no required
Specifications:
Sensor
|
Capacitive Sensor
|
Rosolution
|
363dpi(optional 500dpi)
|
Image size
|
10.64*14mm
|
Interface
|
USB, Bluetooth
|
Registration speed
|
<0.2s(via USB) <0.8s(via Bluetooth)
|
Power supply
|
5.0V+/-0.25v(USB power)
|
Operating system
|
windows2000,2003,XP,vista,win7,win8,above android 2.2
|
Dimension
|
79*49*32mm
|
Operating Temperature
|
-20 °C -55°C
|
Operating Humidity
|
10%-90%
|
Current
|
capture fingerprint: max 100mA
|
Idel mode
|
max 30mA
|
Suspend mode
|
<0.5mA
|
Gross Weight
|
0.3 KG
|
Introduction:
Configuration:
Package:
