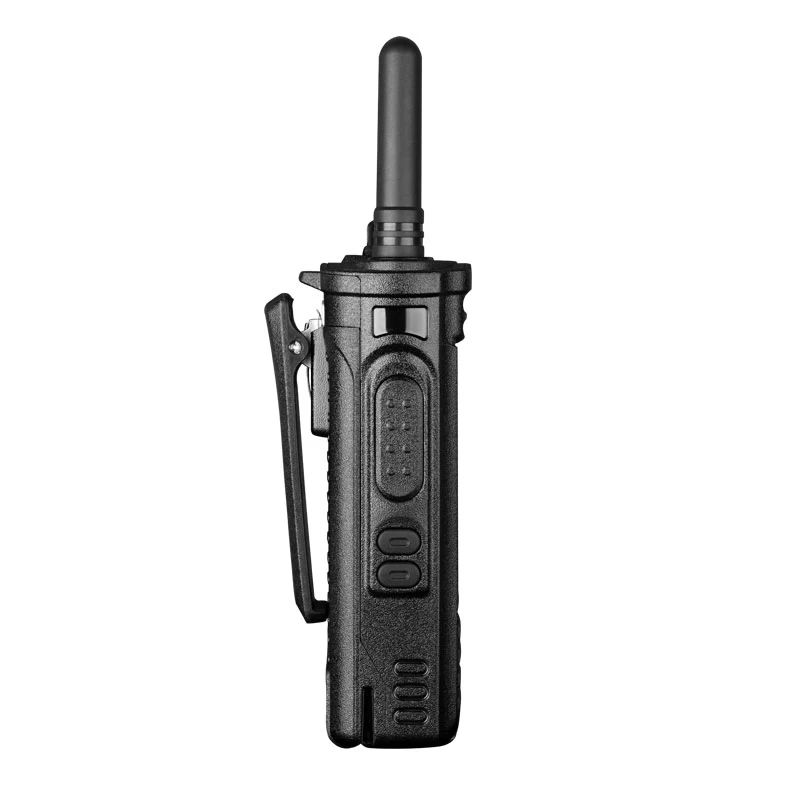

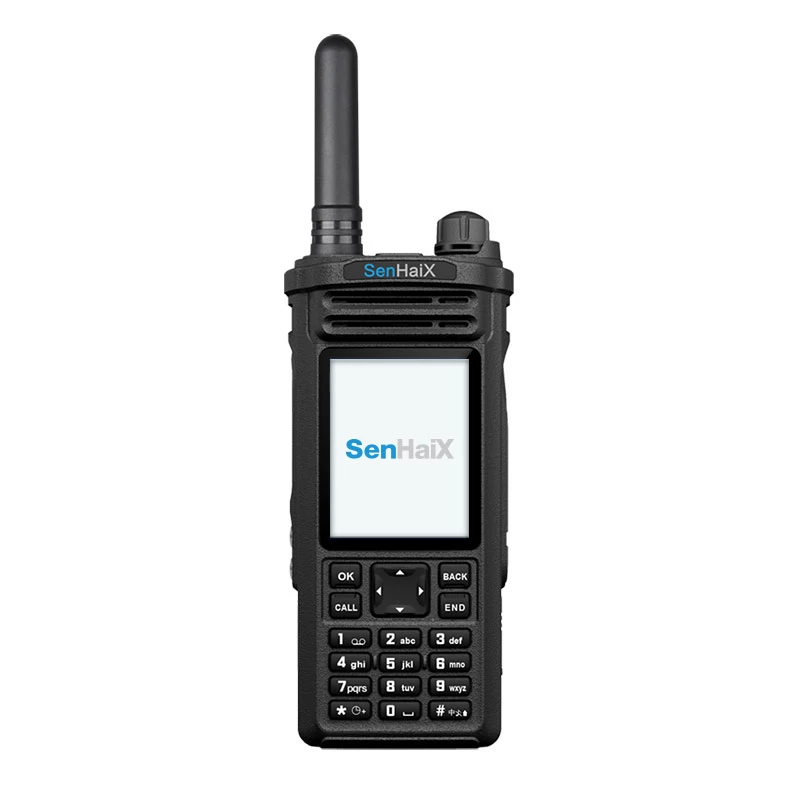

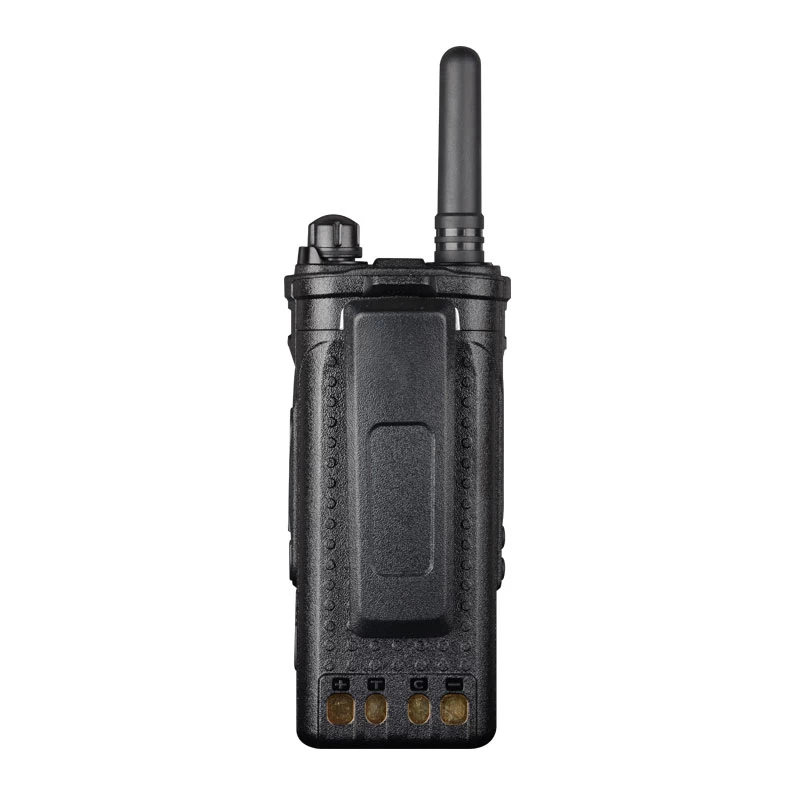

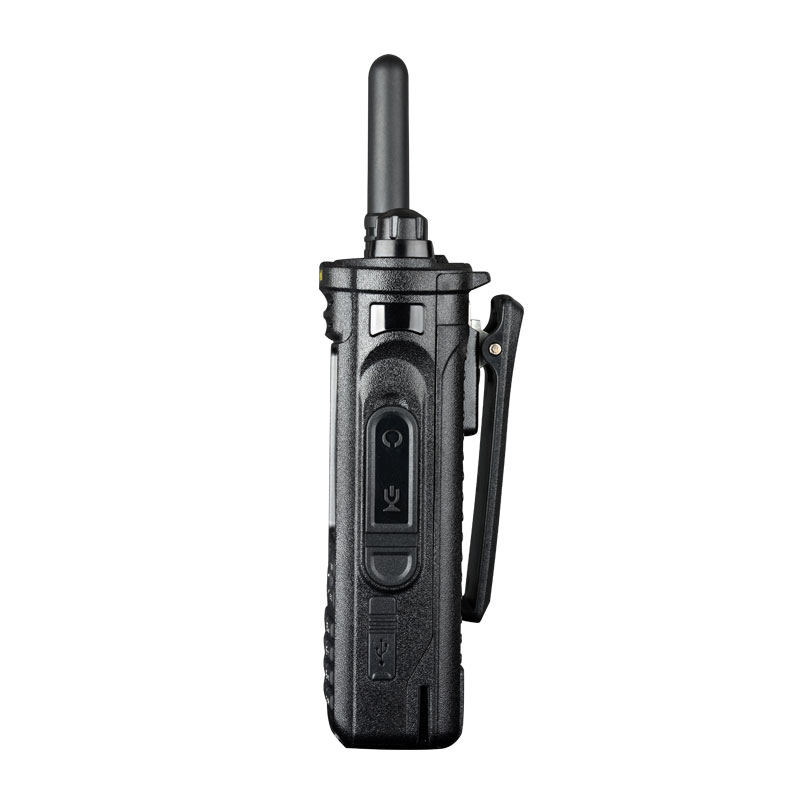

Product Name: Android IP Network SIM Card Handheld Radio
Technical Specifications
|
General Specification
|
|
Model No.
|
SPTT-69
|
|
Dimension
|
65x43x137mm(excluding antenna)
|
|
Weight
|
330g
|
|
Screen Size
|
2.4 inches, 240x320mm
|
|
Working Voltage
|
DC 3.6-4.2V
|
|
Working Temperature
|
-30℃ to +75℃
|
|
Battery Capacity
|
4800mAh(Li-polymer battery)
|
|
Platform Management
|
REAL PTT
|
|
Talk Range
|
Unlimited
|
|
RF Parameter
|
|
Frequency Range
|
GSM 850/1900MHz 900/1800MHz
|
|
WCDMA 850/1900MHz 900/2100MHz
|
|
Maximum Output Power
|
WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm)
|
GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm)
|
GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)
|
|
Receiving Sensitivity
|
WCDMA 2100: ≤-108dBm
|
|
WCDMA1900: ≤-109dBm
|
|
WCDMA900: ≤-109dBm
|
|
WCDMA850: ≤-109dBm
|
|
GSM850/900/1800/1900: ≤-107dBm
|
We are professional manufacturer of two way communications and SIM Card Handheld Radio. Search it now!

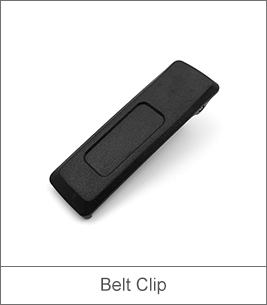

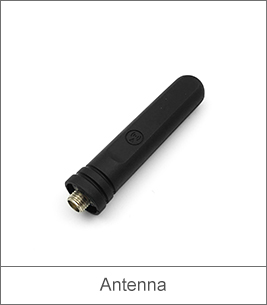

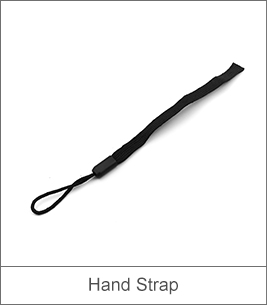

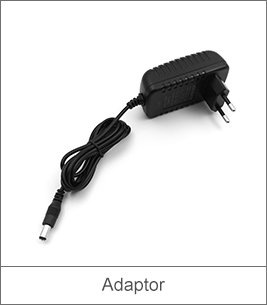

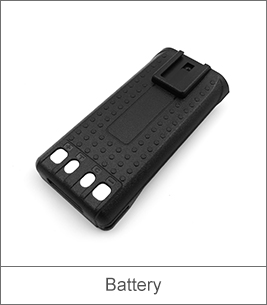

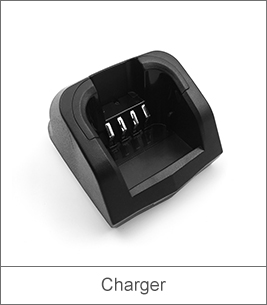

Standard Accessories
