System Configuration
|
|
Processor
|
ARM Cortex A53 Quad-core 64 bit 1.3GHz
|
|
OS
|
Android 6.0
|
|
Storage
|
8GB R0M+1GB RAM (16G+2G optional)
|
|
Extended Storage
|
Micro SD（UP to 64G )
|
|
Display
|
5.5 inch IPS(720 x 1280) high-definition screen
|
|
Camera
|
8.0M pixels AF with LED light automatic focusing
|
|
Touch screen
|
Industrial capacitive screen
|
|
Indicator
|
Vibration indicator / LED indicator / audio indicator
|
|
Battery
|
Built in detachable 3.7v 5200mAh Lithium Polymer Battery
|
|
Audio
|
Built-in microphone / speaker
|
|
Sensor
|
Vibration indicator / LED indicator / audio indicator
|
|
Structural Parameters
|
G-sensor
|
|
Interface
|
Micro USB/Extended Serial/Audio
|
|
Data Communication
|
3G Version: WCDMA :850 /900 /1900/2100M Hz
|
|
GSM: 850/900/1800/1900MHz
|
|
4G：LTE-FDD:B1/B3/B7/B8/B28 LTE-TDD:B38/B39/B40/B41
|
|
Wi -Fi
|
IEEE 802.11 a/b/g/n/ support 2.4G /5GHZ dual band
|
|
Bluetooth
|
Bluetooth 4.0
|
|
GPS
|
High performance GPS / AGPS navigation chip
|
|

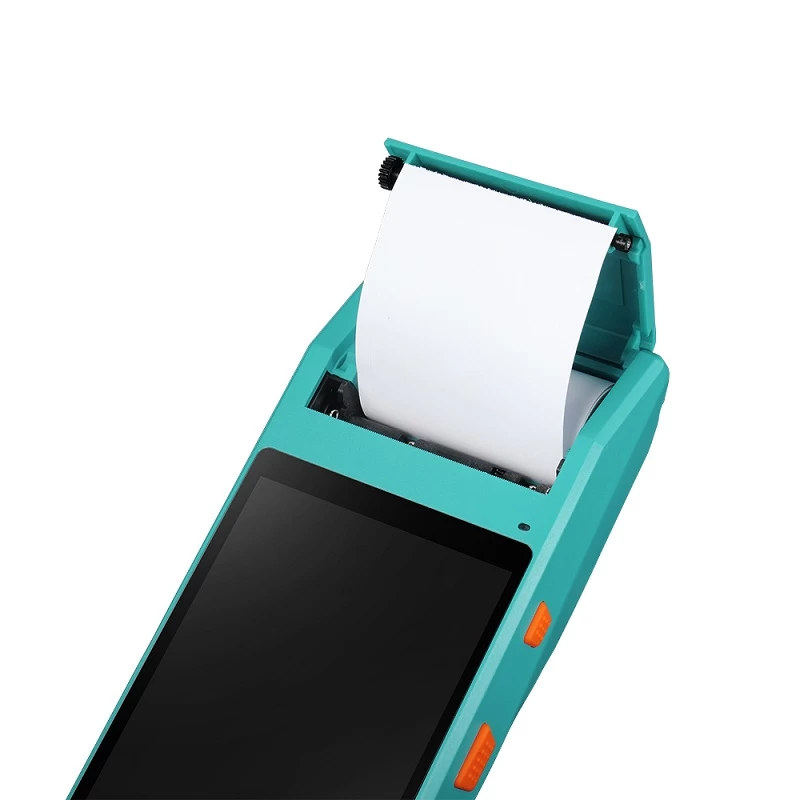

Printing
|
|
Printing method
|
Built in line thermal printer
|
|
Printing width
|
58 mm
|
|
Print media
|
Thermal printer and thermal label paper
|
|
Sensor
|
Black mark / out of paper / ove rheat ove r voltage protection Print type
|
|
Printing Type
|
Text / image/bar code/QR code
|
|
Default NFC/PSAM
|
|
Communication
|
ISO/IEC 14443A/B,ISO15693
|
|
Working frequency
|
13.56MHz
|
|
Type
|
Type1-4Tag/Mifare/Felica
|
|
PSAM card
|
IS0/IEC 7816 1-4
|
|
Contact card
|
IS0/IEC 7816 (Optional)
|
|
Physical
|
|
Size:(LxWxD)
|
210*80*42mm
|
|
Weight:
|
505g（including battery）
|
|
Environmental
|
|
Operating Temperature
|
-10 ° ~ 50 °C
|
|
Storage Temperature
|
-20 °~ 70 °C
|
|
Humidity
|
0 to 95% rel ative humidit y (non- condens ing) Drop
|
|
Development tools
|
Android SDK + JDK + Ec lipse
|
|
Others
|
|
Language
|
Java
|
|
Electros tatic discharge
|
± 15kV air discharge, 8kV direc t discharge
|
|
Specifications
|
Can bear impac t from 1.5m drop to cement floor
|
|
Protection class
|
IP65 /Explos ion-Proof ce rtificate
|
|
1D Barcode Scanner (Optional)
|
|
Scanning light
|
Vis ible laser diode s with a wavelength of 650 nm
|
|
Scanning speed
|
100 line / s
|
|
Scanning angle
|
± 50 °, ±65 ° (R/L , F/B)
|
|
Resolution
|
4mi
|
|
Decoding Capability
|
UPC-A, UPC-E, UPC-E1, EA N-1 3, EA N-8, ISBN/ ISSN, 39 code, 39 code (ASCII code), 32 code, Trioptic 39 code, Interle aved 25 code, indus tr y 25 code (Disc re te 2 of 5), Matrix 25 code,
Codabar (NW7), 128 code, UCC/EAN 128, ISBT1 28, 93 code, 11 code (USD-8), MSI /Ples s ey, UK/Ple s se y, China Pos tal, GS1 DataBar
|
|
2D Barcode Scanner (Optional)
|
|
Scanning light
|
2D image scanner Colle ction me thod CMOS
|
|
Scanning speed
|
1/60 s
|
|
Scanning angle
|
Corner 36 0 °， Ele vation angle ± 55 °， De c lination ± 55 °
|
|
Resolution
|
QR code ≥ 7.5mil， Barcode ≥ 5mil
|
|
Decoding type
|
Data Matri x , PDF4 17 ， Han lette r code in line with
inte rnational and dome s ti c gene ric 1D code standards : UPC-A , UPC-E, EA N-8 , EAN-1 3, ISBN , Code 128 , GS1 128, ISBT 128, Code 39, Code93,Code 11, Inte rle aved 2 of 5, Indus trial 2 of 5,Matrix 25, Standard 25, Codabar, MSI /MSI PLESSEY, GS1 DataBar etc .
|
|
2D optional
|
Support DPM (component identifi cation code )
|
|
RFID (Optional)
|
|
Working spectrum
|
902Mhz-928Mhz、865MHz-868MHz (Optional)
|
|
Air interface protocol
|
EPCglobal UHF Class 1 Gen 2/ISO 18000-6C
|
|
Label identification speed
|
>50 meters/second
|
|
Stable reading distance
|
1-2 meters (According to different label)
|
|
Storage
|
2000 units
|
|
Fingerprint (Optional)
|
|
Acquisition methods
|
Capacitive array semiconductor sensor plane pressing
|
|
Fingerprint sensor
|
FPC1020
|
|
Image Size
|
242*266pixel( Valid 192*192pixel)
|
|
Image pixel
|
508dpi
|
|
Storage
|
2000 units
|
