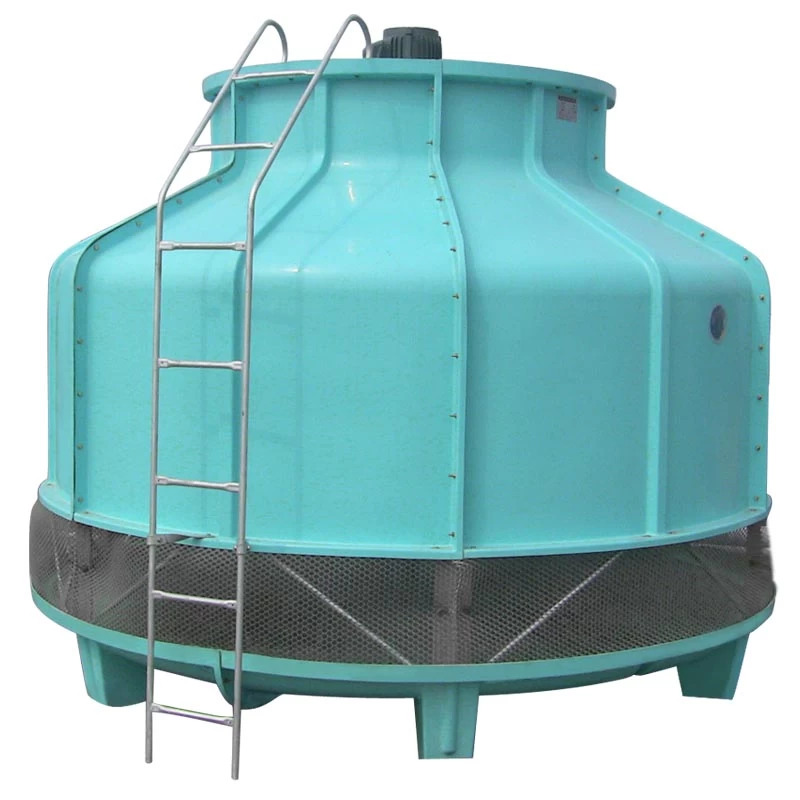

Anges Cooling Tower ST series ST-10

Anges cooling tower adopts high quality PVC heat radiation films and the designed shape of films effectively prolongs the contact time between high temperature water and the cooling air, therefore the cooling effect is excellent. The tower chassis, featuring anti-corrosion, strong ability of resistance of vile weather and beautiful appearance made of high strength glassfiber, and its rotation part and connection area is made of high quality raw materials, that greatly improves the service life and connection strength.

REMARKS:

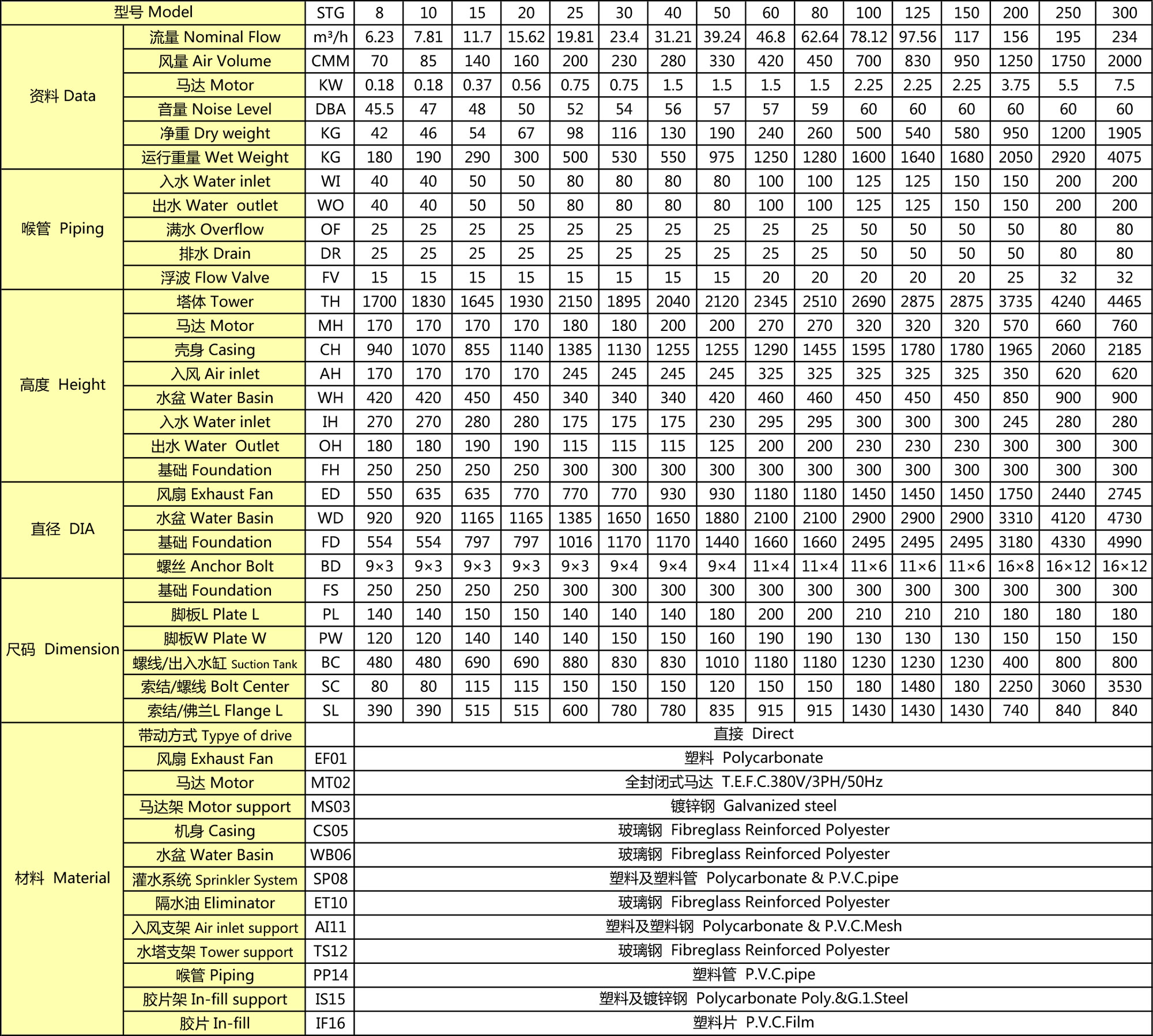

1.Parameter according to:

inlet temp-T1=37℃,

outlet temp-T2=32℃,

wet bulb temp-WBT=27℃,

temperature difference of cooling water-△Ts=5℃,

atmospher ic pressure-P=99400Pa.

2.The above parameters are also suitable for standard ST series, LKT/SS series and high temperature type.

3.We reserve the right to modify the above dimensions and parameters without further notice.
