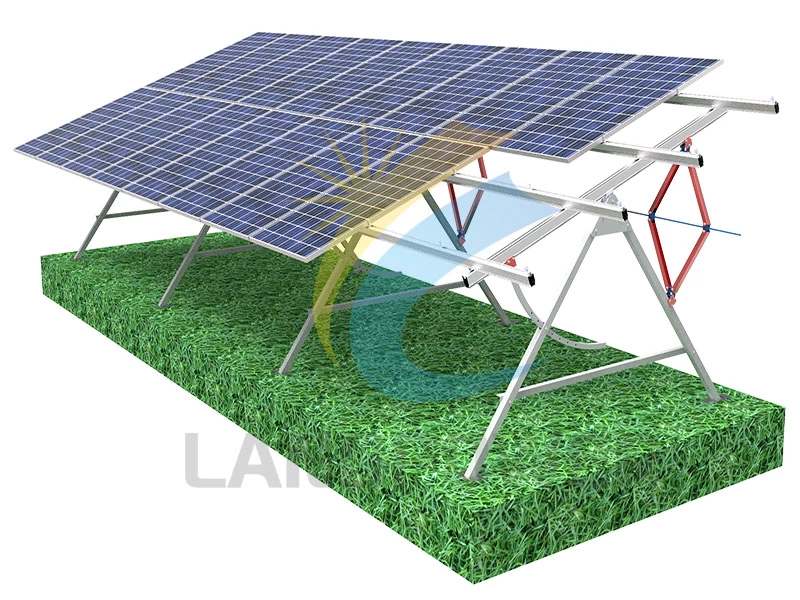

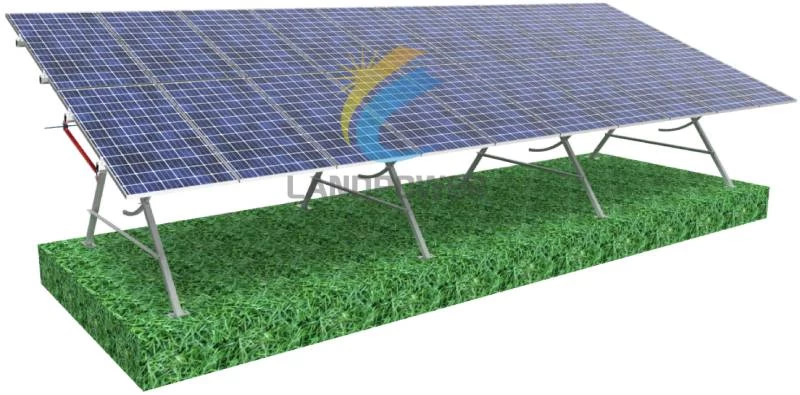

Angle Manually Adjustable Ground Mounting System is allow just one person to manually adjust tilt angle to certain degrees easily. It is easy and cost-effective ground mounting systems, just take 1-2 minutes to finish angle adjustment. This mounting systems can increase the power output up to 15%. directly increase your return on your investment.
Technical Information:
Install Site:Open Ground/Flat Roof
Panel Orientation:Landscape or Portrait
Adjustable Angle:0°~30°
Material of rack:AL6005-T5 and SUS304
Adjusting Torque:<10 N.m
Max Wind Load:60 m/s
Foundation:Concrete or Ground Screw
Standard:JIS C8955/C8956-2017,GB 50009-2012,AS/NZS 1170,Euro Code 8,DIN 1055,IBC 2006.
Advantages:
-
Competitive Prices Per Watt.
-
One Minute to Complete Angle Adjustment.
-
One Person Can Do The Tilt Angle Adjustment
-
Increase 15% Power Generation
-
Easily to Remove Snow
System Overview:

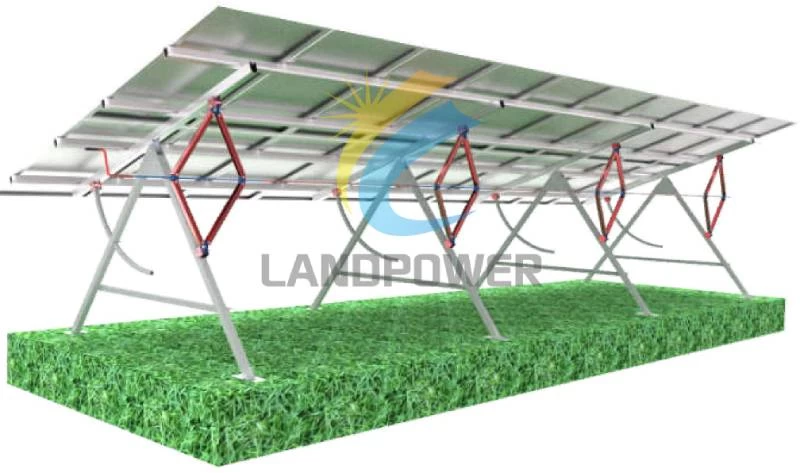

Main components of Adjustable Solar Mounting(①-⑧):
Installation of Adjustable Solar Mounting:
The
Adjustable Ground Mounted Shelving System is an extremely versatile
solar racking solution designed to withstand the harsh environmental
conditions for decades. Adjustable Ground Mount Solar Rack poles can
be driven, ballasted, screw anchored or concrete wrappe.
Installation Video Demo.
