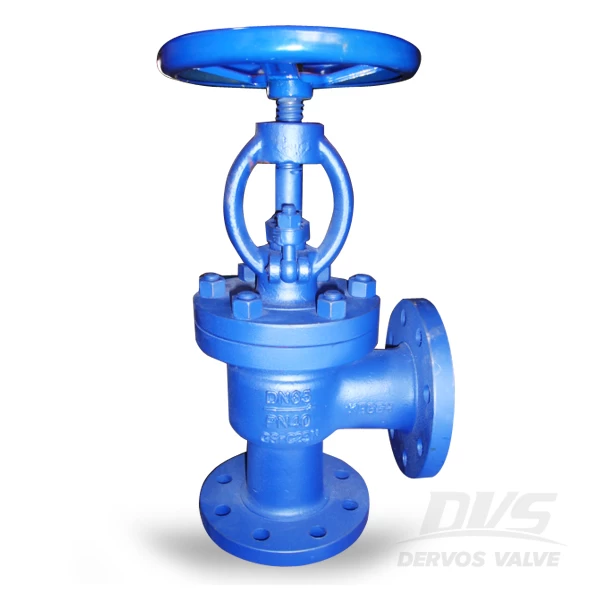

The DN65 PN16 angle type globe valve is made of cast steel 1.0619 body and ss304 trim material, with rising stem, handwheel, RF flange.
Quick Detail
|
Type
|
Globe
Valve
|
|
Norminal Size
|
DN
65
|
|
NorminalPressure
|
PN
16
|
|
Construction
|
Angle
Pattern, BB
|
|
ConnectionType
|
Flanged
|
|
Operation
|
Handwheel
|
|
Design Code
|
DIN
3356
|
|
Face to Face
|
EN
558
|
|
Connection
|
EN1092
|
|
Test &
Inspection
|
EN12266
|
|
Body Material
|
GS-C25
(1.0619)
|
|
ApplicableTemp
|
-29℃~+425℃
|
|
Application
|
WOG
|
Related Knowledge
Why use an angle type globe valve?
Angle globe valve turns the flow direction by 90 degrees without using an elbow or the extra pipe weld, which reduce the number of joints on the pipeline, save the installation time, and reduce the pressure drop & flow resistance.
The angle pattern globe valve are used for application with periods of pulsating flow, since they are able to handle slugging effect.
