Our adjustable tin roof mounting systemcan easily fit different flat roof or open terrain application.
Spceial design solar panel installation for metal roof tops, it can be adjusted and tilt angles with three options:
10° – 15°, 15° – 30° or 30° – 60° . Flexible suit for different optimized installing direction according to local sun lights .
With our waterproof EPDM rubber plates, tilted front and rear legs can be firmly mount to metal roofing
Our 10 -15 deg, 15 – 30 deg and 30 60 deg are mainly controlled by back leg’s height , in this way installers can eliminate welding and cutting on site . Simple and save labour cost .
|

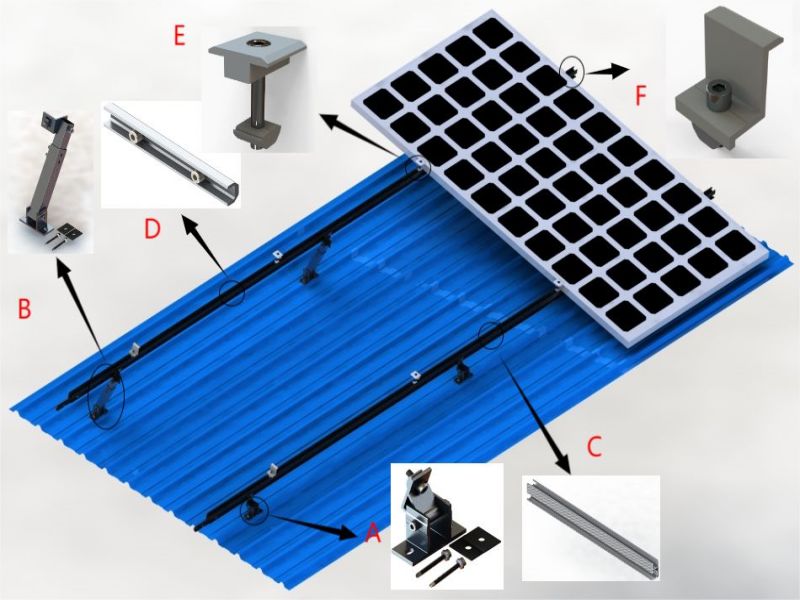

A

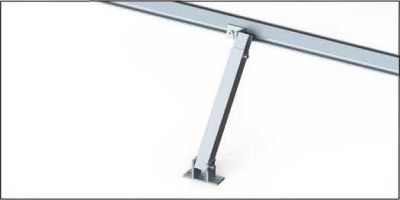

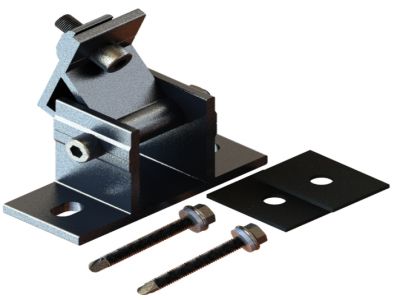

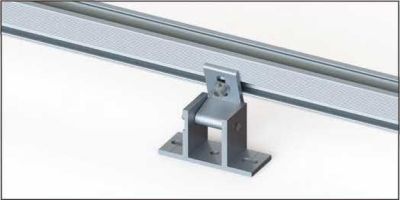

XHF-AFL, Adjustable front leg
AI6005-T5
|
B

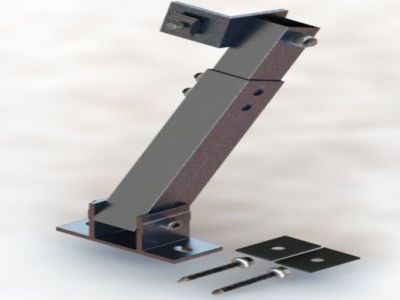

XHF-ARL, Adjustable Rear Leg
AI6005-T5, 10-15°, 15-30°, 30-60°
|
C
XHF-R02

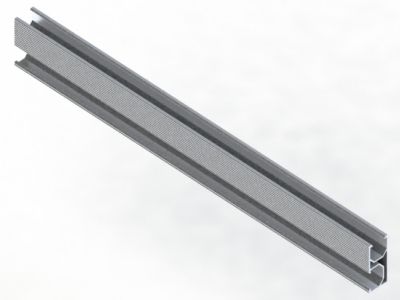

Extruded AI6005-T5 rail profile to support solar panel
|
|
D
XHF-R02-S

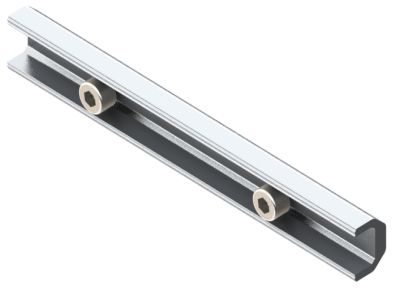

Rail Splice, AI6005 & SUS304
To extend rail length.
|
E
XHF-IC-40

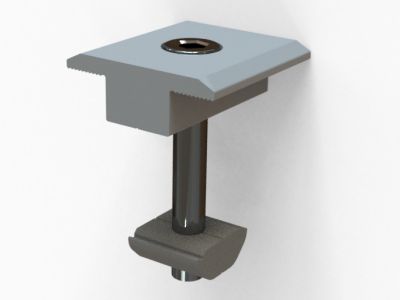

Mid clamp, AI6005 & SUS304 To fix framed panel on rail.
|
F
XHF-SC-40
Side clamp, AI6005 & SUS304 To fix framed panel on rail
|
|
Paremeters
|
|
|
Application
|
Pitch Tin Roof
|
Max Wind Speed
|
60 m/s
|
Snow Load
|
1.4 KN/m2
|
Material
|
Aluminum 6005-T5
|
Warranty
|
10 years warranty; 25 years service life.
|
Self-screw tapping footing.Directly fixed way on metal or tin roof .
Adjustable front & rear leg footing option could use different roof clamps on metal sheet10-15°、 15-30°、 30-60° adjustment range
Adjustable tile solar mounting bracket systemsuitable for the flat tin roof with great flexibility both for commercial and residential roof solar system.
Extra tilt angle maximizes the solar panel output.
Compatible with most of the solar modules on market
Compact package before shipment for easy transportation and retal
|
Step 1: Fix adjustable front leg and rear leg on steel roofing.
|
Step 2: Fix solar rail on adjustable front leg and rear leg.
|
|
Step 3: Put solar panel on rail and fix with solar clamp until finish.
|
|
