150KW/200KW/250KVA/300KW With Cummins Series diesel generator
|
Power
|
Cummins
series
|
Leroy
somer
|
Price
|
|
150KW
|
6CTA8.3-G2/163KW
|
LSA44.3VL14/160KW
|
1??98
|
|
160KW
|
6CTAA8.3-G2/183KW
|
LSA44.3VL14/160KW
|
1??98
|
|
200KW
|
6LTAA8.9-G2/220KW
|
LSA46.3S5/200KW
|
1??98
|
|
200KW
|
6LTAA8.9-G3/230KW
|
LSA46.3S5/200KW
|
1??98
|
|
216KW
|
6LTAA9.5-G3/250KW
|
LSA46.3M7/220KW
|
1??98
|
|
256KW
|
6LTAA9.5-G1/290KW
|
LSA46.3L10/260KW
|
1??98
|
|
310KW/340KW
|
6ZTAA13-G3/340KW
|
LSA47.2S4/328KW
|
2??98
|
|
350KW/380KW
|
6ZTAA13-G2/390KW
|
LSA47.2S5/364KW
|
2??98
|
|
350KW/380KW
|
6ZTAA13-G4/400KW
|
LSA47.2S5/364KW
|
2??98
|
|
350KW/375KW
|
QSZ13-G2/400KW
|
LSA47.2S5/364KW
|
2??98
|
|
360KW/400KW
|
QSZ13-G5 /411KW
|
LSA47.2S5/364KW
|
2??98
|
|
400KW/420KW
|
QSZ13-G3/450KW
|
LSA47.2M7/400KW
|
2??98
|

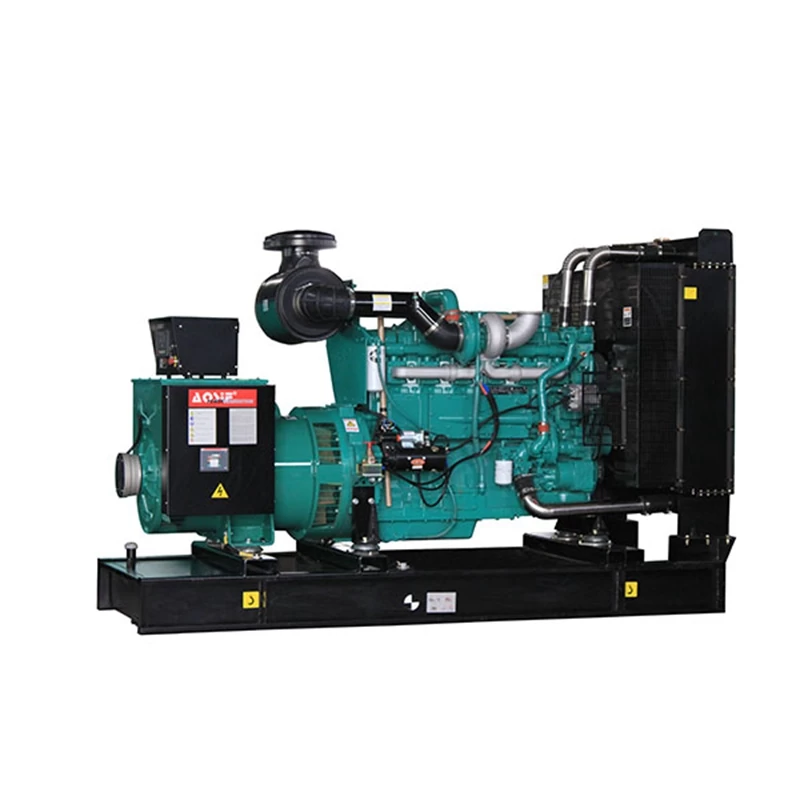

Genset Standard Configuration
◆ Assembled by Cummins diesel engine and world famous brand alternator
◆ Radiator and fan with safety guard
◆ Automatic control panel and electricity output switch cabinet
◆ Float battery charger and solenoid switch as standard supply scope
◆ Built-in shock pad
◆ Strong and durable hi-strength base frame
◆ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.
① Diesel engine
② Alternator
③ Water tank radiator
④ Automatic control panel
⑤ Electricity output switch cabinet
⑥ Built-in shock pad
⑦ Hi-strength Base Frame
⑧ Solenoid switch
Genset Main Technical Data:
|
Genset Model
|
AC Series
|
|
Prime Power(50HZ)
|
200KW
|
|
Standby Power(50HZ)
|
220KW
|
|
Frequency/Speed
|
50Hz/60Hz
|
|
Standard Voltage
|
230V/400V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Chongqing Cummins Engine Co. Ltd.
|
|
Model
|
6CTA
|
|
Engine speed
|
1500rpm/1800rpm
|
|
Engine power
|
|
|
--------------------Standby power
|
246kw / 328HP
|
|
--------------------Prime power
|
224kw / 298 HP
|
|
Type
|
4 cycle, In-line, 6-cylinder
|
|
Aspiration
|
Turbocharged, after cooled
|
|
Governor
|
electrical
|
|
Bore * Stroke
|
125*147 mm
|
|
Displacement
|
14L
|
|
Compression ratio
|
16.1:1
|
Standard Supply Scope
|
①Exhaust silencer
|
② Bellow
|
③ Elbow and flange
|
④ Starting battery
|
Optional supply scope
|
①ATS
|
②Synchronization System
|
③External daily fuel tank
|
④Silent Canopy
|
⑤Trailer
|
|
⑥Auto Fuel Pump
|
⑦Fuel and Water Separator
|
⑧Lub Oil Heater
|
⑨Coolant Heater
|
⑩Fuel Drain Pump
|
Cummins engine:
Cummins is the world's leading power equipment manufacturer, who focuses on the design and manufacture of engines and related technologies, and has become the world's largest engine manufacturer in the industry. The product includes diesel engines (Displacement from 19 to 95 liters) , designing, manufacturing and offering multiple power solutions, and providing 6,500 after-sales service support agencies worldwide.
Alternator
|
AVR
|
Standard
|
|
Number of phase
|
Single/3
|
|
Power factor
|
0.8/1
|
|
Altitude
|
≤ 1000 m
|
|
Frequency
|
50/60Hz
|
|
Number of pole
|
4
|
|
Exciter type
|
Self-excitation
|
|
Voltage regulation
|
±0.5%
|
|
Total harmonics(TGH/THC)
|
< 4 %
|
|
Wave form: NEMA = TIF
|
< 50
|
|
Wave form: I.E.C. = THF
|
< 2%
|
|
◆ Optional PMG excitation system
|
Alternator adopts brushless synchronization alternator of world famous brand, based on a variety of operating voltage requirements, optimizing winding design and eliminating effectively the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG (optional), in with superior performance in generating non-linear loads.
◆ Forms: single/double bearing
◆ Protection:IP23(IP44 for option)
◆ Balance: rotator balance is in accordance with ISO1940 and NFC51-112 standard
◆ Overspeed: 2250rpm
◆ Insulation Class: class H
◆ Mechanical Structure: steel base frame
Control System——DeepSea 6120 Controller
① Power switch
② Power indicator
③ Run button
④ LCD display
⑤ Emergency stop button
It is a self-starting control module at mains failure and is suitable for controlling a single genset. It provides advanced engine testing and protection functions. This module includes an LCD backlit display that clearly displays the engine running status. The module also includes 7-channel input and 6-channel output. Program can be set through the panel and PC software suite.
Parameters:
Deepsea 6120 controller provides such parameters as generator frequency, idling/overspeed, generator voltage, generator current, engine oil pressure, engine water temperature, flexible fuel level, running hour, battery voltage, start/stop failure, emergency stop, failure to meet operating voltage/frequency, charging failure, magnetic sensor signal loss, low battery voltage, three-phase mains voltage and mains frequency.
Protective functions:
◆ High water temperature
◆ Low oil pressure
◆ High/low voltage
◆ Over speed
◆ Voltage regulator frequency regulator
◆ Emergency stop
◆ Start failure
Product features:
◆ Protection: Automatic start/stop, load switching and genset alarm
◆ Magnetic sensor signal
◆ Parameters setting via PC and panel
◆ Incorporates 4-channel digital input signal and 3-channel analog input signal
◆ 6-channel output signal (4-channel customized output, CAN 6-channel customized output.)
◆ Monitoring of 3-phase generator voltage and mains voltage
◆ Remote loading/unloading
◆ Advanced measurement capabilities
◆ Test button
◆ Switch between mains and genset power
◆ Reasonable structure and button layout
◆ Multiple engine parameters can be tested simultaneously
◆ Module can be configured according to customer demand
◆ IP65 protection (soundproof)
Circuit breaker
|
Molded case circuit breaker(MCCB)
|
63A TO 1600A
|
|
Air circuit breaker(ACB)
|
1600A TO 6300A
|
|
Breaking capacity(ICU)
|
18KA TO 120KA
|
|
Rated Operation Voltage(Ue)
|
400V
|
Starting battery
|
Battery Voltage
|
12V
|
|
Battery Capacity
|
80Ah to 200 Ah
|
|
Battery Model
|
maintenance-free battery
|
Aosif Soundproof Box-type Genset
Aosif soundproof box-type genset is designed by professional engineers with over a decade of
experience.The noise of this kind of genset is controlled at 80-85dB(A) at 1m away, 70~75dB(A) at 7m away, 60~65dB(A) at 15m away.
★ Multiple air inlets/outlets ensure power performance of the genset.
★ Large composite impedance muffler effectively reduces the genset noise.
★ Internal high-performance rubber shock absorber and flexible materials can reduce vibration.
★ Fuel tank at the bottom can enable the genset to work for 8 hours.
★ Soundproof enclosure is made by cold steel.
★ The best powder coating with chemical surface treatment ensure corrosion resistance and coating quality.
★ Nice appearance and reliable quality.
★ Stainless steel locks and hinges.
★ All-weather operation is available.
★ Fireproof, waterproof and dust-proof
★ High-performance insulation materials can effectively reduce noise.
|
★ Transparent sight glass allows users to clearly see the content of control panel.
★ Emergency stop button mounted outside the genset to facilitate emergency operations.
★ Coolant filler is set on the top of the enclosure.
★ Lubricant and coolant pipes are installed at the bottom of the genset to facilitate replacement with new lubricants and coolants.
★ Battery is accessible through the access door.
★ Cooling fan and battery are fully monitored.
★ Insulated exhaust system is installed inside the genset.
★ Type of forklift frame is optional.
★ 180° rotatable and detachable door is designed for ease of maintenance.
★ Concave lockable access door has a long lifetime.
★ Lights inside the genset are available for maintenance.
★ Lugs are mounted at the bottom of the base.
★ Top lifting mechanism is the stand configuration for high-power genset.
|
Weight and Dimension
Our Commitments
★ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.
★ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001 Environmental Management System.
★ All products are CE-certified.
★ All products have passed rigorous factory test to ensure high quality.
★ Product warranty terms are strictly enforced.
★ High-efficiency assembly and production lines ensure on-time delivery.
★ Professional, timely, thoughtful and dedicated services are offered.
★ Favorable and complete original accessories are supplied.
★ Regular and irregular technical training are provided all year round.
★ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.
