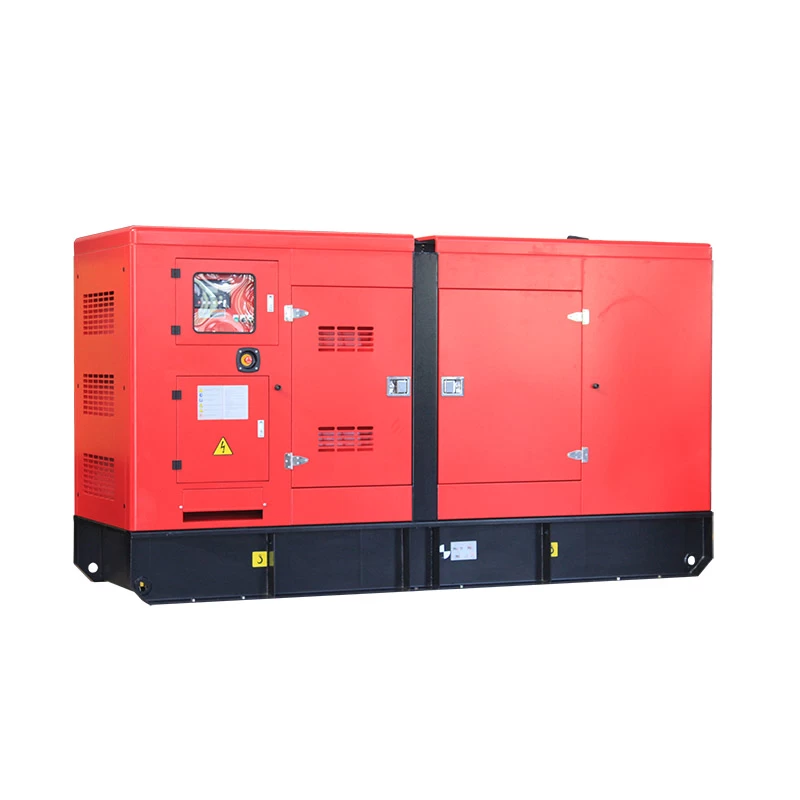

AOSIF 200kw 250KVA soundproof canopy Type diesel generator set
The ASP series silent type generator is made according with ISO standards, And in conformity with the current and pending law about the safety requirements and environmental requirements of working environment, AOSIF generator sets all pass the strict test, can run under the most demanding working conditions.
Performance feature：
• Weatherproof, sturdy and durable.
• Powder coat, with excellent anti-corrosion performance.
• Full considering the security, to ensure safe operation and maintenance.
• Easy operation.
AOSIF Soundproof Enclosure Description
Double door on both side of enclosure,
Upward exhaust.
Silencer is installed inside the enclosure.
Suitable for the models as below:
CUMMINS: DCEC 6C、6L series 50Hz: 120KW-200KW 60Hz: 150KW-220KW
PERKINS: 50Hz: 108KW-200KW 60Hz: 122KW-225KW
DOOSAN: 50Hz: 120KW-183KW 60Hz: 150KW-204KW
Generator set with double side single-door structure , as shown below:
Silent diesel generator
|
Power Range
|
200KW/250KVA
|
|
Voltage
|
220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
|
|
Engine
|
6LTAA8.9-G2(or other engine brand)
|
|
Alternator
|
Leroy somer,Stamford,Marathon,Aosif
|
|
Controller
|
Deepsea
|
|
Circuit Breaker
|
ABB/SCHNEIDER
|
|
Type
|
Open/Silent
|
|
Fuel Tank
|
Base Tank,External Daily Fuel Tank
|
|
Optional supporting products
|
Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank
|
|
1. Engine:
|
Brand-new engine.
|
|
2. Alternator:
|
Brand new brushless alternator, single bearing, IP23, H insulation class.
|
|
3. Base Frame:
|
Heavy duty steel channel base frame.
|
|
4. Radiator:
|
With safety guard.
|
|
5. Vibration Damper
|
Vibration damper between Engine/Alternator and base frame
|
|
6. Breaker:
|
3-pole output manual circuit breaker as standard, 4 poles for option
|
|
7. Controller:
|
DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 for option.
|
|
8. Silencer:
|
Heavy duty industrial type silencer with flexible bellow,elbow.
|
|
9. Battery:
|
Varta Brand,high capacity sealed maintenance free battery c/w battery cables.
|
|
10. Fuel Tank:
|
8 hours base fuel tank
|
|
11. Tool Kits & Manuals:
|
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.
|
