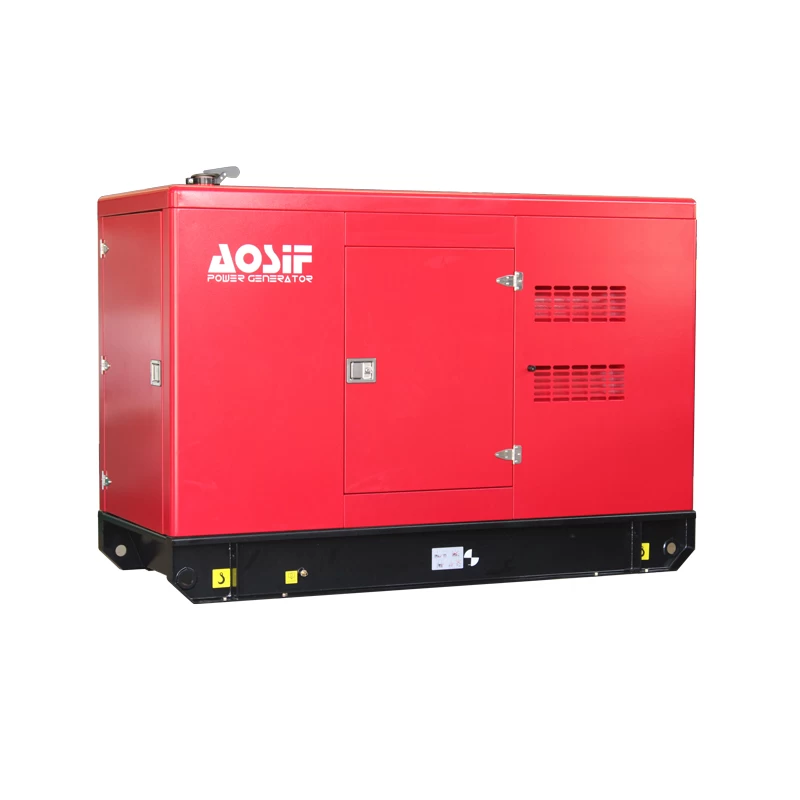

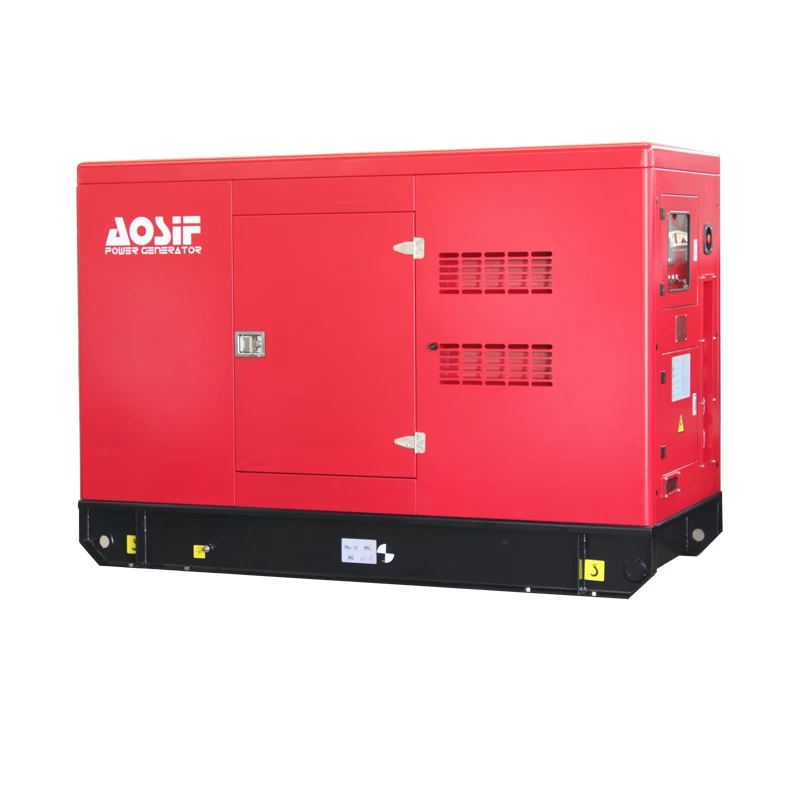

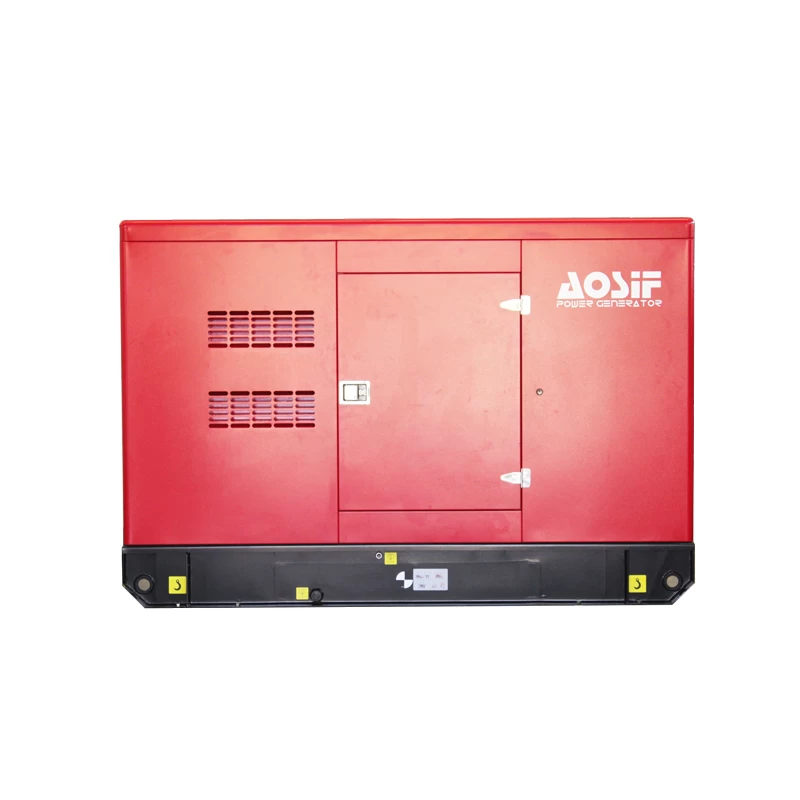

AOSIF 48KW 60 KVA AC Three phase silent generator red diesel genset

AOSIF 48KW 60 KVA AC Three phase silent generator red diesel genset


  • Prime Power48kw/60KVA
  • EngineCummins 4BTA3.9-G2
  • AlternatorLeroy somer LSA42.3L9
  • Warranty1 year
  • controllerDeepsea/ComAp
  • ColourRED
  • TypeSilent

AOSIF 48KW 60 KVA AC Three phase silent generator red diesel genset

4BTA3.9-G2  50HZ/1500rpm

Power Range 48KW/60KVA
Voltage 220/380V,230/400V,110/220V,240/415V, 254/440V, 277/480V
Engine

4BTA3.9-G2

Alternator Leroy somer, single bearing, IP23, H insulation class.
Controller Deepsea 6120
Circuit Breaker ABB/SCHNEIDER
Type Silent
Fuel Tank 8 hours base fuel tank
Optional supporting products Moveable/Trailer Type Diesel Generator /Synchronization System   Automatic Transfer Switch /Dummy Load  Day Tank




Aosif Soundproof Box-type Genset

Aosif soundproof box-type genset is designed by professional engineers with over a decade of

experience.The noise of this kind of genset is controlled at 80-85dB(A) at 1m away, 70~75dB(A) at 7m away, 60~65dB(A) at 15m away.

★ Multiple air inlets/outlets ensure power performance of the genset.

★ Large composite impedance muffler effectively reduces the genset noise.

★ Internal high-performance rubber shock absorber and flexible materials can reduce vibration.

★ Fuel tank at the bottom can enable the genset to work for 8 hours.

★ Soundproof enclosure is made by cold steel.

★ The best powder coating with chemical surface treatment ensure corrosion resistance and coating quality.

★ Nice appearance and reliable quality.

★ Stainless steel locks and hinges.

★ All-weather operation is available.

★ Fireproof, waterproof and dust-proof

★ High-performance insulation materials can effectively reduce noise.

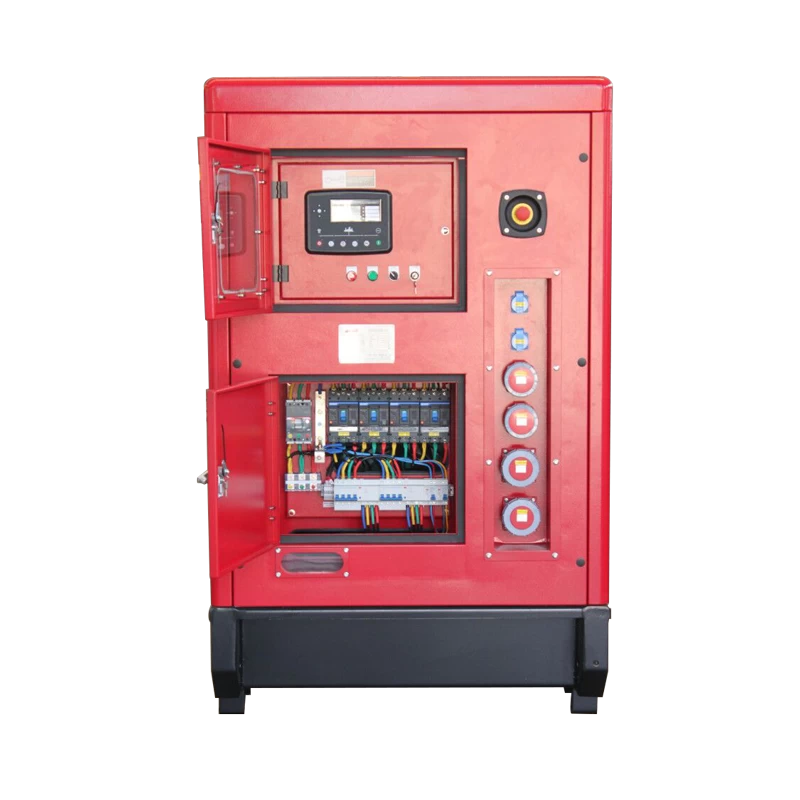

★ Transparent sight glass allows users to clearly see the content of control panel.

★ Emergency stop button mounted outside the genset to facilitate emergency operations.

★ Coolant filler is set on the top of the enclosure.

★ Lubricant and coolant pipes are installed at the bottom of the genset to facilitate replacement with new lubricants and coolants.

★ Battery is accessible through the access door.

★ Cooling fan and battery are fully monitored.

★ Insulated exhaust system is installed inside the genset.

★ Type of forklift frame is optional.

★ 180° rotatable and detachable door is designed for ease of maintenance.

★ Concave lockable access door has a long lifetime.

★ Lights inside the genset are available for maintenance.

★ Lugs are mounted at the bottom of the base.

★ Top lifting mechanism is the stand configuration for high-power genset.
