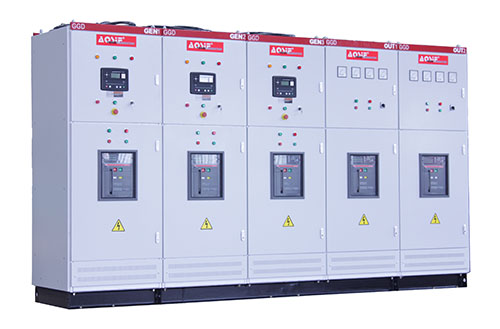

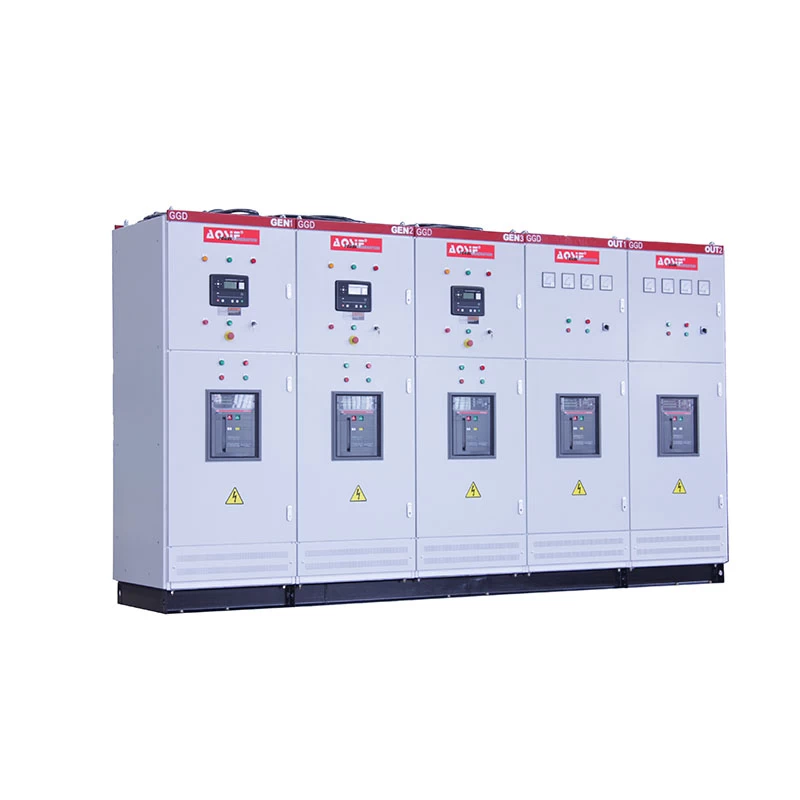

APS series synchronization control system

APS synchronization system is researched,developed and designed by our AOSIF.  It adopts import synchronization panel. It provides function of many generators in parallel and load sharing. The system is simple,compact structure, highly integrated.

APS synchronization system has both electricity parameters and dynamic parameters monitoring protection.  The main monitor parameters are as below,

1.Speed

2.Oil pressure

3.Water temperature

4.Battery voltage

5.Three phases voltage, current,frequency monitor

6.Load active power, reactive power, power factor monito

The main protection parameters are as below,

1. Over voltage, under voltage, over current, shortcircuit, reverse power etc.

2. Speed, oil pressure, water temperature, battery voltage fault etc.
