4B series 15-70KW Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
Genset Open Version Genset Soundproof Version

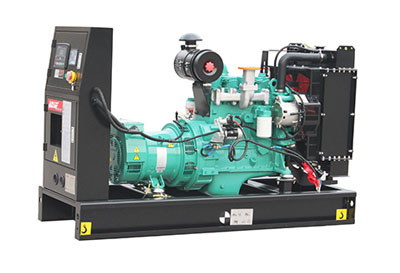

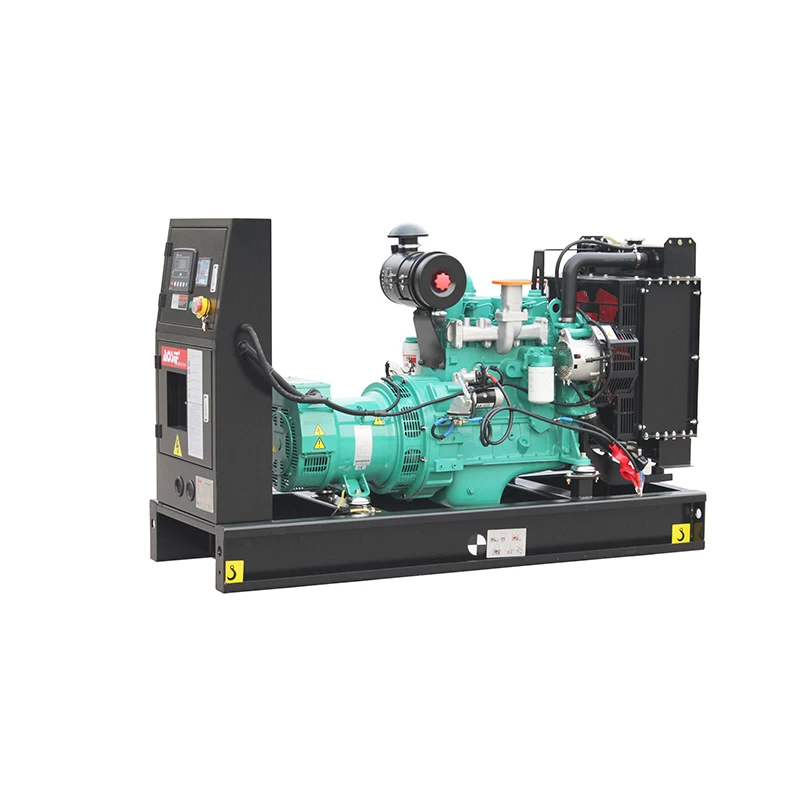

Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 1280×860 ×1285mm(L*W*H)
|
Overall size: 2250×1000×1550mm(L*W*H)
|
Weight: 641kg
|
Weight: 971kg
|
Generator Detail
