AOSIF 640KW 800kva Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.

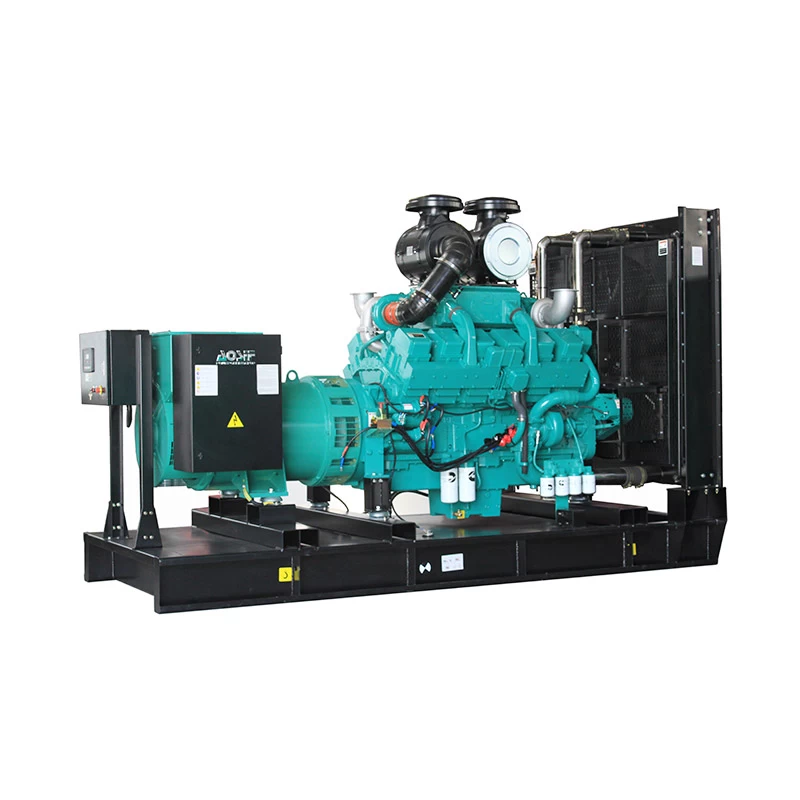

Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 4200×1700 ×2200mm(L*W*H)
|
Overall size: 5800× 2280×2500mm(L*W*H)
|
Weight: 7450kg
|
Weight: 9500kg
|
Genset Main Technical Data:
|
Genset Model
|
AC888
|
|
Prime Power(50HZ)
|
640KW / 800KVA
|
|
Standby Power(50HZ)
|
710KW / 888KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
230V/400V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
Manufacturer
|
Chongqing Cummins Engine Co. Ltd.
|
|
Model
|
KTA38-G2B
|
|
Engine speed
|
1500rpm
|
|
Engine power
|
|
|
--------------------Standby power
|
789kw /1057BHP
|
|
--------------------Prime power
|
711kw /953BHP
|
|
Type
|
4 cycle, 60°Vee; 12-cylinder
|
|
Aspiration
|
Turbocharged and Aftercooled
|
|
Governor
|
electrical
|
|
Bore * Stroke
|
159*159 mm
|
|
Displacement
|
38 L
|
|
Compression ratio
|
14.5:1
|
|
Idle speed
|
675 – 775 r/min
|
|
Brake mean effective pressure
|
1663kPa
|
|
Piston speed
|
7.9 m/s
|
|
Friction horsepower
|
86kw(115HP)
|
Generator Detail
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
