AOSIF 64KW 80kva Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.
|
Genset
|
AC88
|
|
Voltage
|
277V/480V
|
|
Engine
|
4BTA3.9-G11
|
|
Prime Power/Standby Power
|
64KW/70KW
|
|
Alternator
|
Aosif
|
|
Controller
|
deepsea 6120
|
|
Circuit Breaker
|
ABB/SCHNEIDER
|
|
Type
|
Open
|
|
Fuel Tank
|
Base Tank,External Daily Fuel Tank
|
|
Optional supporting products
|
Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank
|
AOSIF

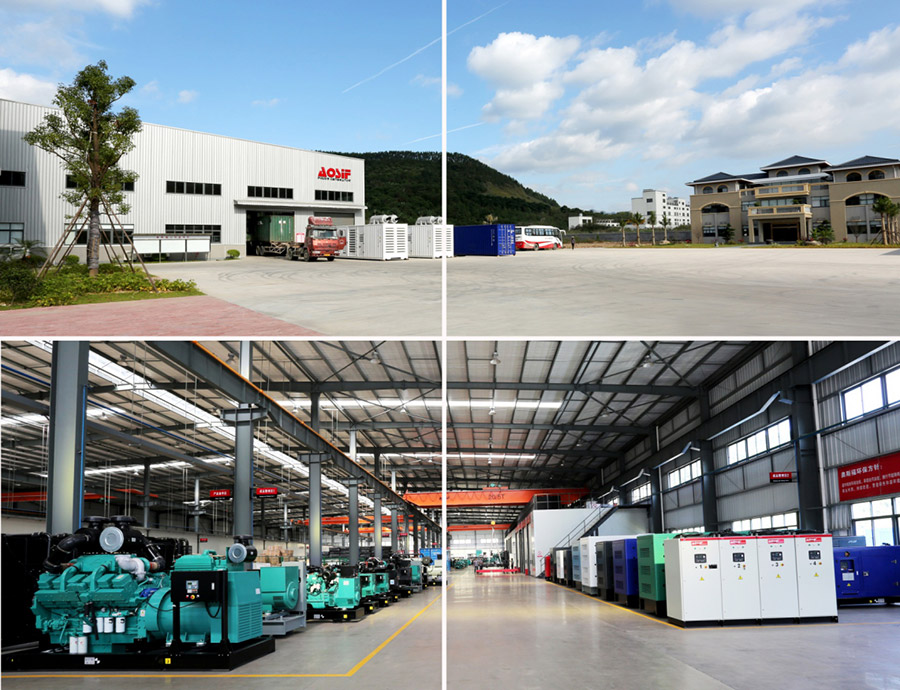

Xiamen AOSIF Engineering Ltd. who is devoted to the R&D and manufacturing of diesel generator sets since 2001, and has accumulated rich experiences in production & maintenance in this industry. AOSIF new manufacturing base is located in Xingtai Industrial Park, Changtai Economic Development Zone covering an area of 33333 square meters.
The production and service of our products follow ISO8525 and GB/T 2820-97 standards strictly. The management system has passed the system certification of ISO 9001 and ISO 14001, and all series of products have passed CE certification, which ensures that the AOSIF Products are with high-quality & good service.
AOSIF has been awarded successively famous trademarks of Xiamen City and Fujian Province, dozens of patents and high-tech enterprises. Nowadays, the products have been sold all over the world with great reputation, and are generally recognized by users.
Cummins generator ：Prime power range ：20-1800KW
This series adopt Cummins’ diesel engine with B, C & L series from Dongfeng Cummins Engine Co. Ltd., M, N & K series from Chongqing Cummins Engine Co. Ltd., and high power range with imported engines.The alternators adopt Leroy-somer, Stamford, Marathon, as well as Chinese brand alternator for option
Genset Open Version Genset Soundproof Version

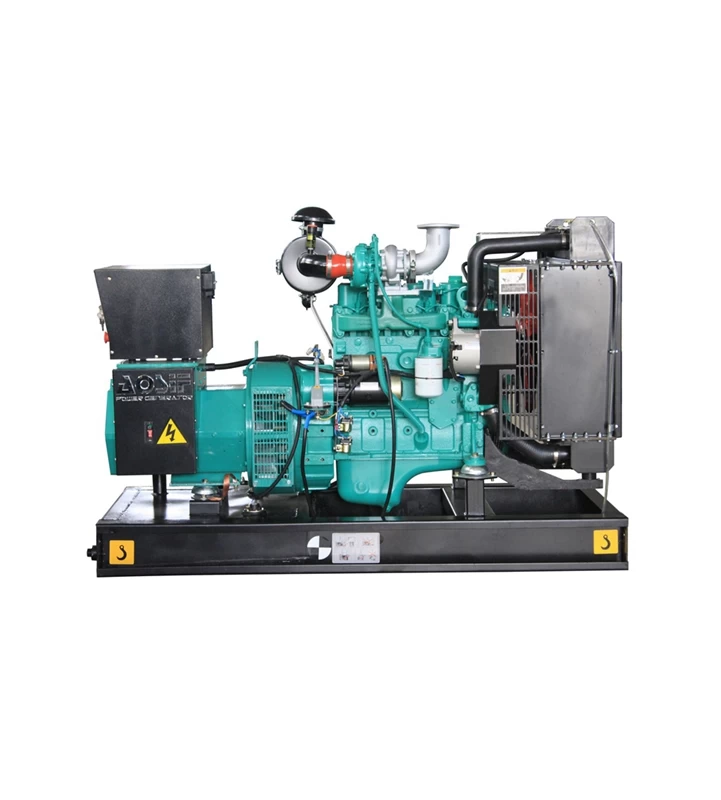

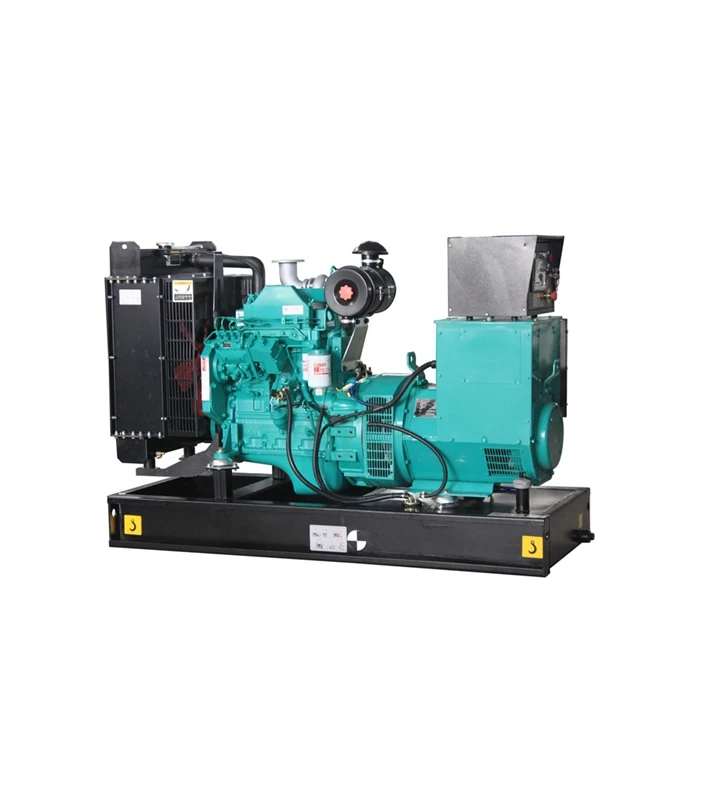

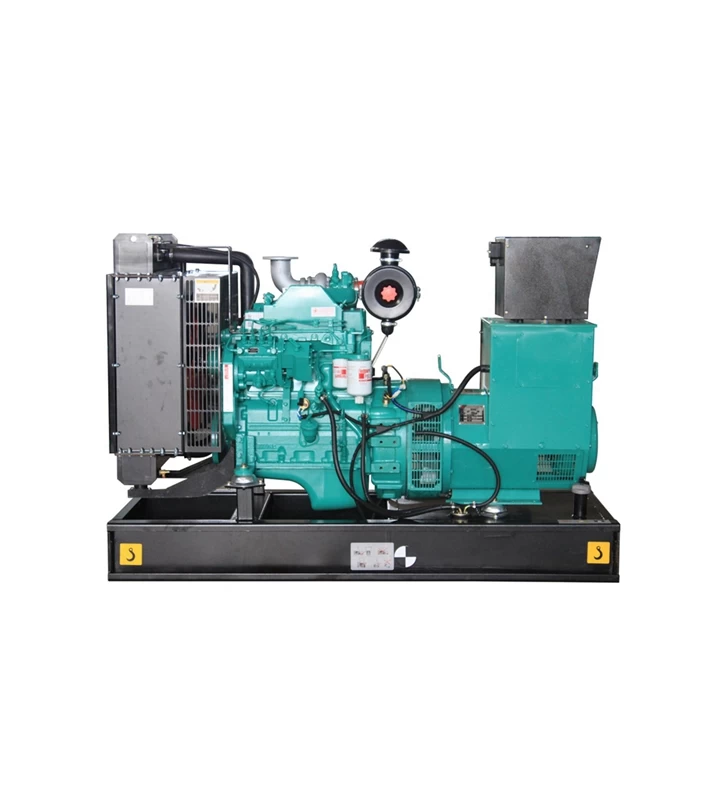

Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 2020×730 ×1270mm(L*W*H)
|
Overall size: 2420× 930×1570mm(L*W*H)
|
Weight: 960kg
|
Weight: 1200kg
|
AOSIF Generator Supply Scope
|
1. Engine:
|
Brand-new engine.
|
|
2. Alternator:
|
Leroy somer/ Stamford/marathon/AOSIF(AA-64-4)
|
|
3. Base Frame:
|
Heavy duty steel channel base frame.
|
|
4. Radiator:
|
With safety guard.
|
|
5. Vibration Damper
|
Vibration damper between Engine/Alternator and base frame
|
|
6. Breaker:
|
3-pole output manual circuit breaker as standard, 4 poles for option
|
|
7. Controller:
|
DSE6120,
|
|
8. Silencer:
|
Heavy duty industrial type silencer with flexible bellow,elbow.
|
|
9. Battery:
|
Varta Brand,high capacity sealed maintenance free battery c/w battery cables.
|
|
10.Fuel Tank:
|
8 hours base fuel tank
|
|
11.Tool Kits & Manuals:
|
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc
|

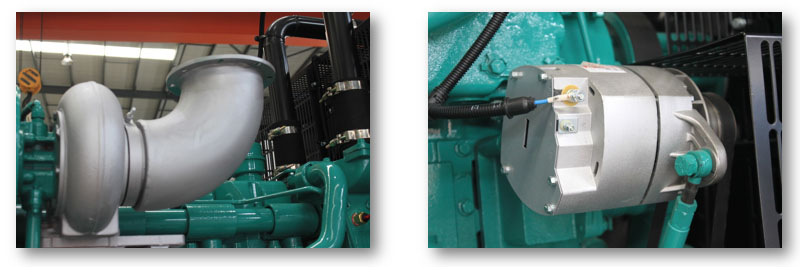

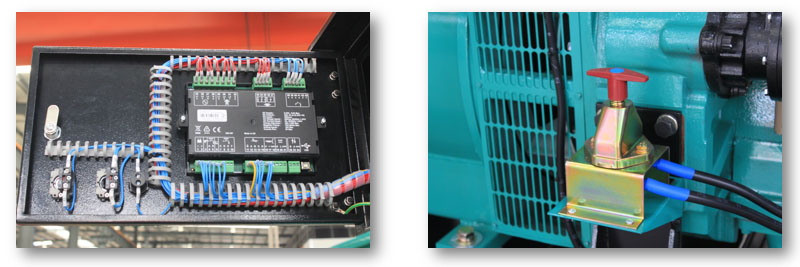

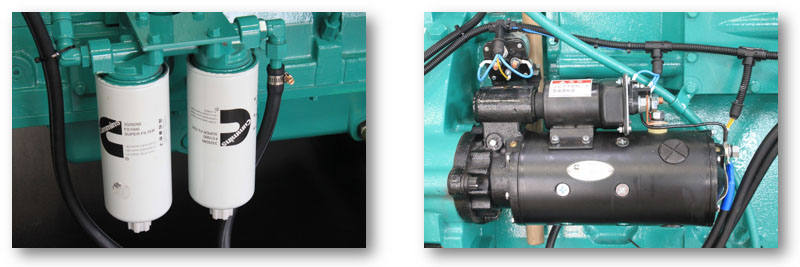

Generator Detail
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
