AOSIF 400KW 500kva Cummins diesel generator set
General feature:
♦ Asse
mbled by Cummins diesel engine and Leroy Somer alternator.
♦ Three filters as standard, fuel and water separator as optional.
♦ Radiator and fan with safety guard.
♦ Single bearing alternator IP 23, Insulation Class H.
♦ Heavy duty steel as base frame and 8hrs operation base fuel tank.
♦ Automatic control panel and 3 poles circuit breaker, internal cable.
♦ 12V battery, battery wires.
♦ Battery charger and float battery charger as standard supply scope.
♦ Optional soundproof canopy, ATS, synchronization panel, movable trailers.

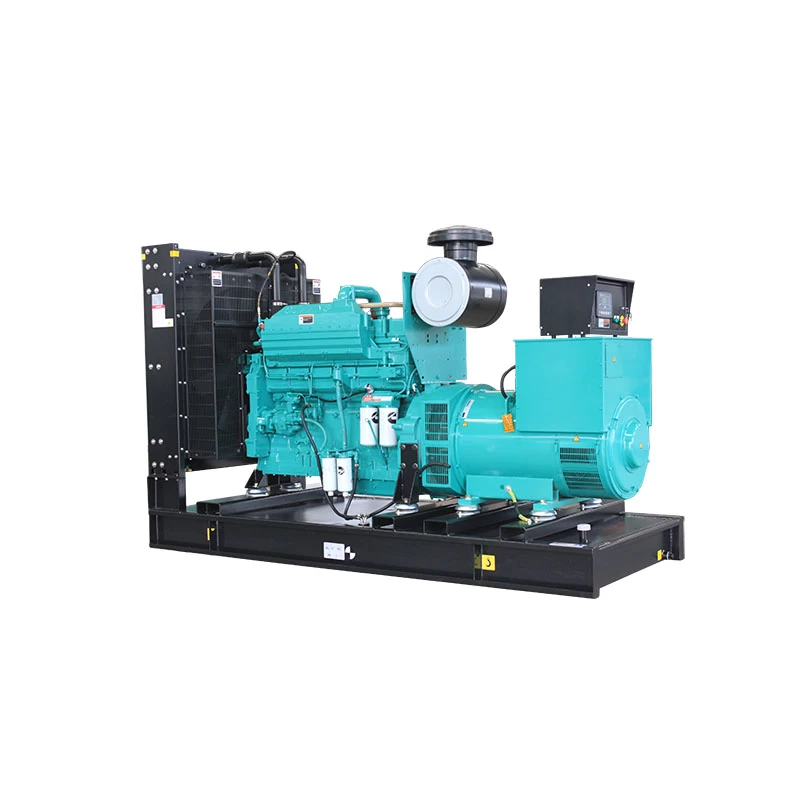

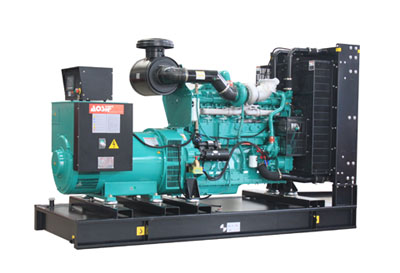

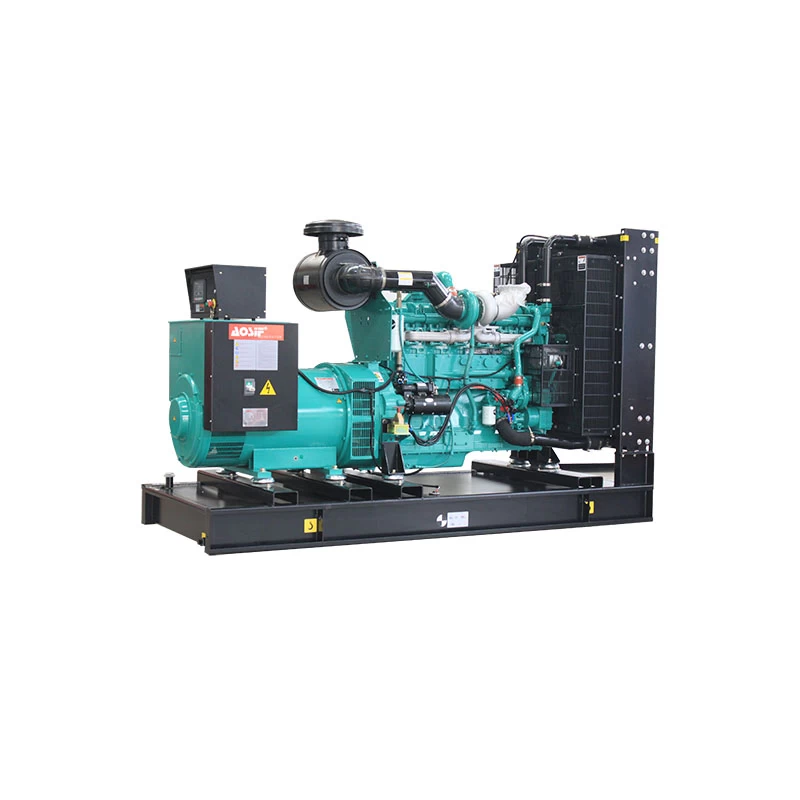

Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 3173×1355 ×1990mm(L*W*H)
|
Overall size: 3800× 1500×2250mm(L*W*H)
|
Weight: 3946kg
|
Weight: 4706kg
|
General feature: 50HZ/1500rpm
|
Genset
|
AC550
|
|
Voltage
|
220V-480V
|
|
Engine
|
KTA19-G4
|
|
Prime Power/Standby Power
|
400KW/440KW
|
|
Alternator
|
Leroy somer,Stamford,Marathon,Aosif
|
|
Controller
|
Deepsea,Comap
|
|
Circuit Breaker
|
ABB/SCHNEIDER
|
|
Type
|
Open/Silent
|
|
Fuel Tank
|
Base Tank,External Daily Fuel Tank
|
|
Optional supporting products
|
Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank
|
Generator Detail
Our Sales Promises
★ AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
★ Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
★ Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
★ All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
