AP330 300KVA 3PH Closed Open Type Set Diesel Generator Powered By Perkins Engine 1706A-E93TAG1
AI power UK series generator set adopts UK engine as the power source. It’s one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 units for one year and quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.
Engine Specifications:
|
SPECIFICATIONS
|
1206A-E70TTAG3
|
1706A-E93TAG1
|
1706A-E93TAG2
|
|
PRIME POWER
|
250 KVA
|
200 KW
|
307 KVA
|
246 KW
|
348 KVA
|
278 KW
|
|
NUMBER OF CYLINDERS
|
6 VERTICAL IN-LINE
|
|
BORE AND STROKE
|
105 X 135 MM
|
4.13 X 5.3 IN
|
115 X 149 MM
|
4.5 X 5.9 IN
|
115 X 149 MM
|
4.5 X 5.9 IN
|
|
DISPLACEMENT
|
7.01 LITRES
|
427.7 IN3
|
9.29 LITRES
|
566.9 IN3
|
9.29 LITRES
|
566.9 IN3
|
|
ASPIRATION
|
SERIES TURBOCHARGED AFTERCOOLED
|
TURBOCHARGED AFTERCOOLED
|
|
CYCLE
|
4 STROKE DI
|
|
COMBUSTION SYSTEM
|
DIRECT INJECTION
|
|
COMPRESSION RATIO
|
15.8:1
|
16.5
|
|
ROTATION
|
ANTI-CLOCKWISE, VIEWED ON FLYWHEEL
|
|
TOTAL LUBRICATING CAPACITY
|
13-16 LITRES
|
3.4-4.2 US GAL
|
26-30 LITRES
|
6.9-7.9 US GAL
|
26-30 LITRES
|
6.9-7.9 US GAL
|
|
COOLING SYSTEM
|
LIQUID
|
|
TOTAL COOLANT CAPACITY
|
25 LITRES
|
6.6 US GAL
|
33 LITRES
|
8.7 US GAL
|
33 LITRES
|
8.7 US GAL
|
Product Details

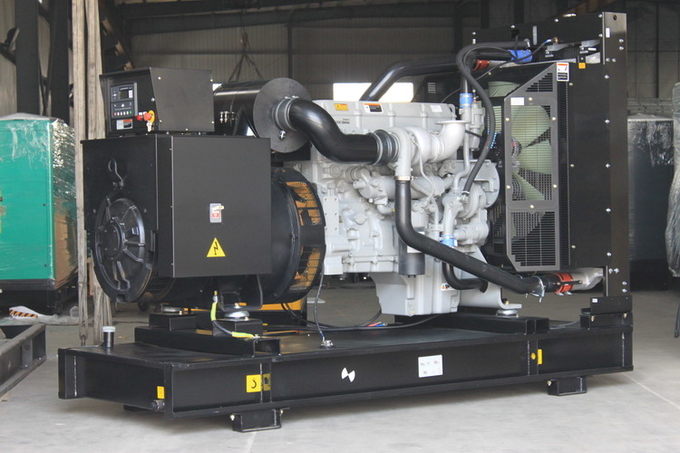

Open Type:
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

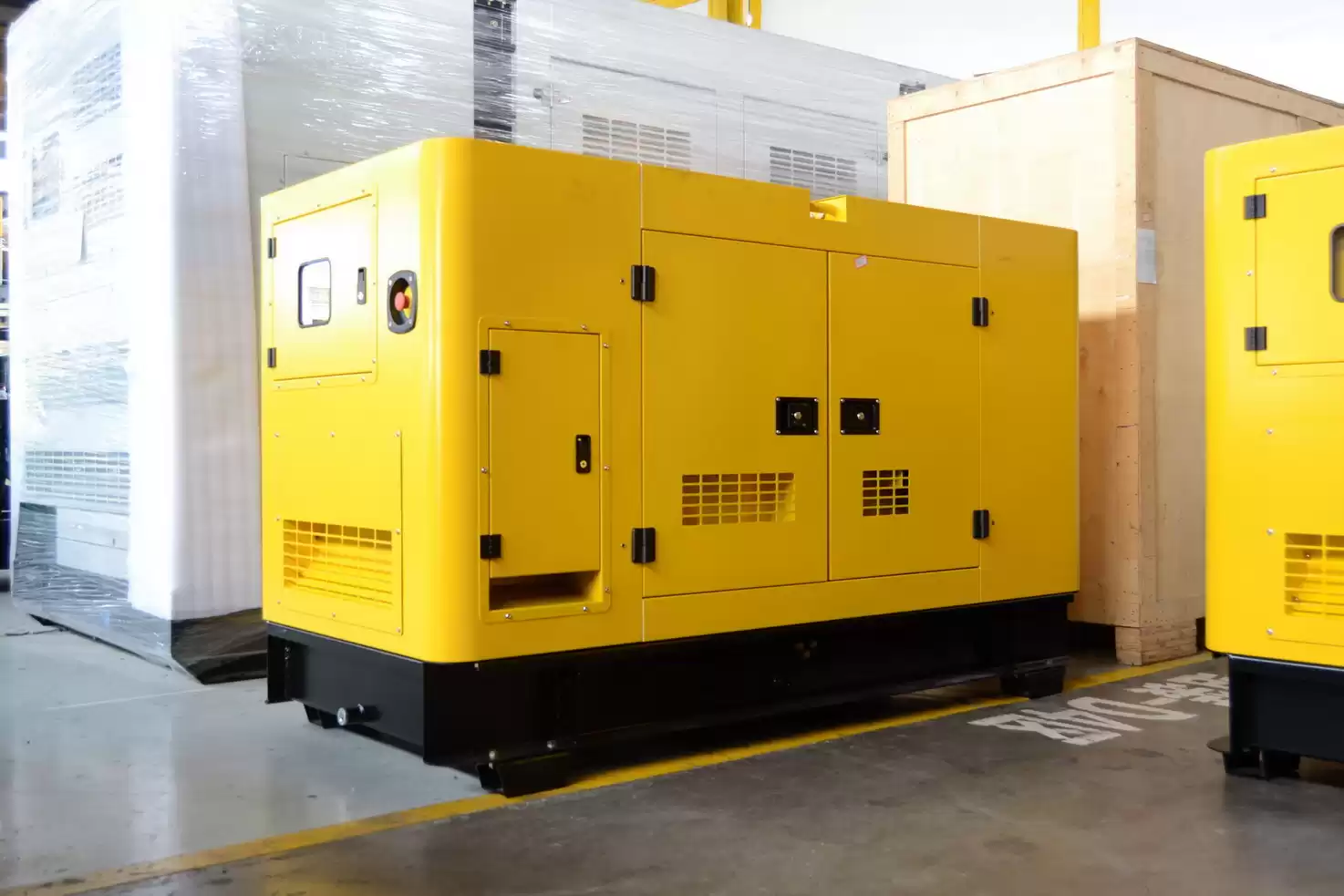

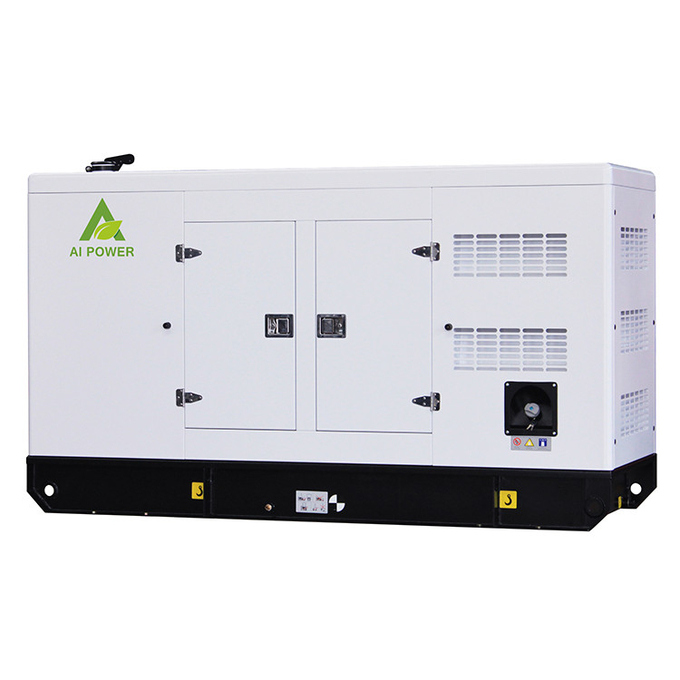

Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
1. What is your warranty period?
A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
2. Can you accept OEM?
A. Yes, we can accept OEM.
3. What’s your payment term?
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
4. What’s your delivery time?
A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
