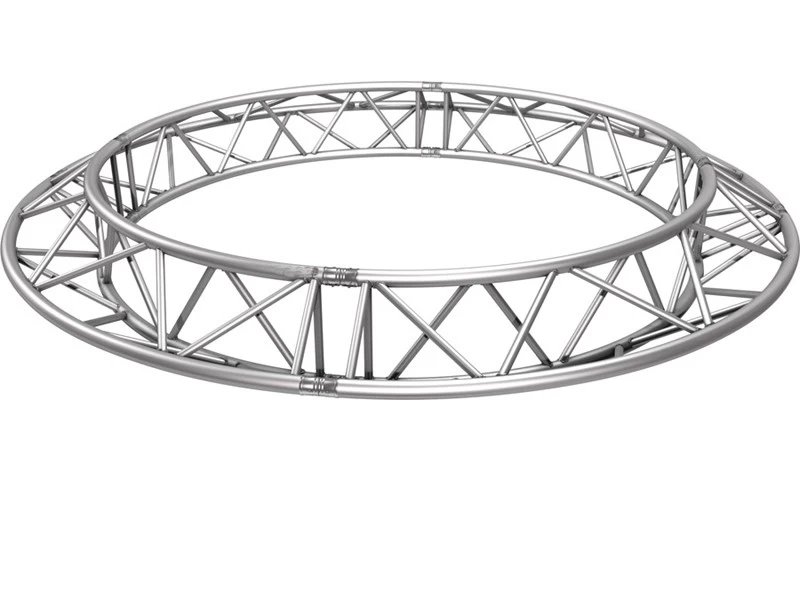

Apex Out Triangle Round Lighting Truss:
This Apex Out Triangular Circular Truss is configuarted with only the Spigot Triangular Truss ITSC-CT29 and simply connected with the connical coupler connectors. It is customized according to some exhibition booths requirements.
Features:
-
Mini and simple
-
TUV and SGS approved
-
Fool proof assemble
-
Any diameter customized
Specification:
|
Material
|
Aluminum Alloy 6061-T 6/ 6082-T 6
|
|
Types
|
Single tube circle
|
|
Main tubes
|
50 x 2 mm
|
|
Bracing
|
20x2mm
|
|
Connection type
|
Conical couple system
|
Arc Lenghts:
|
Diameter（m)
|
Arc
|
|
1.5 m
|
2 x 180 degree arcs
|
|
2 m
|
2 x 180 degree arcs
|
|
3 m
|
4 x 90 degree arcs
|
|
4 m
|
4 x 90 degree arcs
|
|
5 m
|
8 x 45 degree arcs
|
|
6 m
|
8 x 45 degree arcs
|
Other length can be custom on request.
