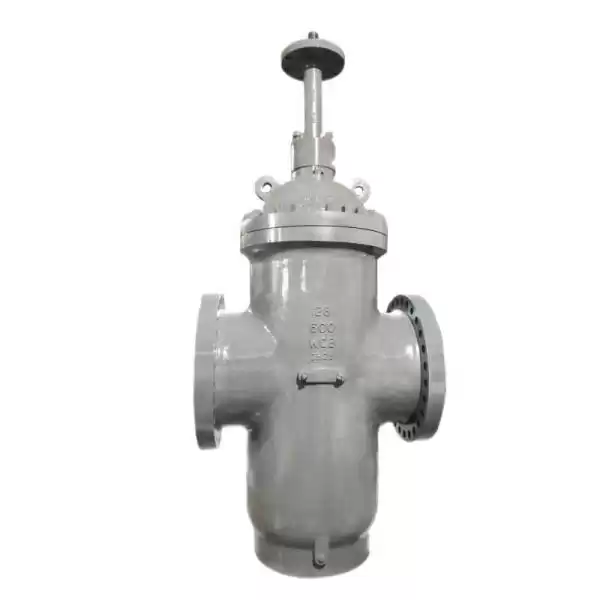

API6D Through Conduit Gate Valve 28Inch 600LB WCB

API6D Through Conduit Expanding Gate Valve

28Inch,600LB,WCB,A105+ENP+STL,Gear Box

Manufacture STAVAL Factory Offers.


  • SeatSoft Seat, Metal Seat
  • End ConnectionBW, Flange
  • BoreFull Bore, Reduce Bore
  • ConstructionRising/Non Rising Stem, Bolt/Weld Bonnet
  • Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Working Temp.-196°C to +600°C

Key Specification

Type

Through Conduit Gate Valve

Size

28Inch

Pressure

600LB

Construction

Rising Stem, Bolt Bonnet, Full Bore, Expanding Wedge

Connection

RF End

Body/Bonnet Material

A216 WCB

Wedge Material

A105+ENP+STL

Stem Material

17-4PH

Seat Material

STL

Bolt/Nut

B7/2H

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
