Description

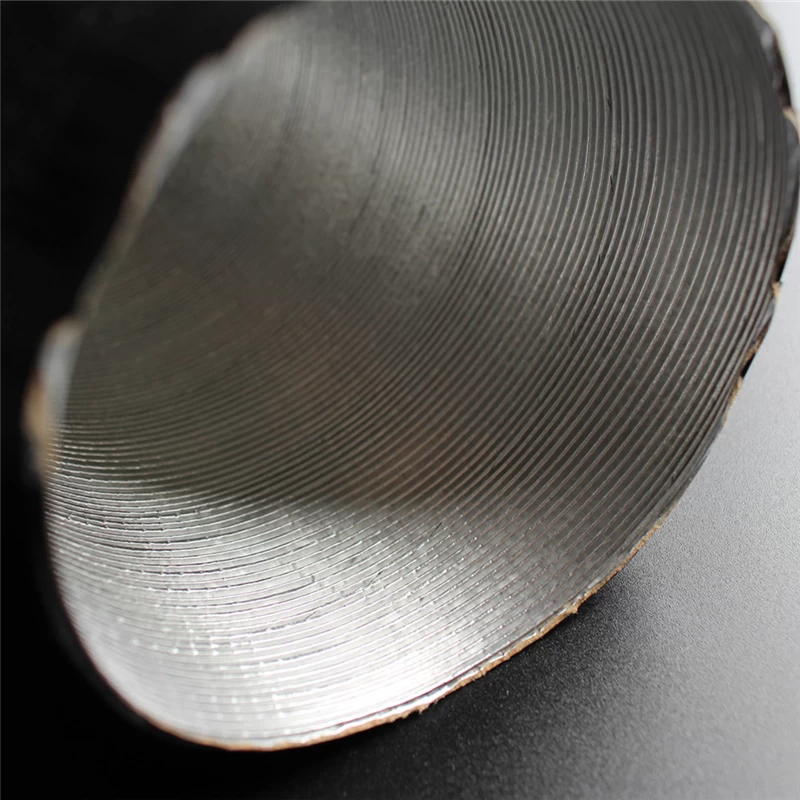

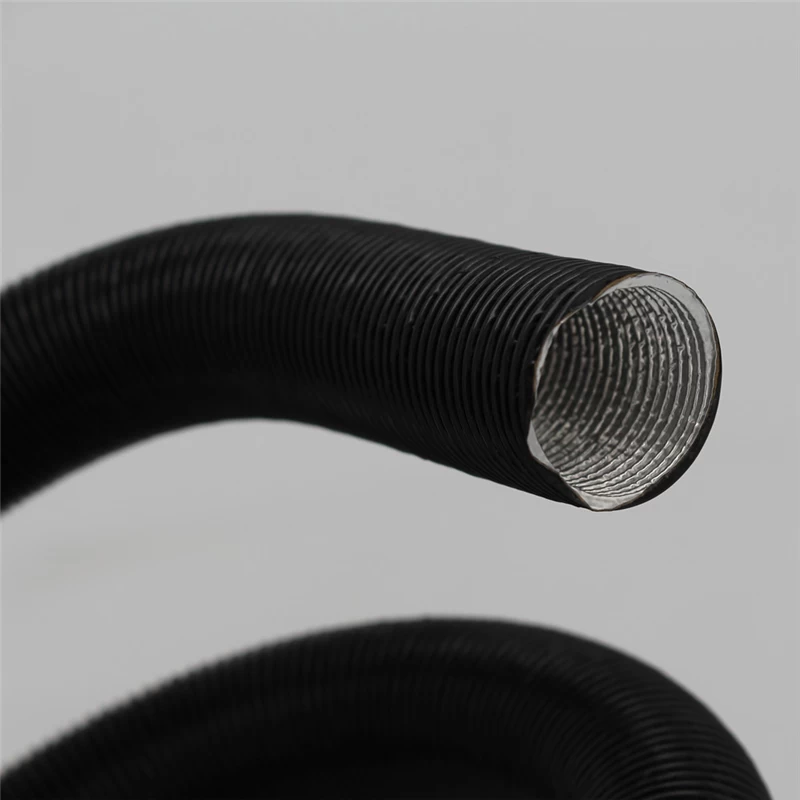

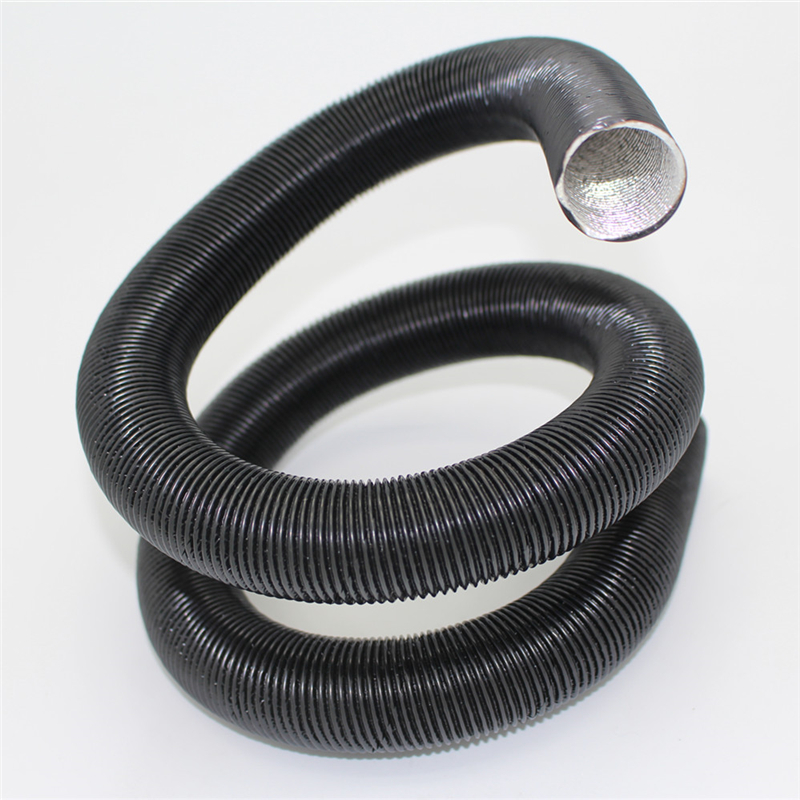

APK air ducting hose is made by 3 layer materials.
APK material for ducting is an industry standard.

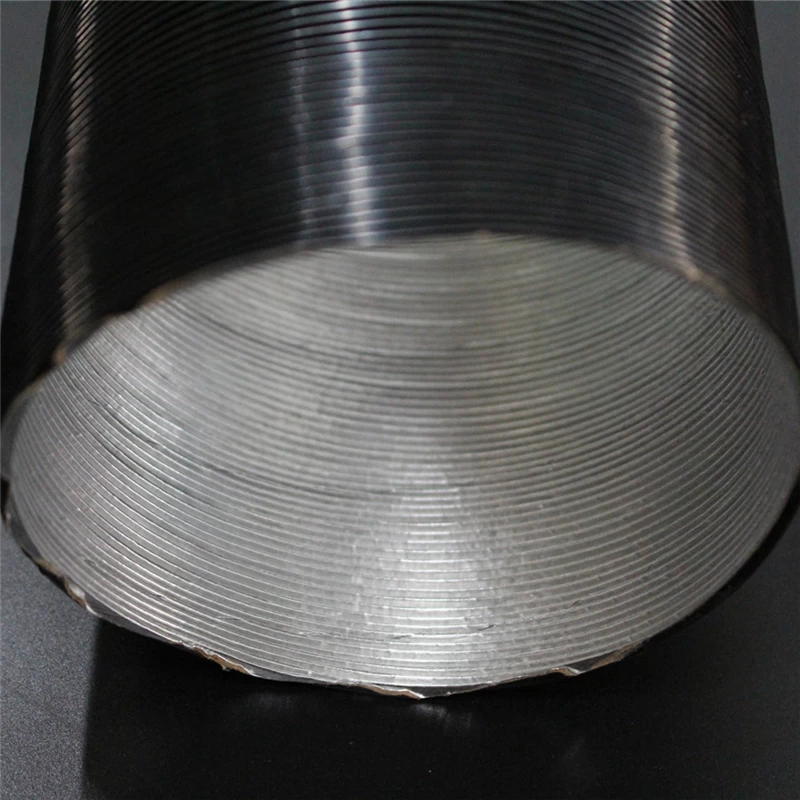

A - Inner layer - Aluminium heat reflective
P - Centre layer - Paper (flexible cardboard)
K - Outer layer - Plastic (Kunststoff)
Application
Elastomere tubes
All kinds of medium-carrying tubes
Bowden cables and gear cables
Wire sets
Temperature-sensitive parts
Blast/Exhaust Dryer
Print/Copy Machines
AC-supply/Exhaust
Industrial/Machine Industries
Construction, Moving Industrie
Specifications
|
Part Number
|
Construction
|
Material
|
Size
|
|
mm
|
|
HPT-APK
|
APK
|
aluminum, kraft paper, plastic film
|
6-140
|
|
HPT-PAK
|
PAK
|
kraft paper, aluminum, plastic film
|
6-140
|
|
HPT-KAK
|
PAP
|
kraft paper, aluminum, kraft paper
|
6-140
|
|
HPT-KAK
|
KAK
|
plastic film, aluminum, plastic film
|
6-140
|
|
HPT-APP
|
APP
|
aluminum, kraft paper, kraft paper
|
6-140
|
|
HPT-AP
|
AP
|
aluminum, kraft paper
|
6-140
|
|
HPT-3A
|
3A
|
3 layer aluminum
|
6-140
|
|
HPT-6A
|
6A
|
6 layer aluminum
|
6-140
|
|
HPT-A5P
|
A5P
|
aluminum, 5 layer kraft paper
|
6-140
|
|
HPT-AFA
|
AFA
|
aluminum, fiberglass, aluminum
|
6-140
|
|
HPT-AAF
|
AAF
|
aluminum, aluminum, fiberglass
|
6-140
|
|
HPT-FAA
|
FAA
|
fiberglass, aluminum, aluminum
|
6-140
|
|
Technical Datasheet
|
|
Material
|
Aluminum, paper, plastic
|
|
Working temperature
|
-40℃ - +343℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Black
|
|
Standard Length
|
Customs length
|
|
MOQ
|
100 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
The paper have standard grade and fire resistant grade.
