Summary：

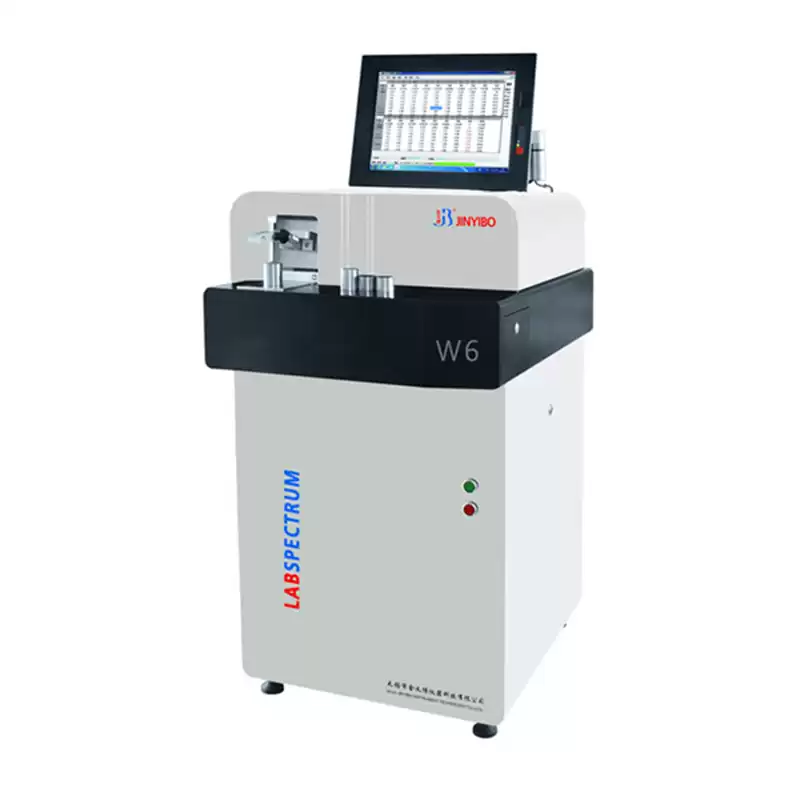

W6-The most advanced Arc/Spark-OES with Ultimate Performance for for Aluminum Analysis. It use  full-digital technology to replace bulky photomultiplier tube (PMT)  simulation technology and in the lead of international spectrometer technology. The adoption of vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability and repeatability. Its analytical precision reaches the world leading level. It is one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry. This analyzer sets a new standard for R&D and process/quality control.

Applications：

W6 Arc Spark Optical Emission Spectrometer as one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry.W6 are used for applications in metal elemental analysis, trace element analysis for science and industry like Metallurgy, Foundry, Mechanical Engineering, Scientific Research, Product Inspection, Automobile, Petrochemical Engineering, Shipbuilding, Electrics, Aerospace, Nuclear Power, Metallic and Nonferrous Metallic Smelting, Processing and Recycling.

High-end Laboratories Defence, Railways, pure research, etc.

Pure metal applications 99.9%+ purity Al, Pb, Zn, Mg etc.

Regulatory compliance Very low LODs to control Pb, Cd, As etc. (e.g. ship-making)

Integrated Steel Plants C, S, P, B, N, Ti;

Manufacturing Facilities

Warehouse material identification

Base: Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag etc

Iron(Fe) and its alloys (Steel alloy, Cast iron, Fe-Low alloy, Fe-Cr steel, Fe-Cast iron, Fe-Cr-cast, Fe-Mn steel, Fe-Tool steel etc.)
Aluminium(Al) and its alloys (Al-Si alloy, Al-Zn alloy, Al-Cu alloy, Al-Mg alloy, Pure-Al alloy etc)
Copper(Cu) and its alloys (Brass, Copper-Nickel-Zn, Aluminum Bronze, Tin-lead Bronze, Red Copper, Be-Bronze, Si-Bronze etc)
Nickel(Ni) and its alloys (Pure Ni, Monel metal, Hadtelloy Alloy, Incoloy, Inconel, Nimonic etc)
Cobalt(Co) and its alloys (Co-orientation, Low Co alloy, Stellite 6,25,31, Stellite 8,WI 52, Stellite 188, F)
Magnesium(Mg) and its alloys (Pure Mg, Mg/Al/Mn/Zn-alloys)
Titanium(Ti) and its alloys

Zinc(Zn) and its alloys

Lead(Pb) and its alloys

Tin(Sn) and its alloys

Argentum(Ag) and its alloys

Small sample, special size sample and wire detection

Main features of the apparatus：

 Technical Features：

Optical System

1. Detection of base Fe、Al、Cu、Ni、Ti、Co、Zn、Sn、Mg、Pb etc

2. Par type Paschen-Runge structure full spectrum of the optical system;

3. Multiple high-performance CCD detectors;

4.Integration of optical chamber forming, dynamic Romanian archives park installation, resistance to environmental temperature changes;

5. Light vacuum chamber designed to ensure the C, S, P, N to achieve the best performance;

6. Ray room temperature control, constant temperature of 35℃;

7. Direct MgF2 lens optics technology and materials to ensure the best energy C, S, P, N ultraviolet wavelengths.

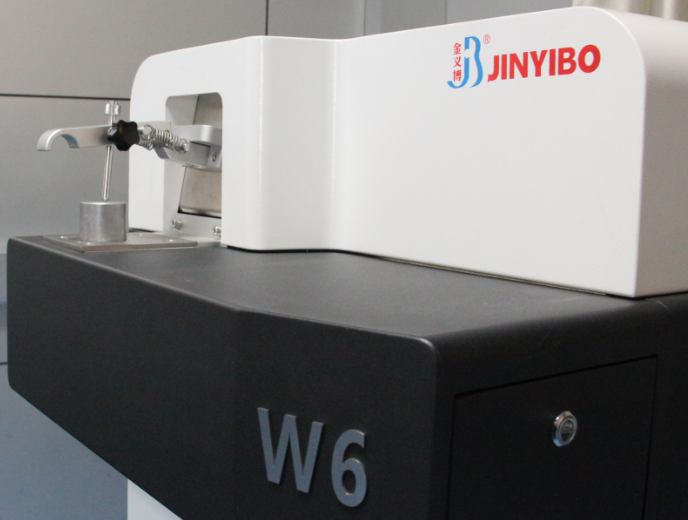

Sample excitation station

1. Integrated manifold, injection electrode technology;

2. Optimization of argon gas circuit design ensures effective cooling station excite and motivate metal dust generated in the process effectively into the filter; the sample excitation is more stable, and greatly reduce the body's intake of metal dust, help protect the operator health and safety;

3. Smaller excitation space, argon gas consumption less;

4. Easy to use sample holder;

5. With the function of the electrode electrode should sweep, longer service life, easy cleaning electrode;

6. 13 mm aperture stimulate a more conducive sample analysis;

7. Open sample excitation table can be adapted to a variety of sizes, shapes analyze more samples (with cable);

8. SLR Lens device design, the general staff can facilitate the maintenance of the excitation and lens cleaning.

Excitation light source

1. New adjustable digital light source, the highest frequency up to 1000Hz;

2. High energy prediction technology (HEPS);

3. Optimized design of the control and power circuits, improve security features excite;

4. Provide the best analysis for different target spark, an arc or a combination of excitation waveforms;

5. Discharge current: 400 A Max.

Data Acquisition System

1. High performance ARM data processor, with ultra high-speed data acquisition and control functions

2. High performance CCD solid-state detection technology, spectrum bands within the full spectrum reception;

3. External computer (optional);

4. FPGA and high-speed data communication technology, data is read into a powerful, test data is read as a whole a short time.

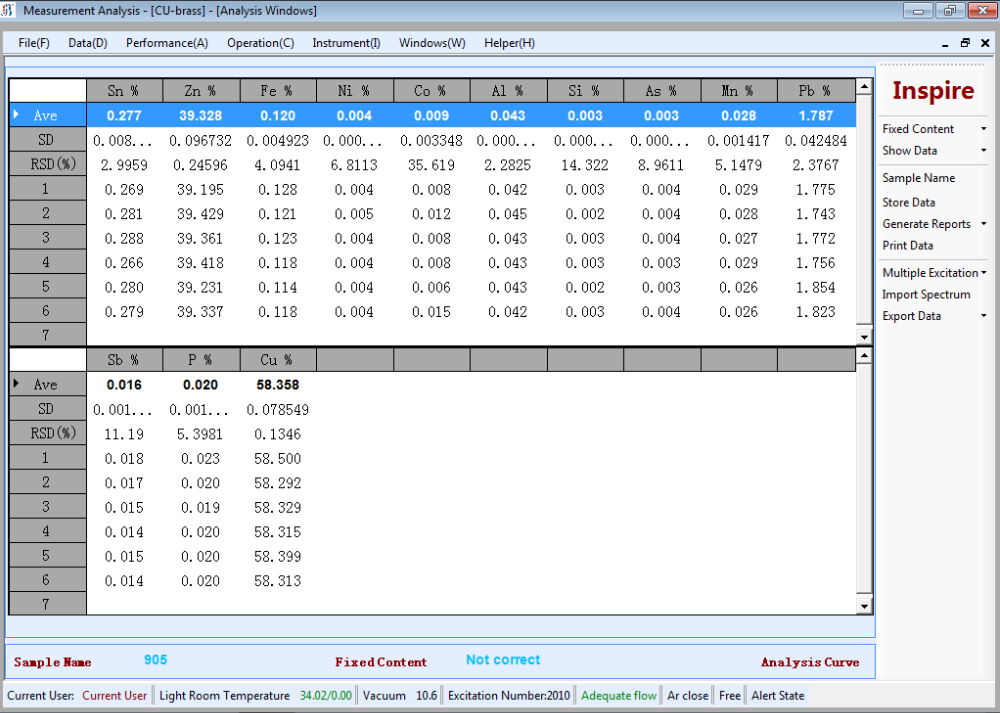

Analysis Software

1. CCD-based multi-language Windows system full spectrum graphical analysis software, convenient and practical;

2. Comprehensive management control of the entire measurement process and provide users with powerful data processing capability and test report output capacity;

3. Instrument can be configured with multiple factory calibration curve and more material analysis and advanced solutions;

4. Software to achieve full spectrum of detection, intelligent deduction interference, buckle dark current, background and noise algorithms to improve analytical instruments;

5. Complete automatic system diagnostics;

6. Comprehensive database management functions can be easily query, summary data;

7. Intelligent correction algorithms to ensure stable and reliable instrument;

8. Complete spectrum of information and interference deduction algorithm to ensure more accurate instrumental analysis;

9. Adapt to the latest Windows operating systems.

Parameter：
