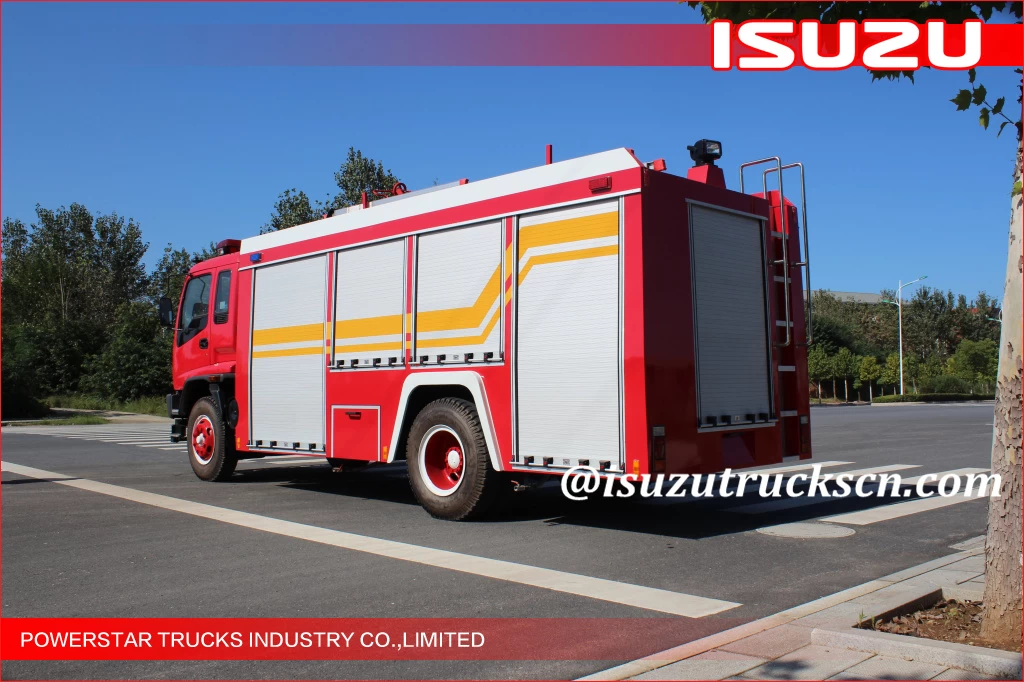

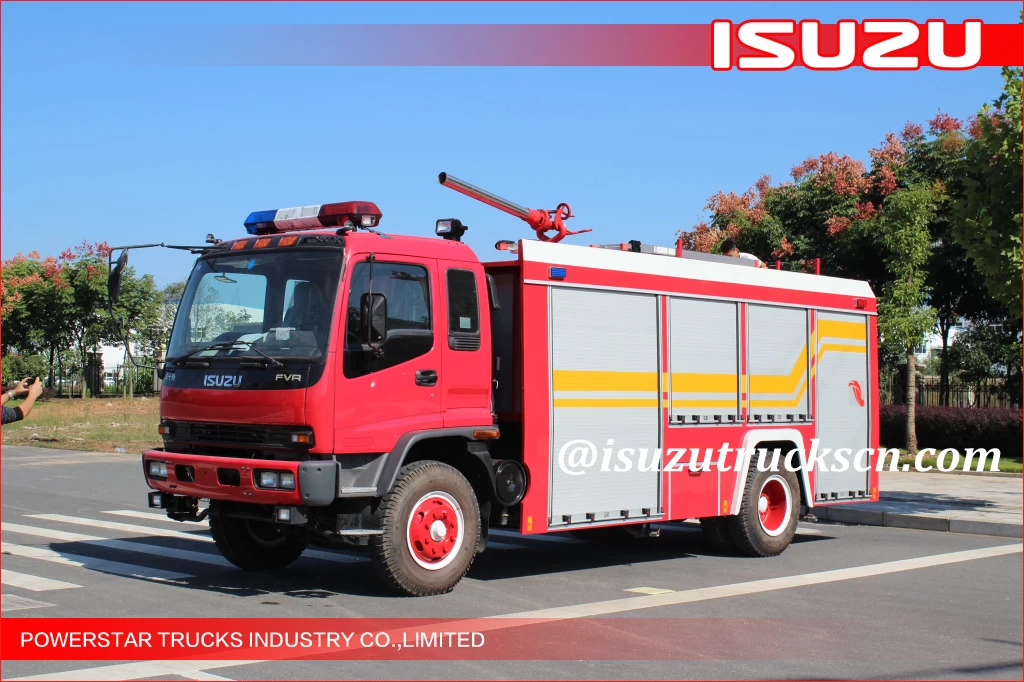

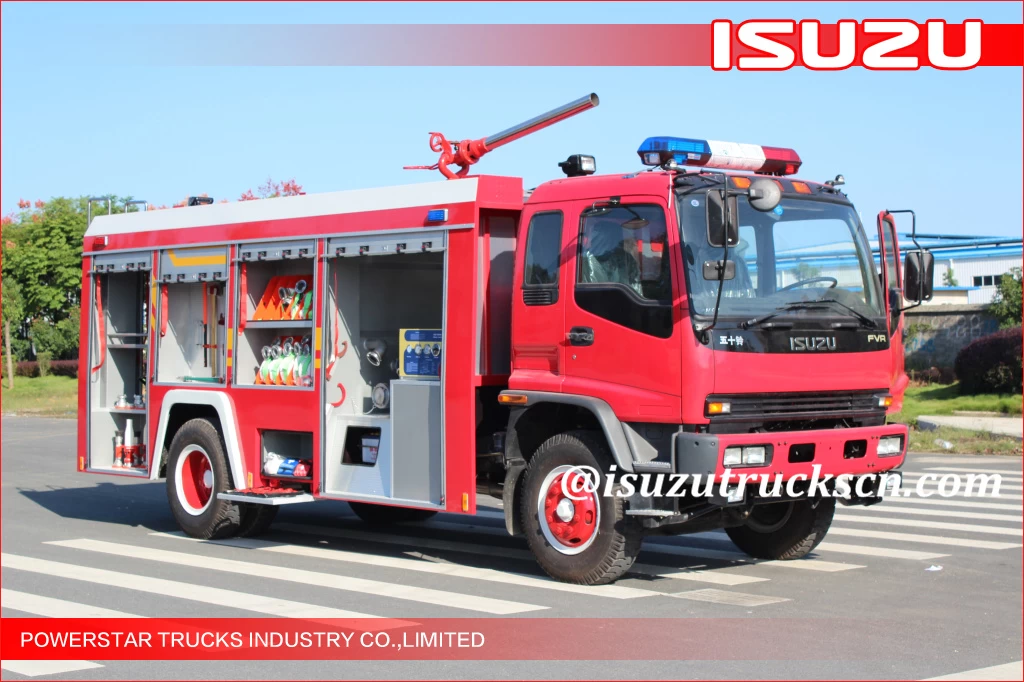

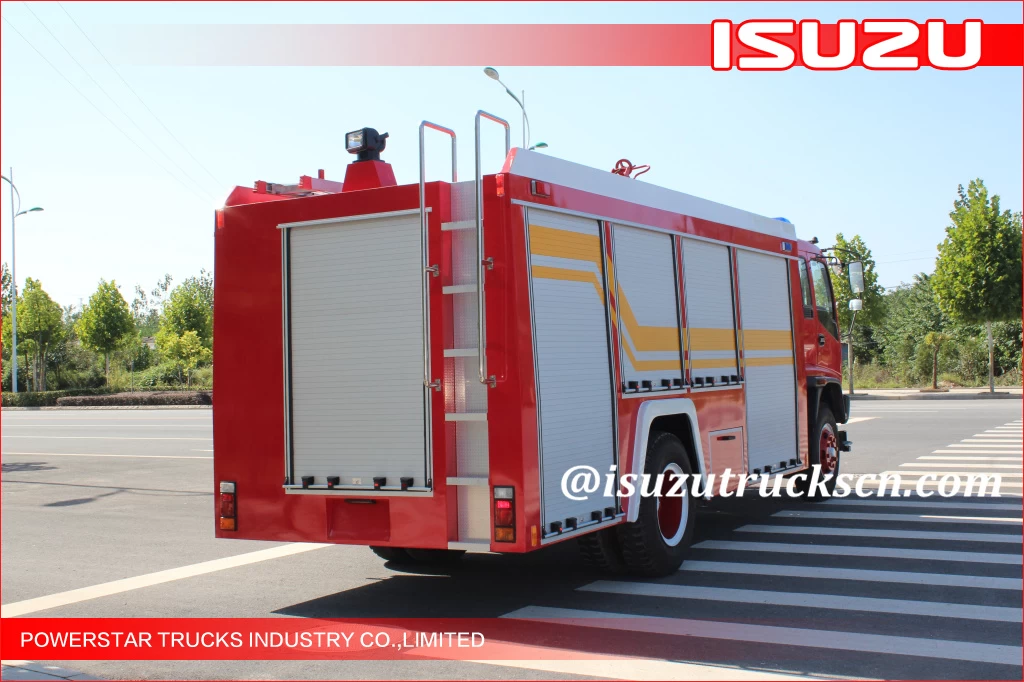

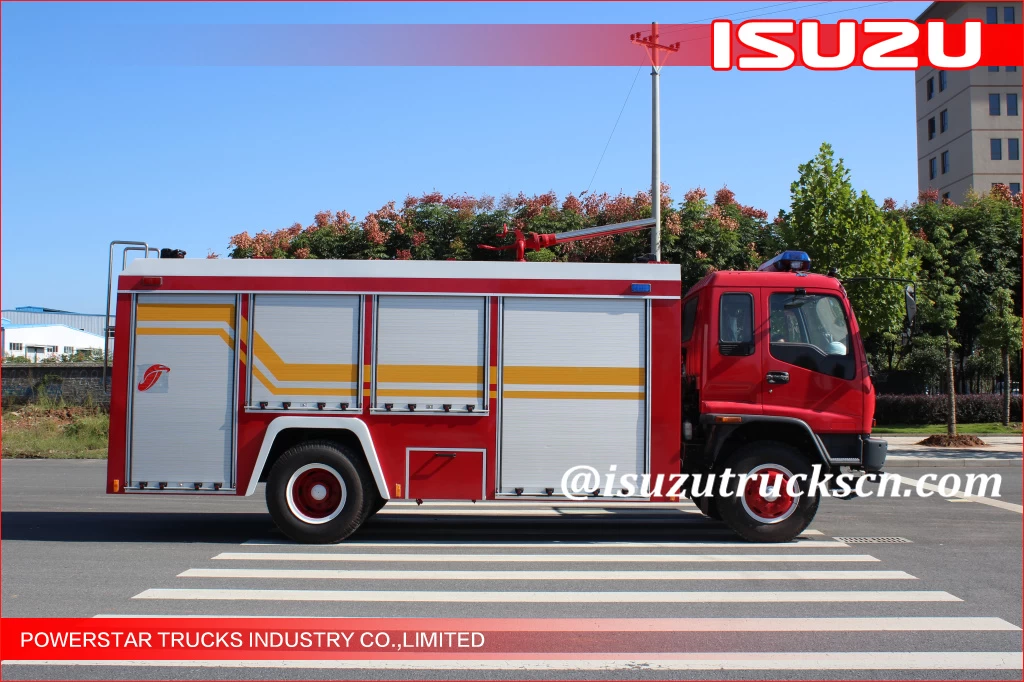

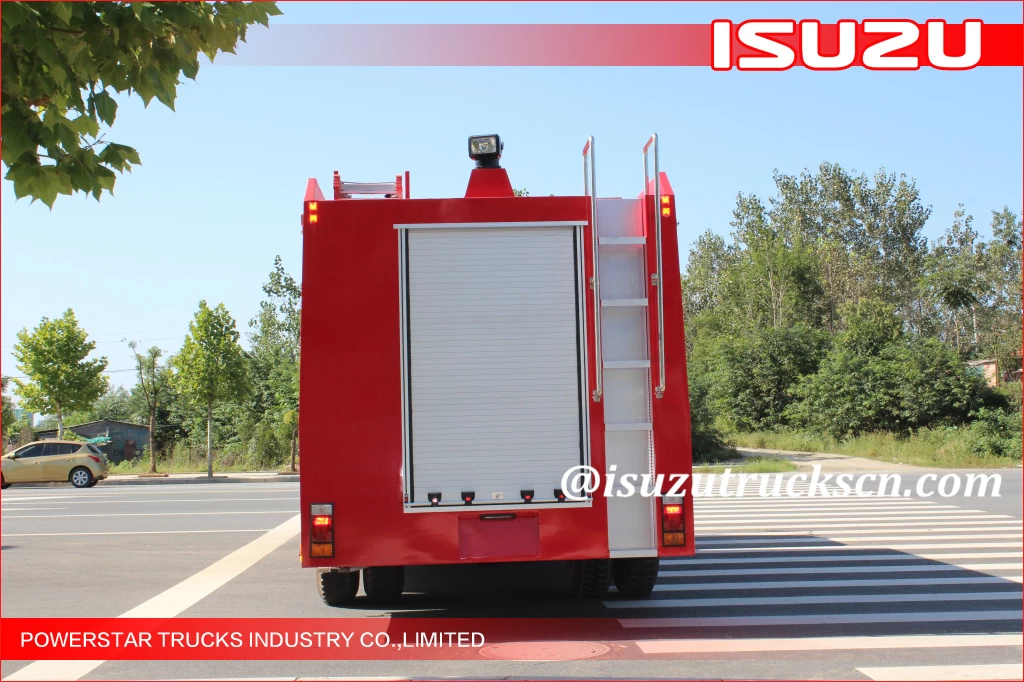

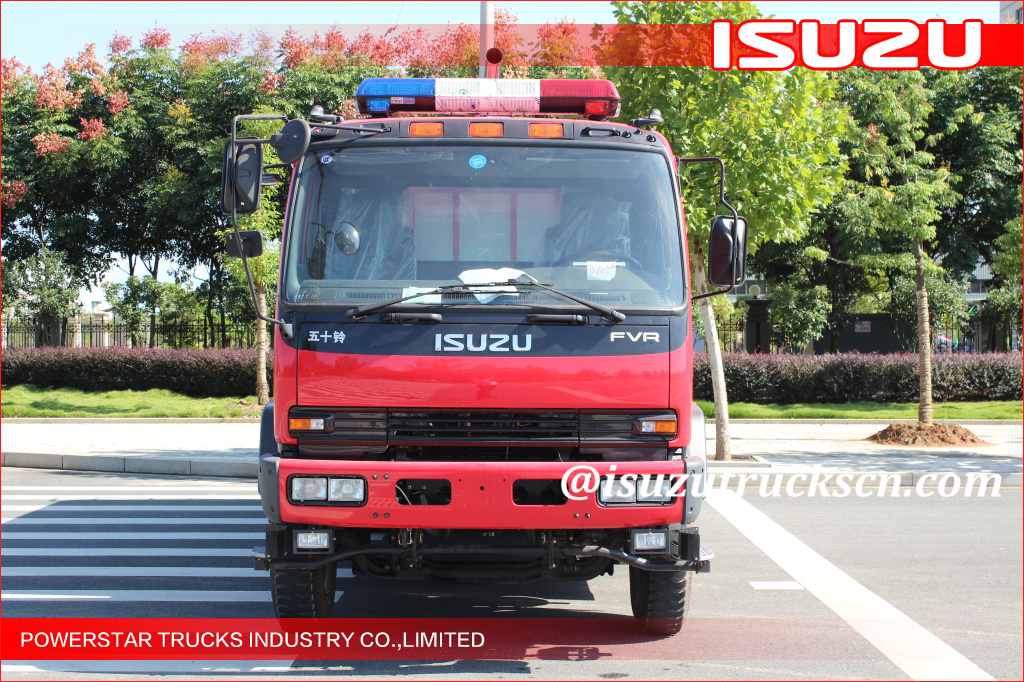

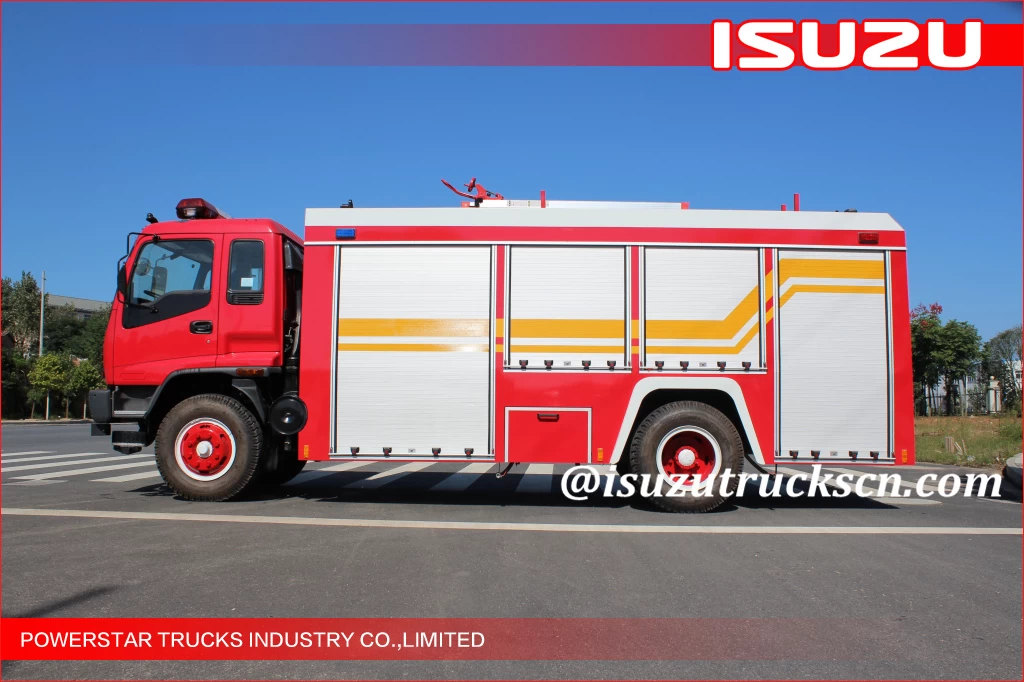

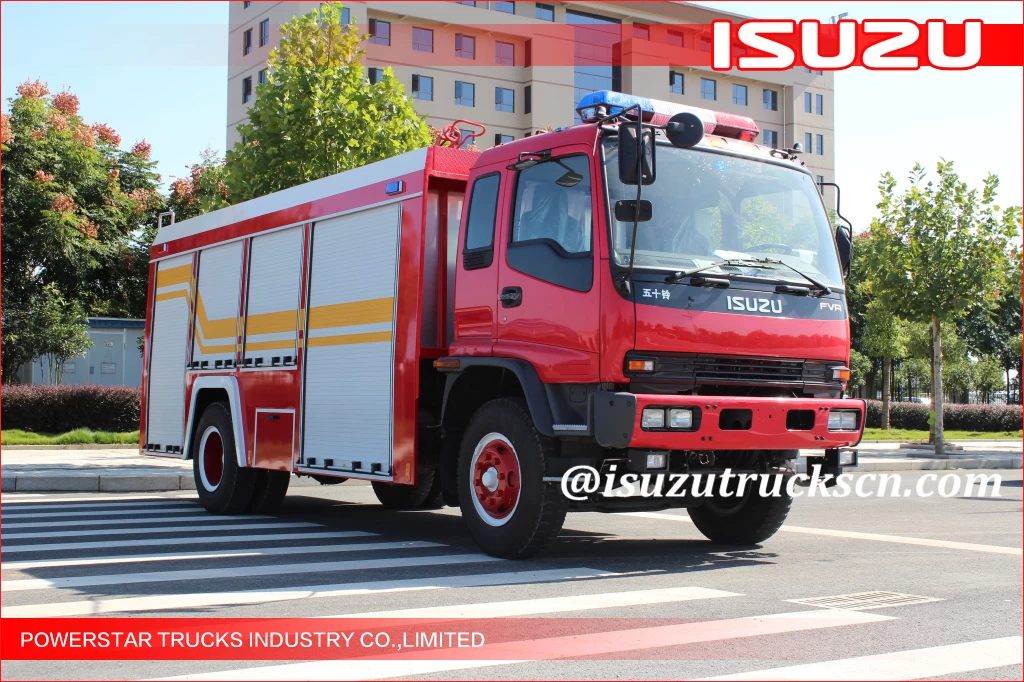

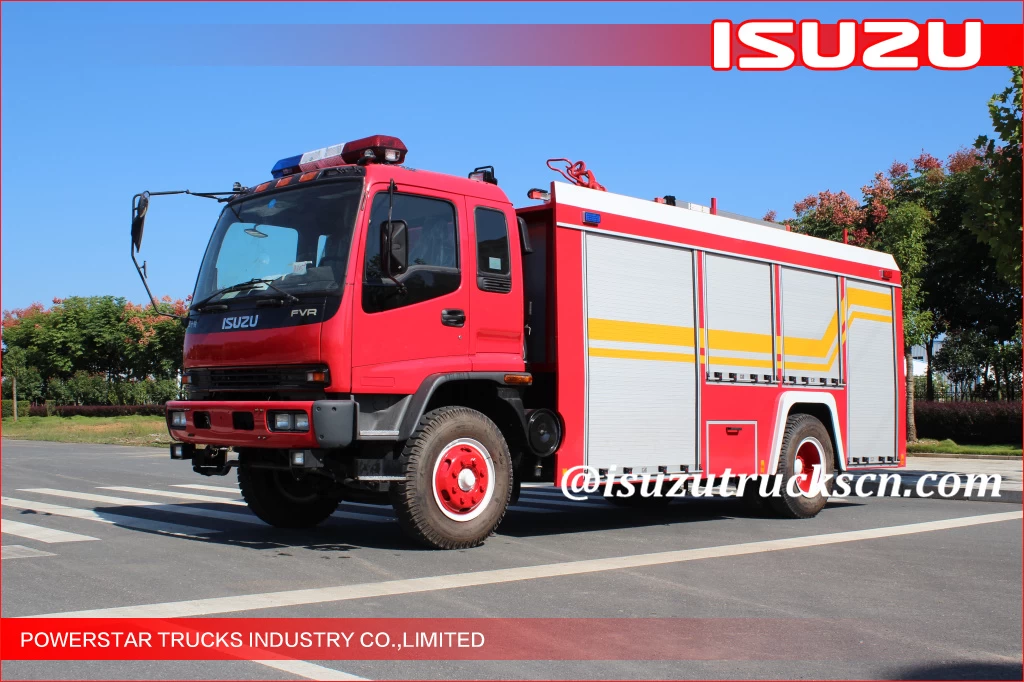

Armenia 4x2 5000L Single cabin Water
Foam Fire Truck Isuzu
Description:
Water Foam Fire Truck ISUZU (also called as water foam fire fighting truck, fire fighting vehicle, emergency rescue fire truck, foam fire engine, fire fighting water truck, powder fire truck, fire pumper, fire tender ) This Isuzu Fire fighting trucks are designed with stand the prevailing humen conditutions, much as ambient temperature, maximum relative humidity, the sand, the dust and the influence of high salinity condtions.
Fire fighting trucks types: Water fire truck, Foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.
Features:
ISUZU FVR Chassis, Durable & Performance.
High performance fire pump and fire cannon
Tanker material: Carbon steel or Stainless steel
A complete set of fire fighting Accessories & Equipments, your can put work immediately.
FREE training in our factory if customers need.
Specifications
|
Chassis
|
FVR
Heavy-duty chassis for Fire-fighting application
|
|
Model
|
PT5160GXF
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4500
mm
|
|
Overall Dimension
|
8105mm×2500mm×3450mm mm
|
|
Tank capacity
|
4000L water + 1000L foam
|
|

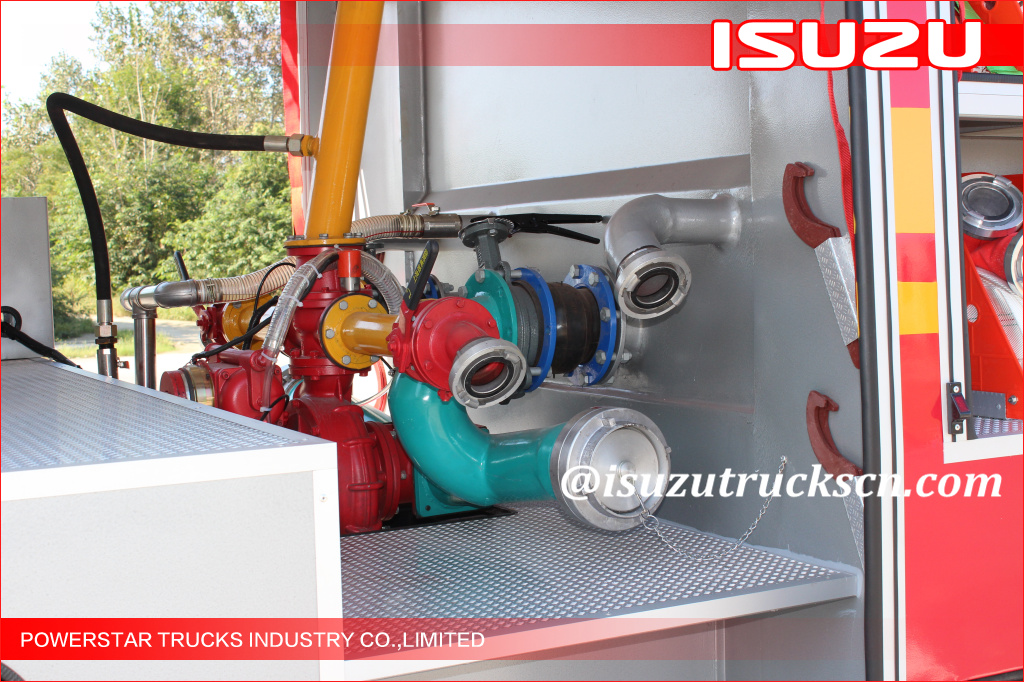

Fire Pump
|
Rated low
pressure:1.0MPa, Flow rate:40L/S. Rear-mounted，Water delivery time：≤35s
|
|

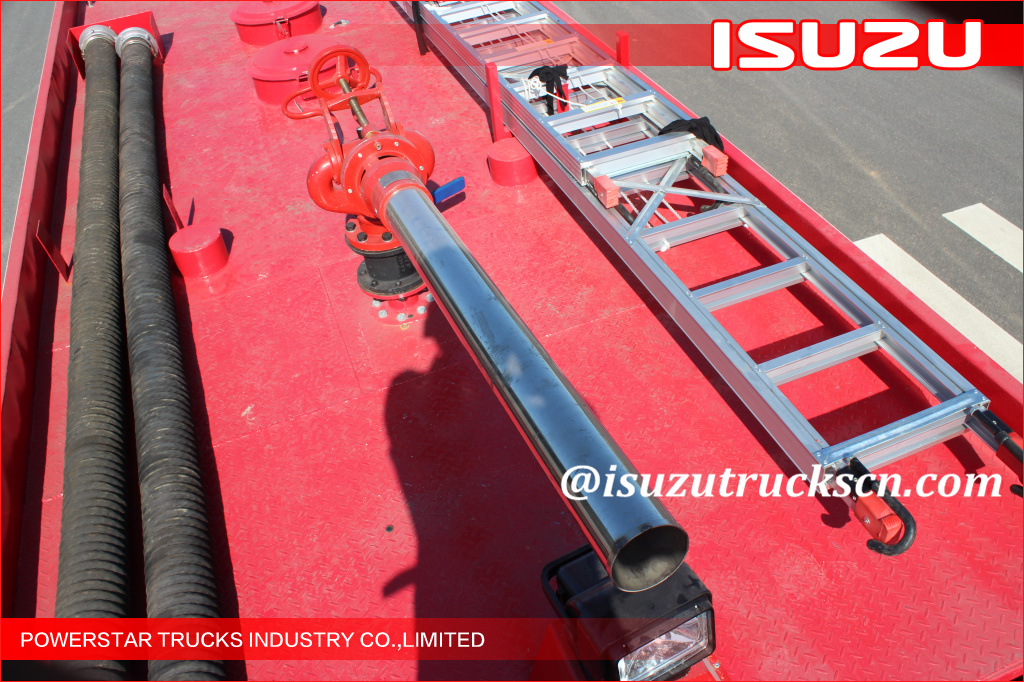

Fire Cannon
|
Rated
pressure≤1.0MPa,Rated Flow rate:30L/s, Throw
range≥50m, Rotation angle：360°,
|
|
Cab
|
Single cab with Two
doors, 3 seats with safe belts.
|
|
Engine
|
Model:
|
6HK1-TCNG40
|
|
Type:
|
Diesel,
turbo charged inter-cooled, 6 cylinder
|
|
Max.
Power:
|
177
KW (240HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
10.00-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
90
km/h
|

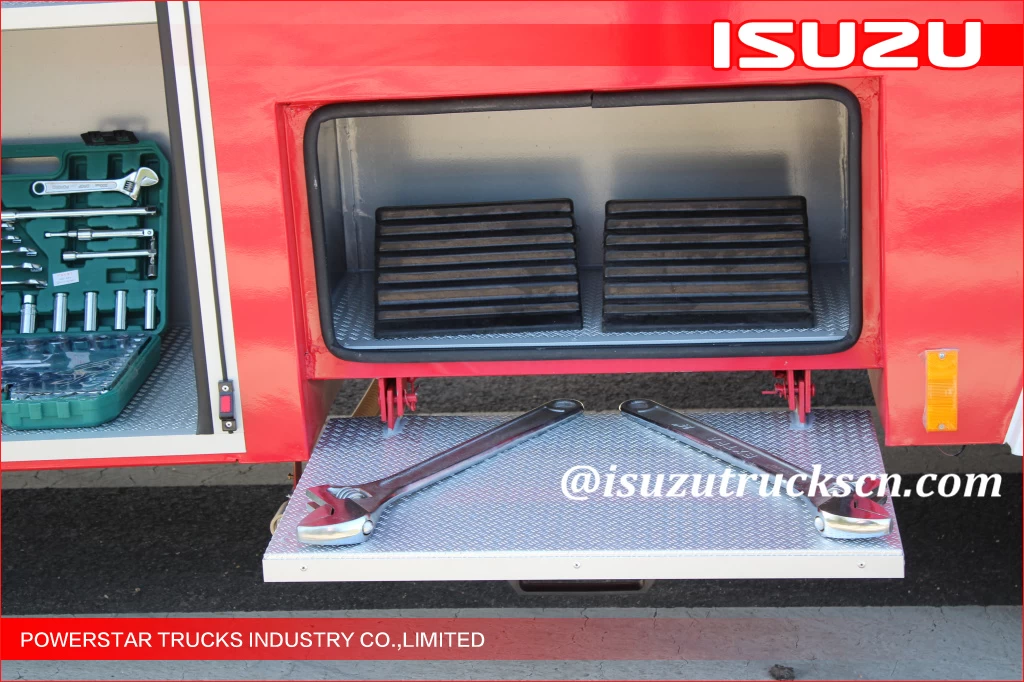

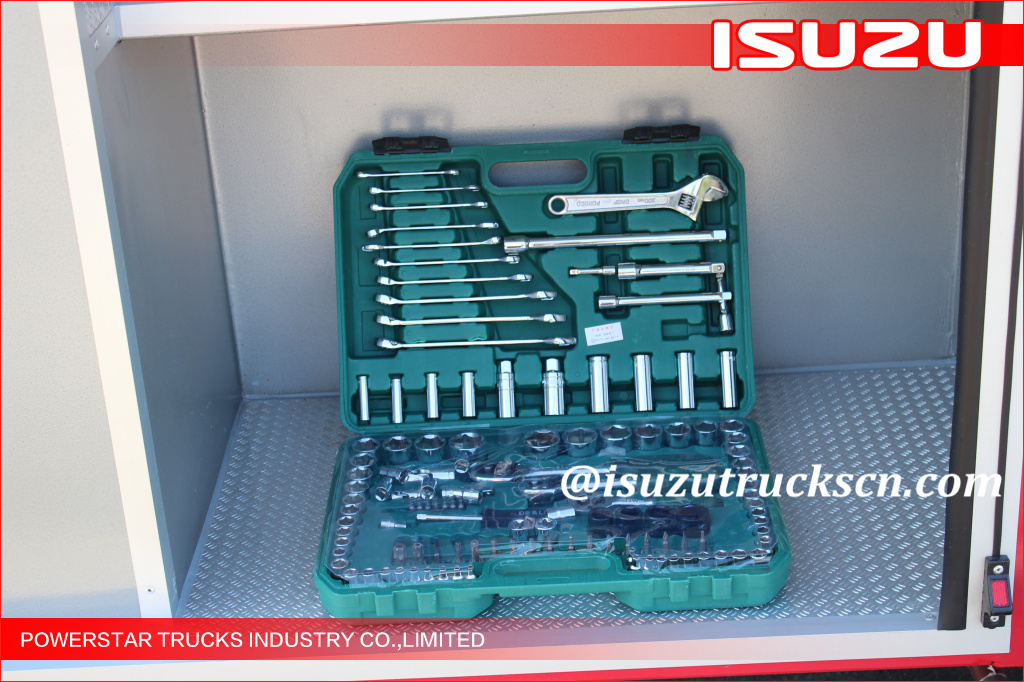

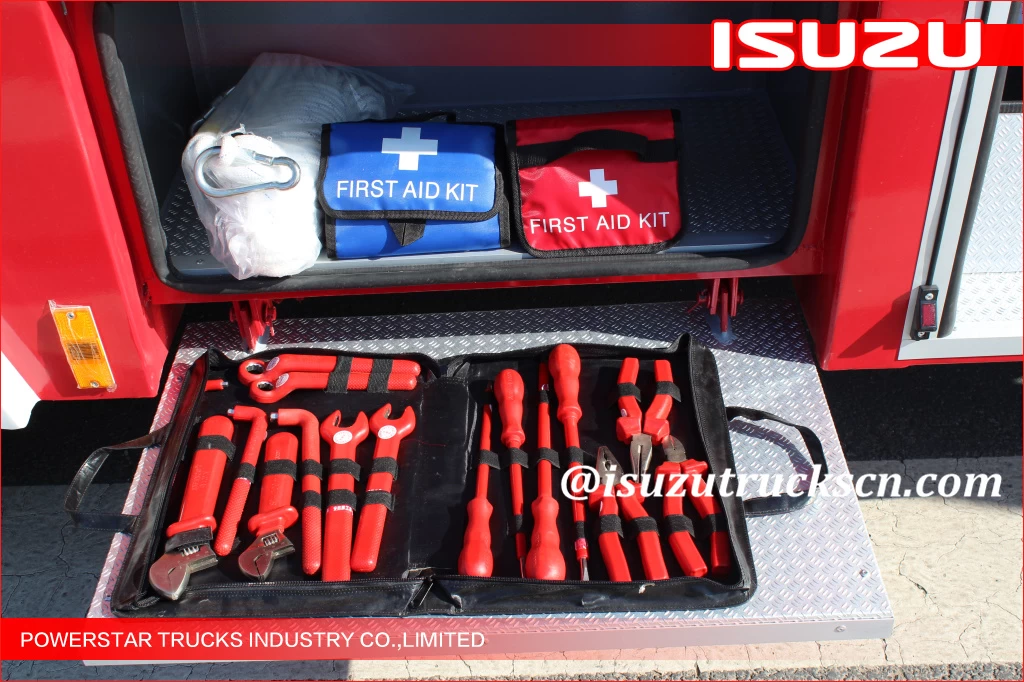

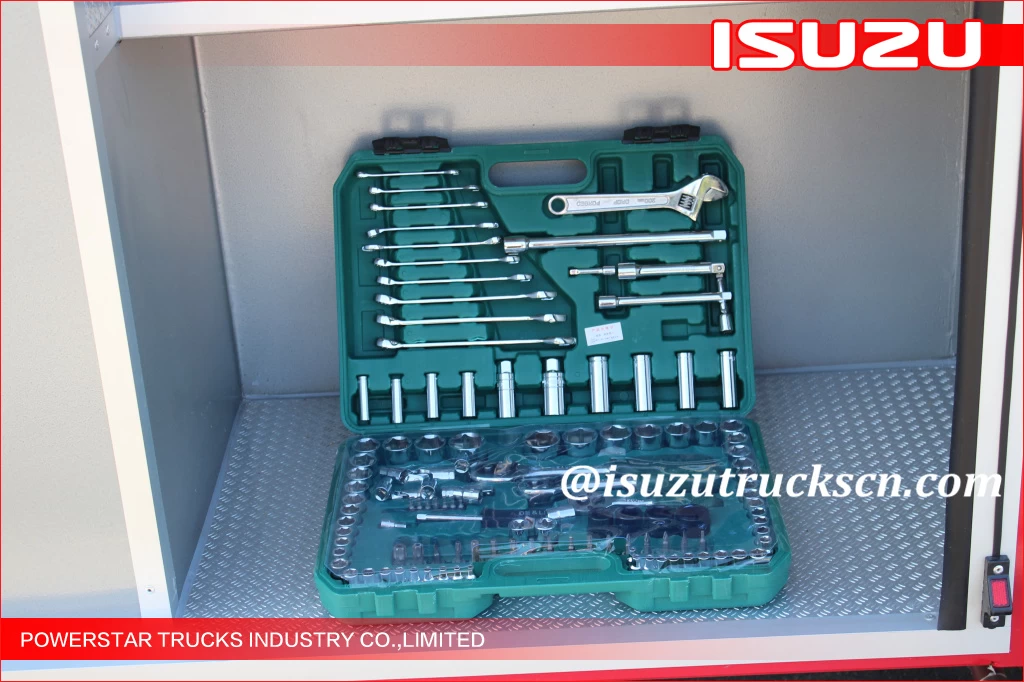

Accessories List:
(With below equipment,
you can put into fire-fighting immediately)

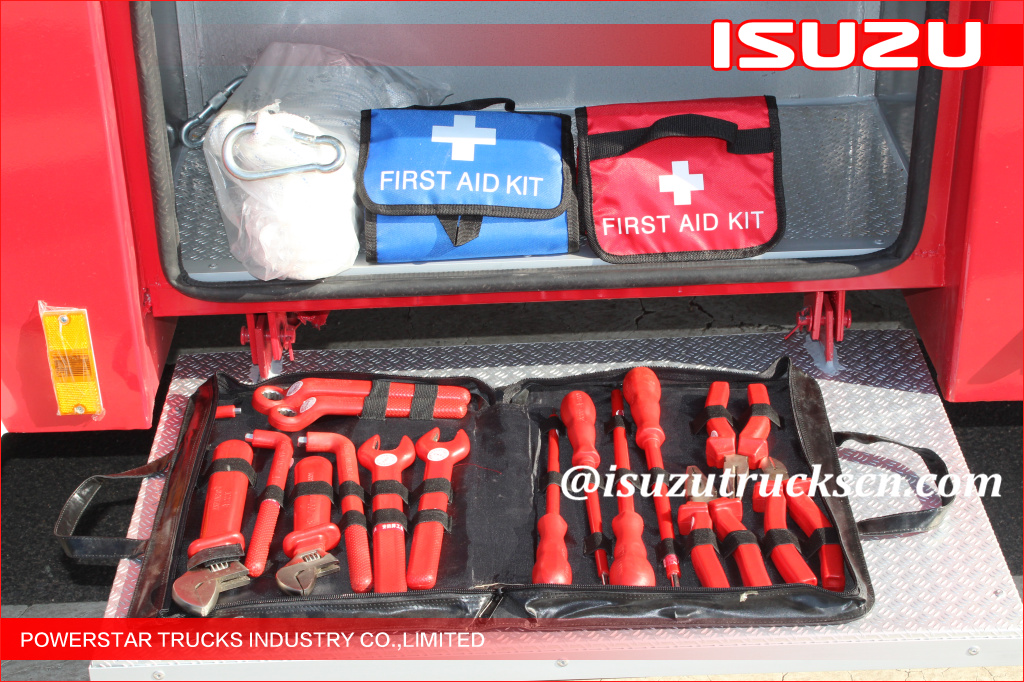

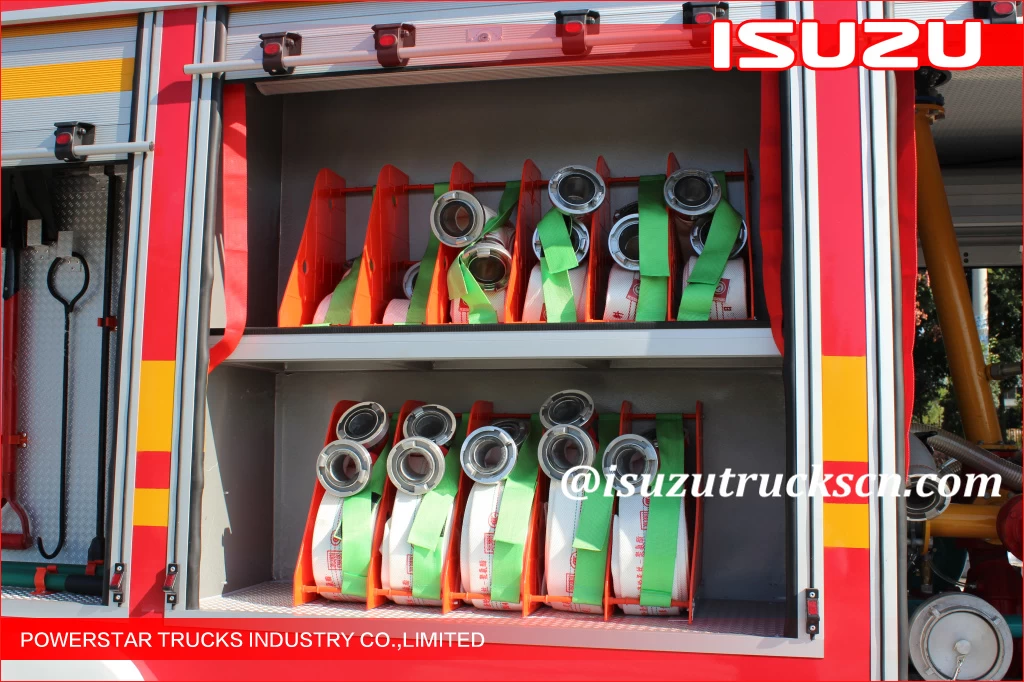

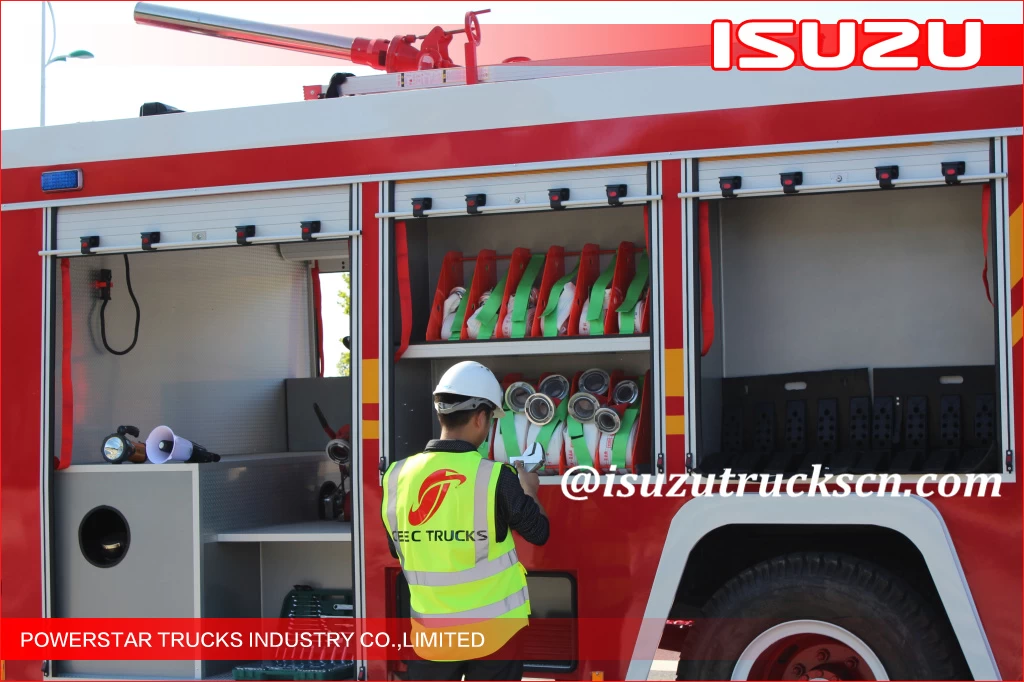

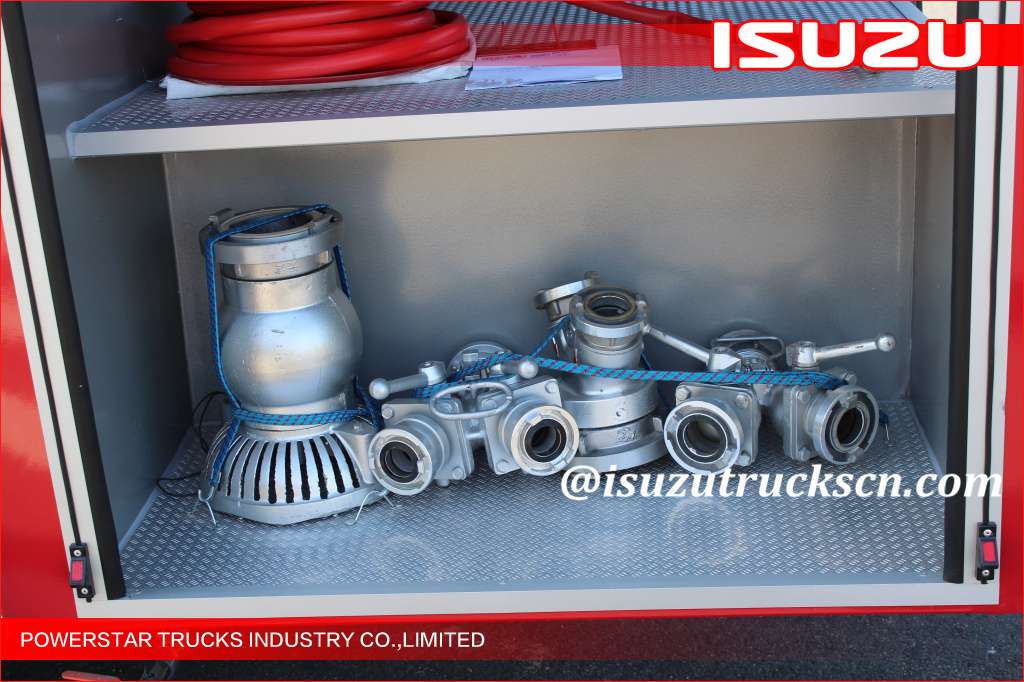

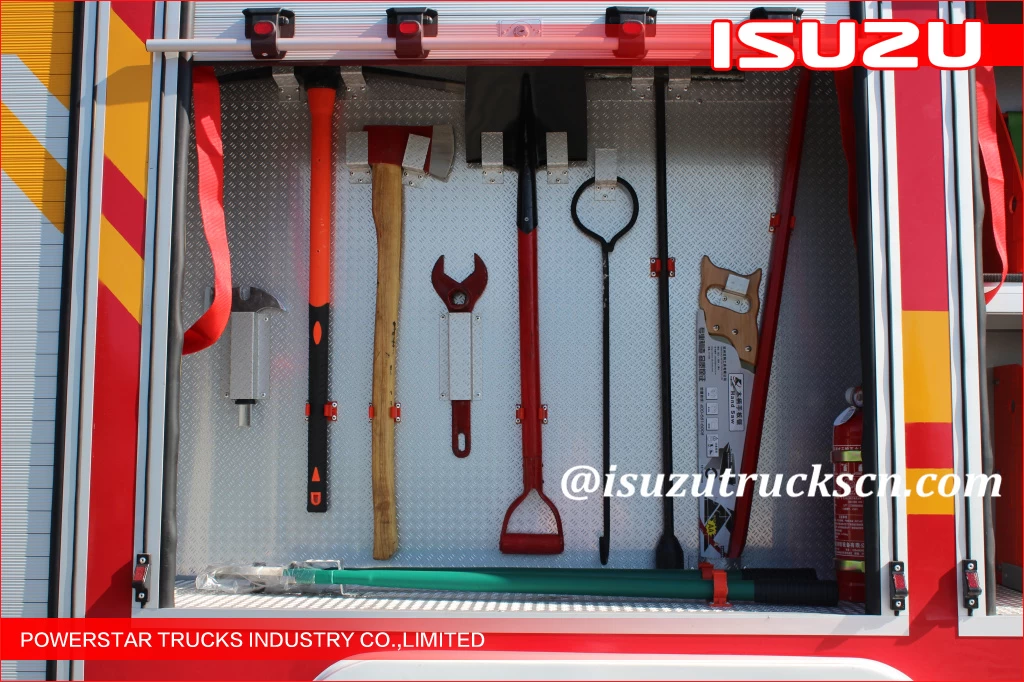

Fire Equipments:
Performance Testing:
Recently Customer
Build Examples:
