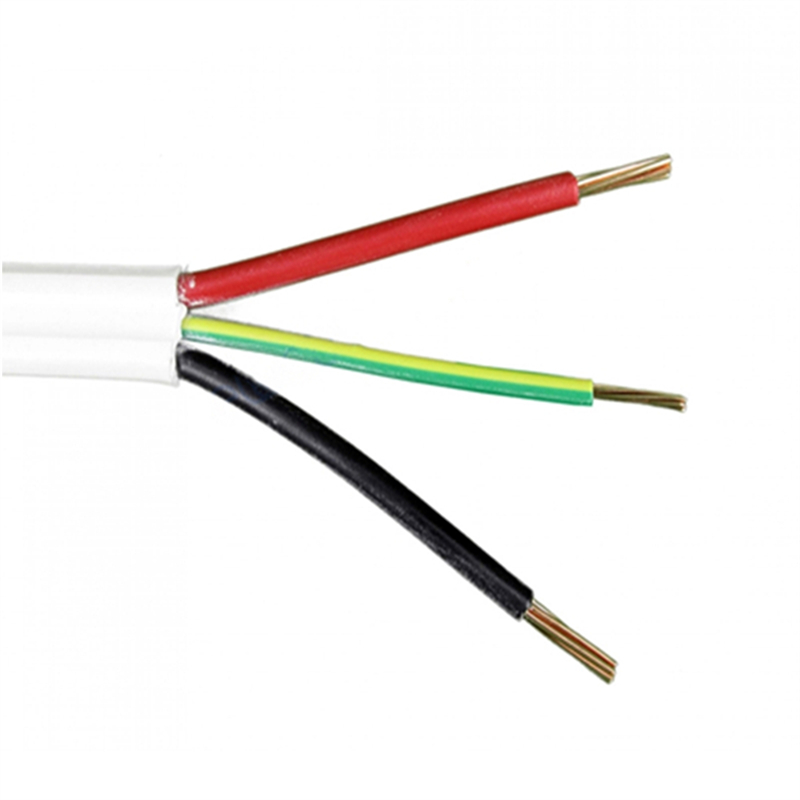

AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables
PRODUCTS NAME
AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables
PRODUCTS KEYWORDS
BVVB, AS/NZS 5000.2, flat TPS cable, flat TPS and earth cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables, the BVVB flat TPS cable is used in building wiring, installation on insulator or cable conduit, and widely used in household appliances. But cables cannot be installed in conduit or buried underground. BVVB flat twin cable, it is simply understood that 2 or 3 pieces BV cables are placed in parallel, and a layer of sheath material is added outside, the cable’s surface and appearance is flat, is not round.

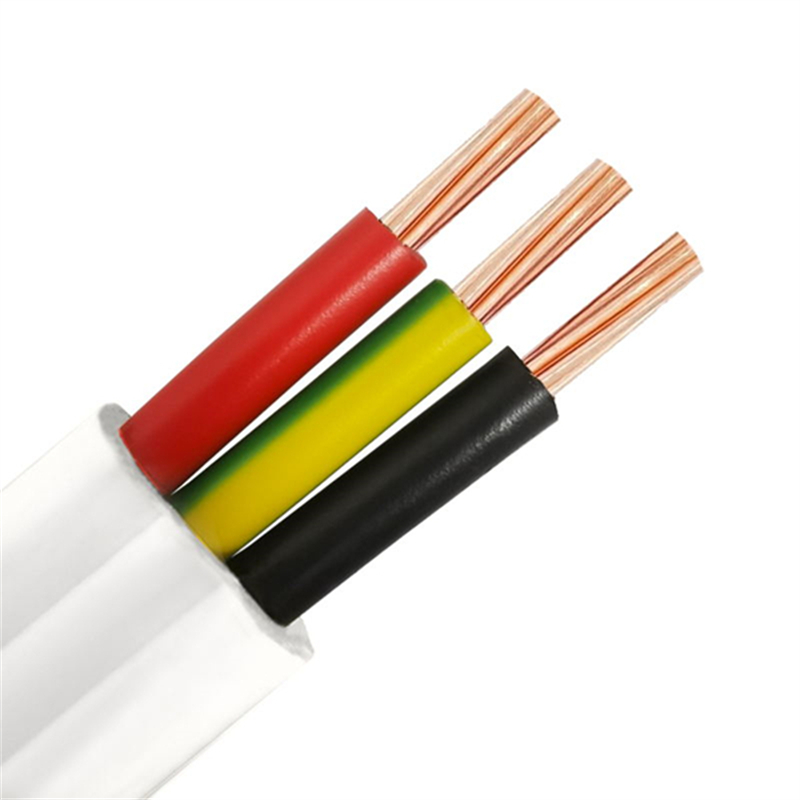

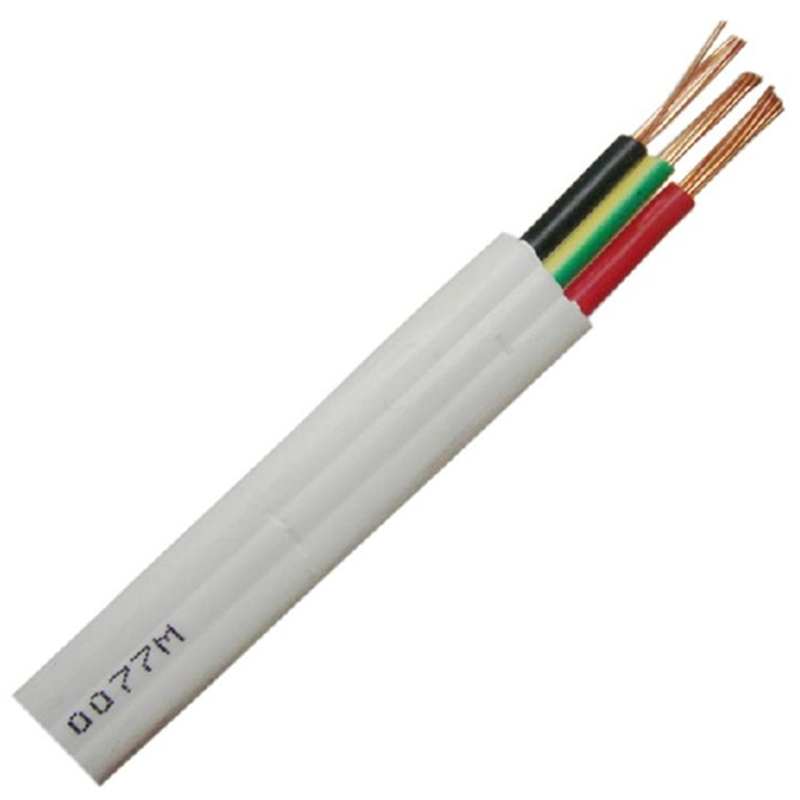

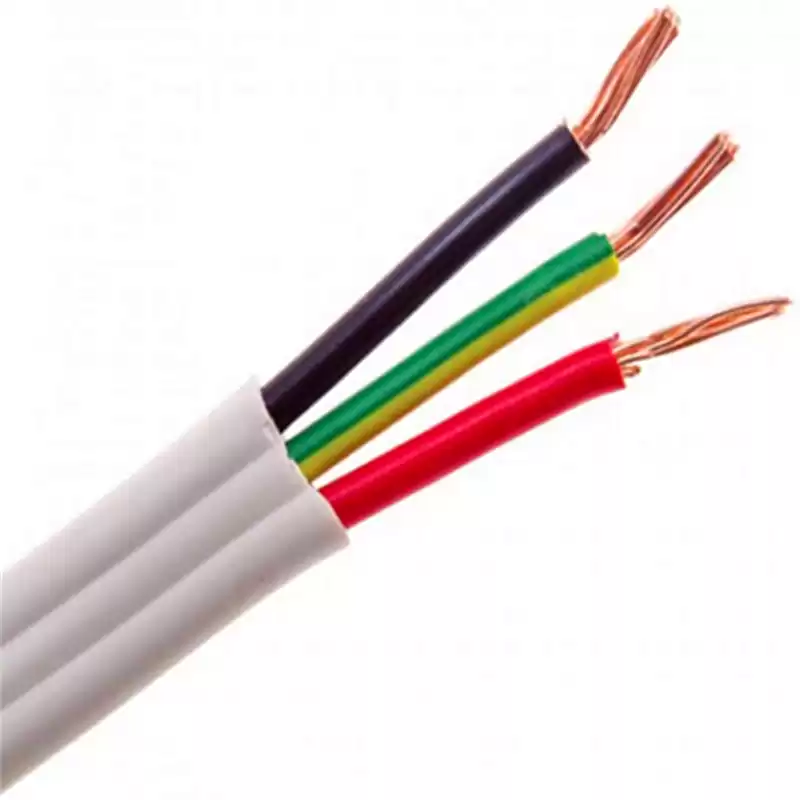

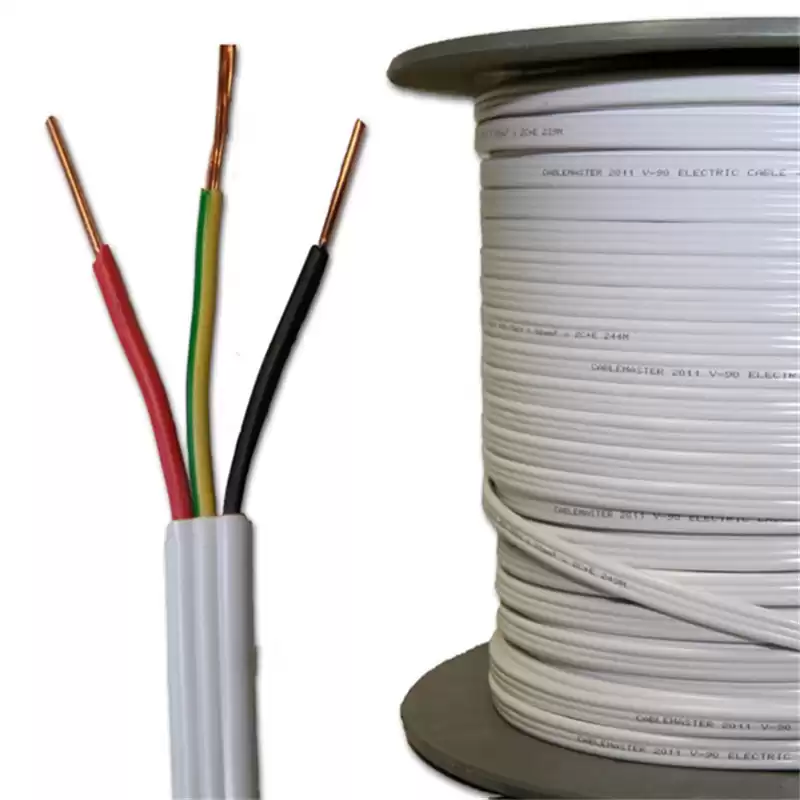

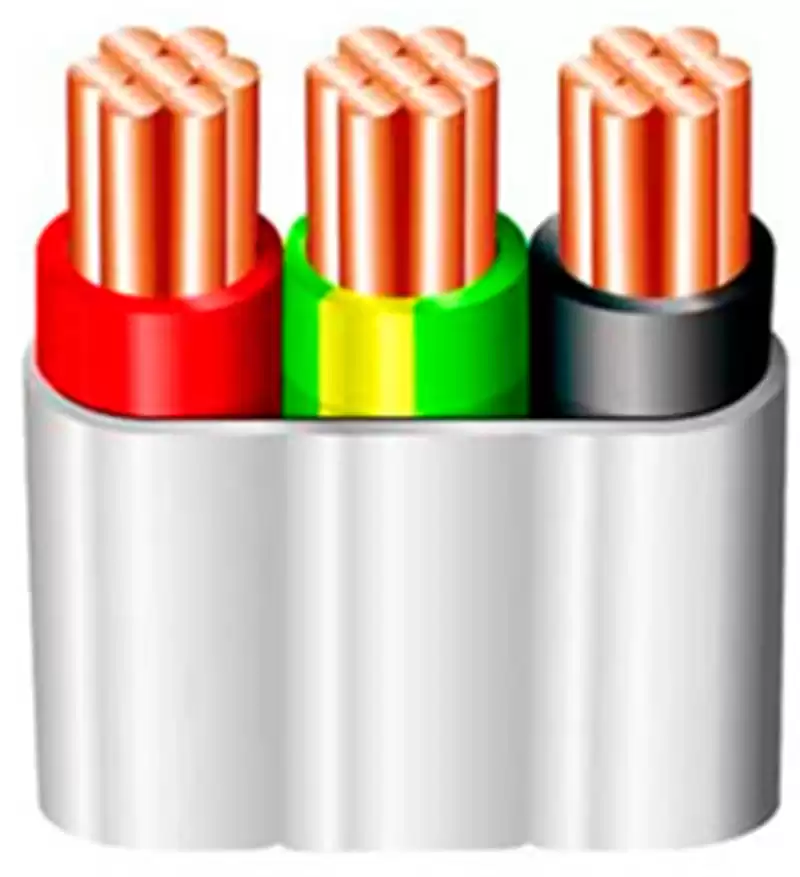

PRODUCTS STRUCTURE
AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
V-90 PVC (polyvinyl chloride).
---Sheath Material
3V-90 easy-tear PVC (polyvinyl chloride).
---Core Number
2 Cores, 3 Cores; 2C, 3C, 2C+E.
---Products Surface
Flat, it is not ground and circular.
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
AS/NZS 5000.2 BVVB Flat TPS PVC Insulated
Electrical Cables.
|
|
Products Size
|
2x2.5+1x2.5mm2.
|
|
Conductor Material
|
Plain annealed copper wire, Class 2 stranded.
|
|
Conductor Structure
|
2C x 7/0.68 mm.
|
|
Insulation Material
|
V-90 PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.7 mm.
|
|
Insulation Colour
|
Red, black.
|
|
Earth Conductor
|
Plain annealed copper wire, Class 2 stranded
|
|
Earth Conductor Structure
|
1C: 7/0.68 mm.
|
|
Earth Insulation
|
V-90 PVC (Polyvinyl Chloride)
|
|
Earth Insulated Thickness
|
0.7mm
|
|
Earth Colour
|
Yellow/green
|
|
Sheath Material
|
3V-90 easy-tear PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
1.0 mm.
|
|
Sheath Colour
|
White.
|
|
Core Number
|
2 cores plug earth, 2C+E.
|
|
Out Diameter
|
5.4 x 12.2 mm.
|
|
Voltage Rate
|
450/750V (U0/U).
|
|
About Net Weight
|
140 kg/km.
|
|
Production Standard
|
AS/NZS 5000.2.
|
|

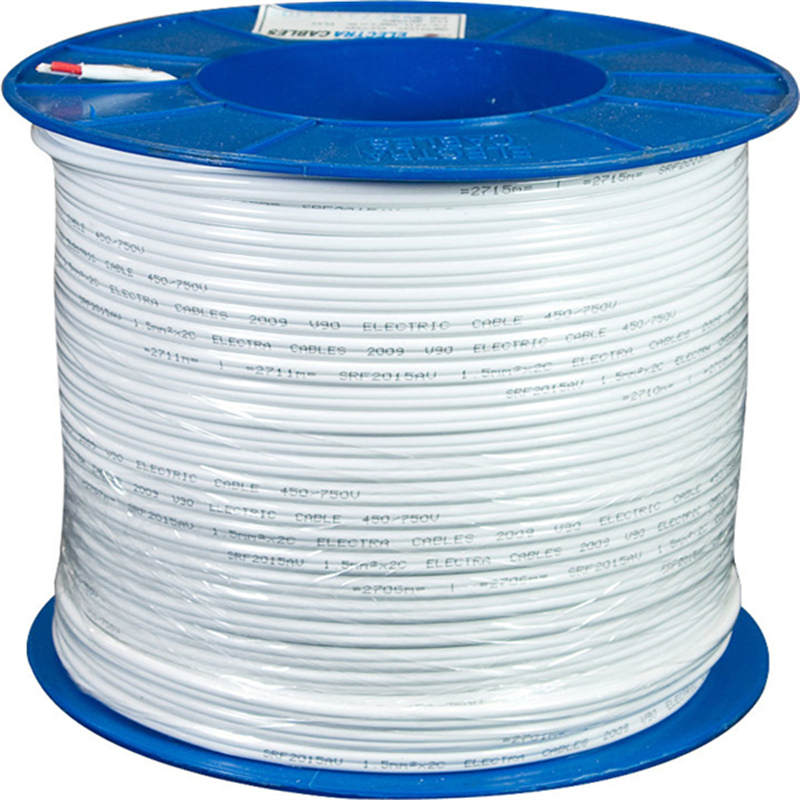

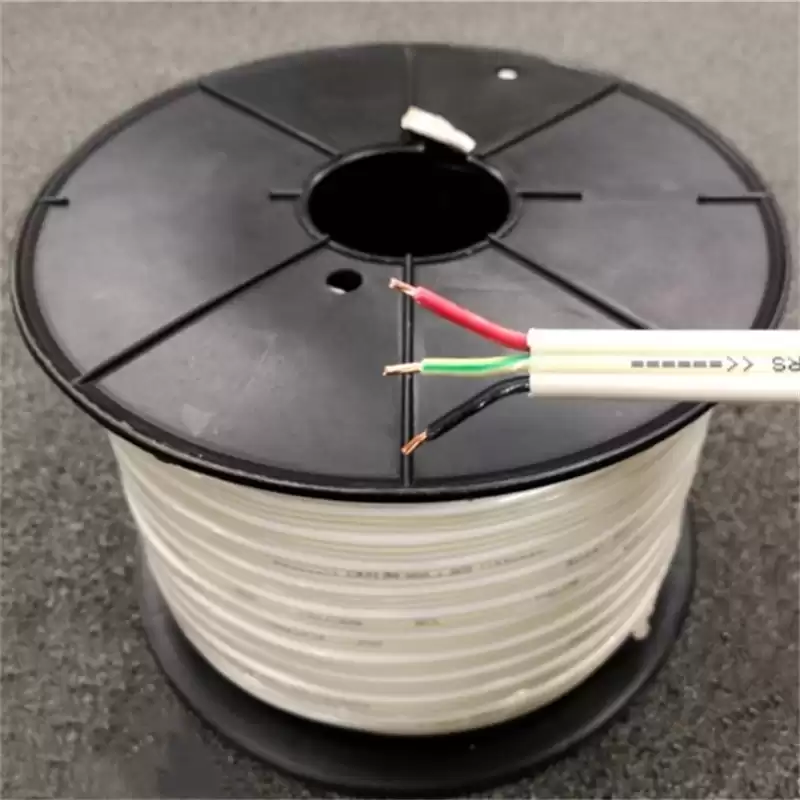

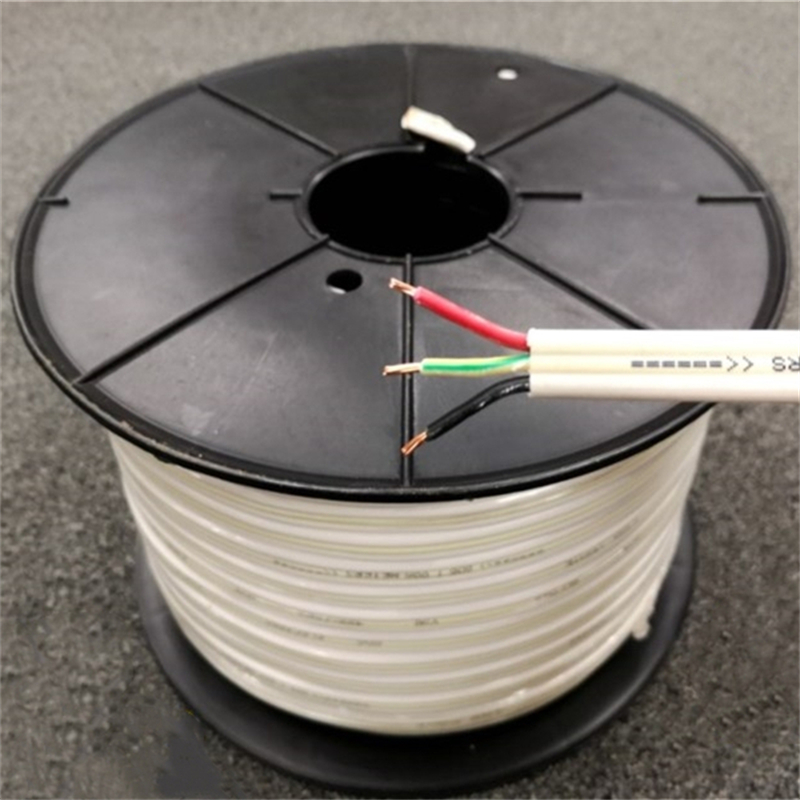

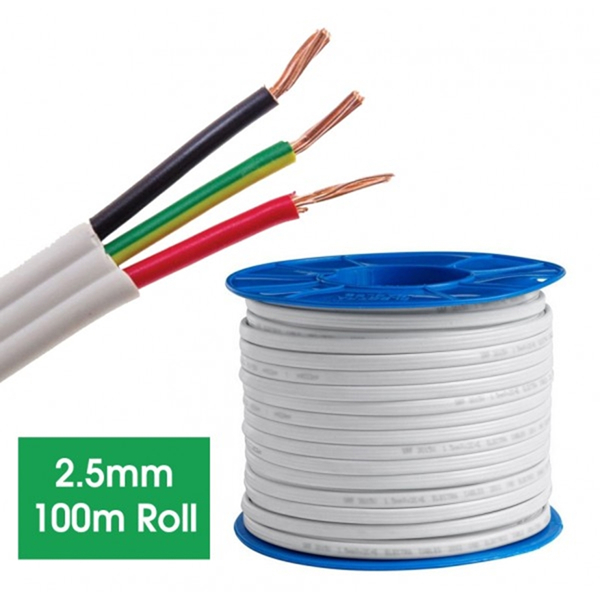

Packing Type
|
100m/roll; 100 meters per plastic reel, or according to
the customers requirements.
|
