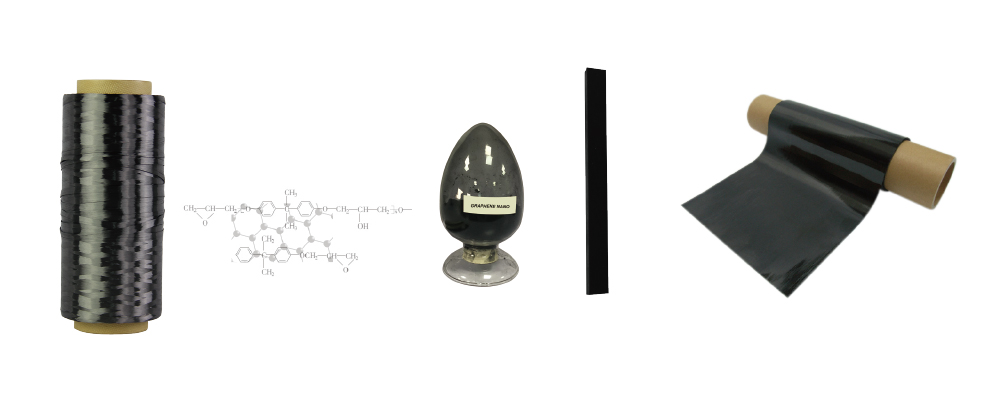

NEW NANO GRAPHENE CARBON RIMS
|
Toray T700/T800 carbon fiber
|
Regular Resin
Add 5% strength
|
 Regular Prepreg
|
vs
|
Toray T700/T800 carbon fiber
|
Graphene Resin
Add 15%-20% Strength
|
 Graphene Prepreg
|
We offer upgraded options for the ASD mtb rims
|

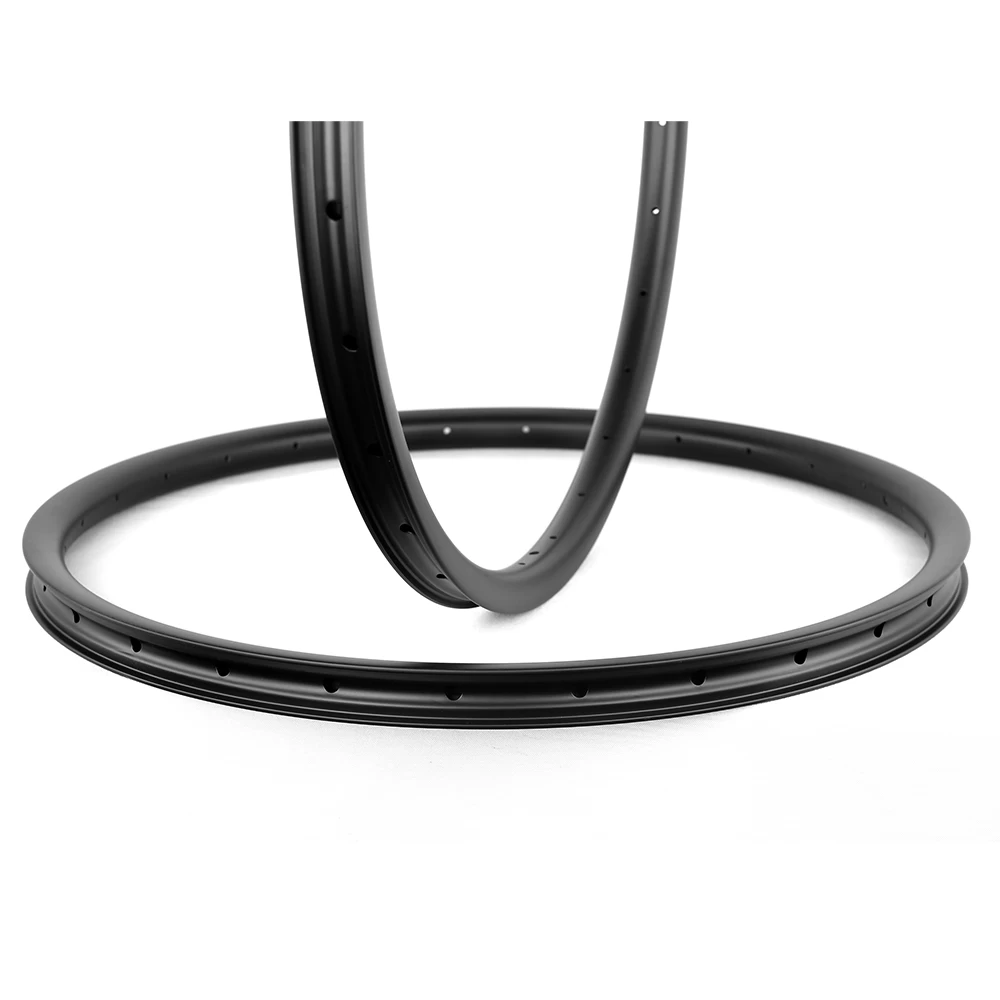

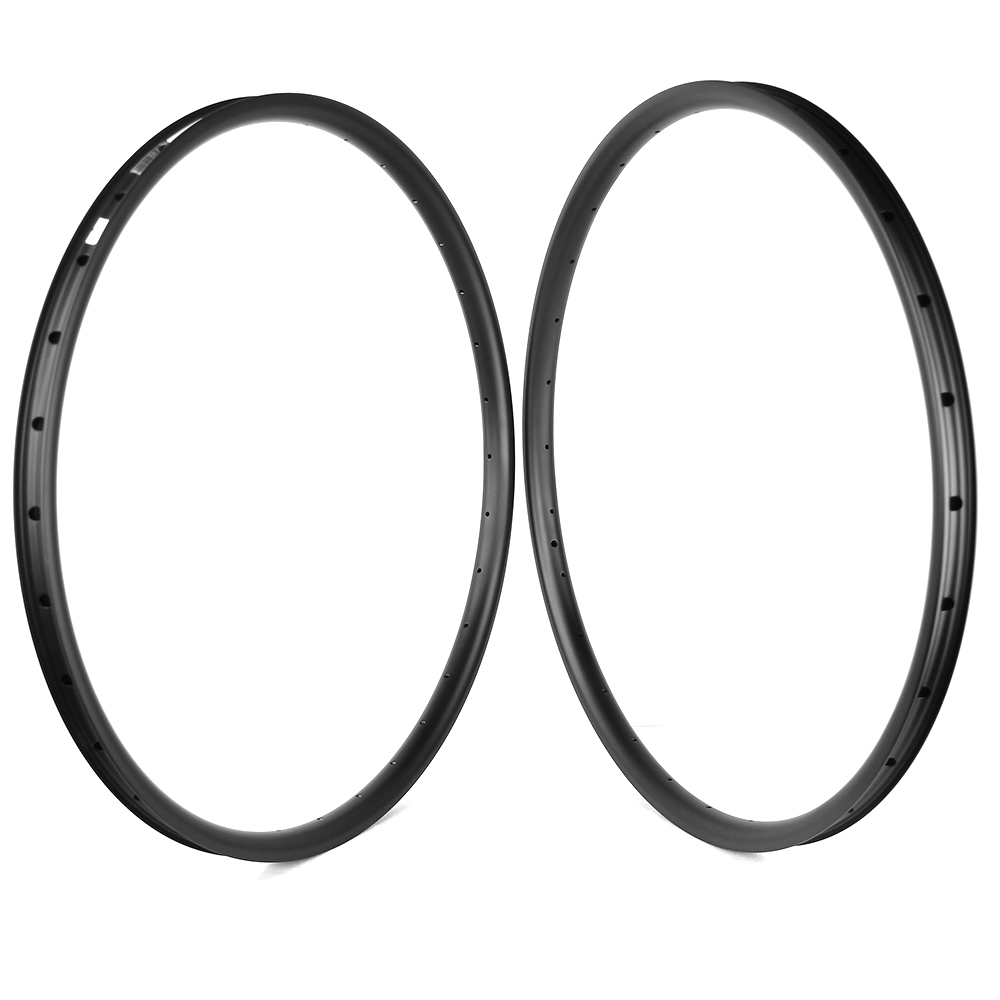

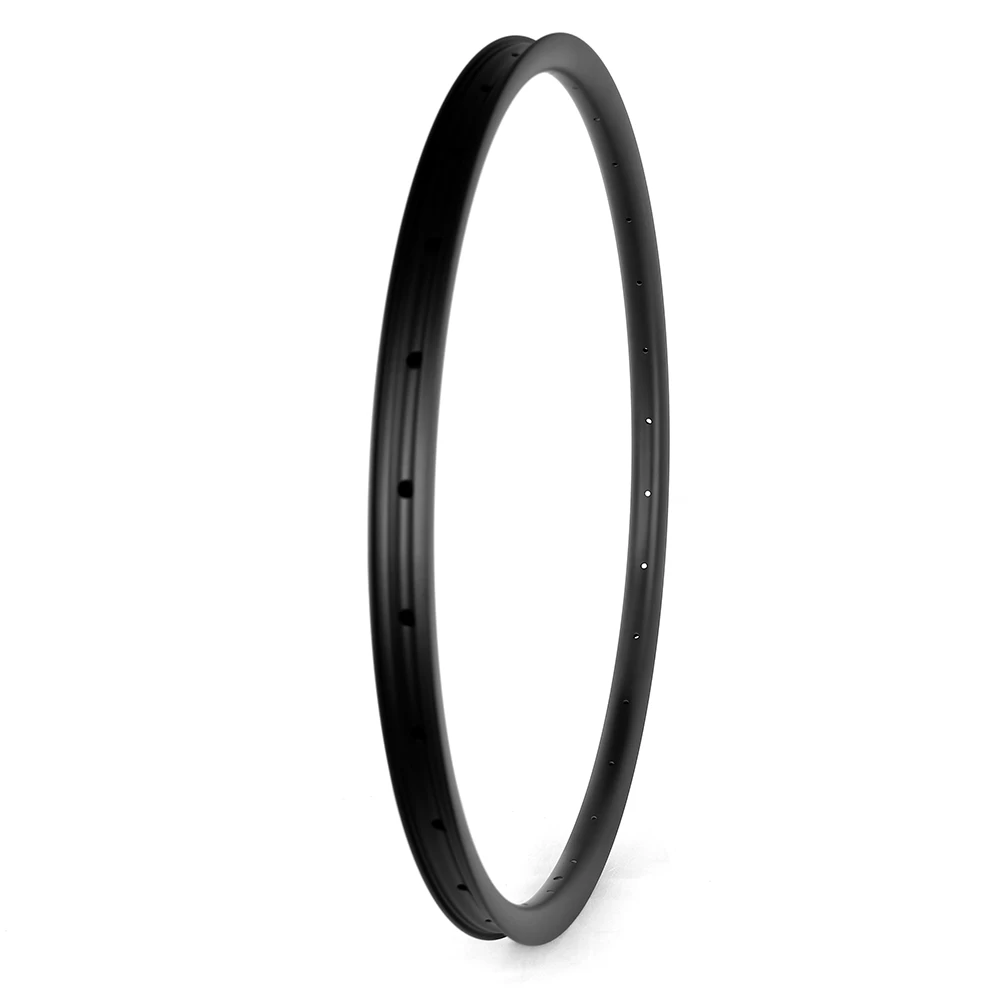

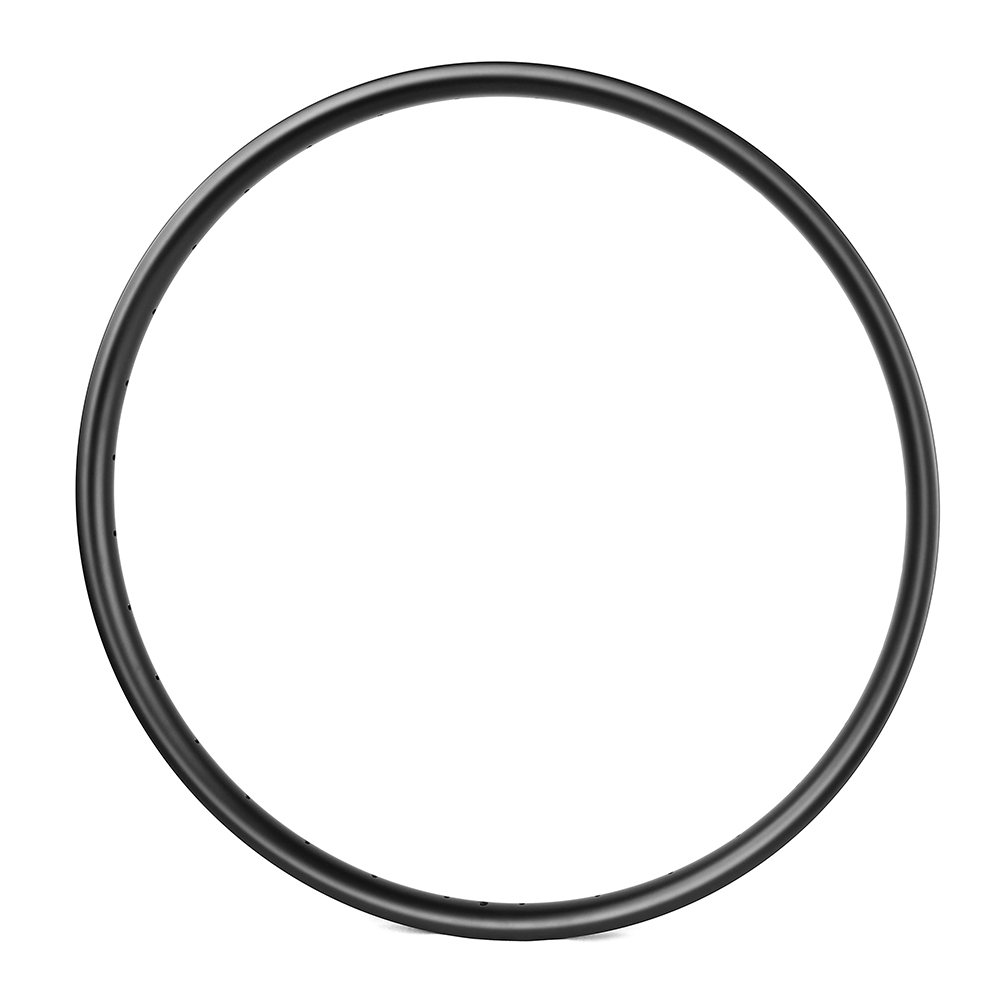

29ER ASD MTB ASYMMETRY NEW NANO GRAPHENE CARBON RIMS
|
|
Modle
|
ASD930XC-GP
|
ASD933XC-GP
|
ASD933TR-GP
|
ASD937TR-GP
|
ASD942TR-GP
|
|
Rim
|
|
|
|
|
|
|
Weight
|
320+/-10g
|
335+/-10g
|
375+/-10g
|
420+/-10g
|
450+/-10g
|
|
Finish
|
UD
|
UD
|
UD
|
UD
|
UD
|
|
Prepreg
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
|
Max. Rider Weight
|
80kg|175lbs
|
100kg|220lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
40PSI|2.7bars
|
40PSI|2.7bars
|
40PSI|2.7bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
Rec. Tire Size
|
2.1-2.35"
|
2.1-2.5"
|
2.1-2.5"
|
2.3-2.8"
|
2.4-3.0"
|
|
Max Spoke Tension
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
Rim Chart
|
|
|
|
|
|
|
Tire Bead
|
Hookless
|
Hookless
|
Hookless
|
Hookless
|
Hookless
|
Profile
|
21mm
|
24.5mm
|
24.5mm
|
24.5mm
|
25mm
|
OD
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
|
Dimension
|
622*24mm
|
621*27.4mm
|
621*26mm
|
622*30.6mm
|
622*35mm
|
|
ERD
|
602mm
|
595mm
|
595mm
|
595mm
|
595mm
|
|
Terrain
|
Cross Country
|
Cross Country
|
Cross Country|Trail
|
TRAIL
|
TRAIL
|
|

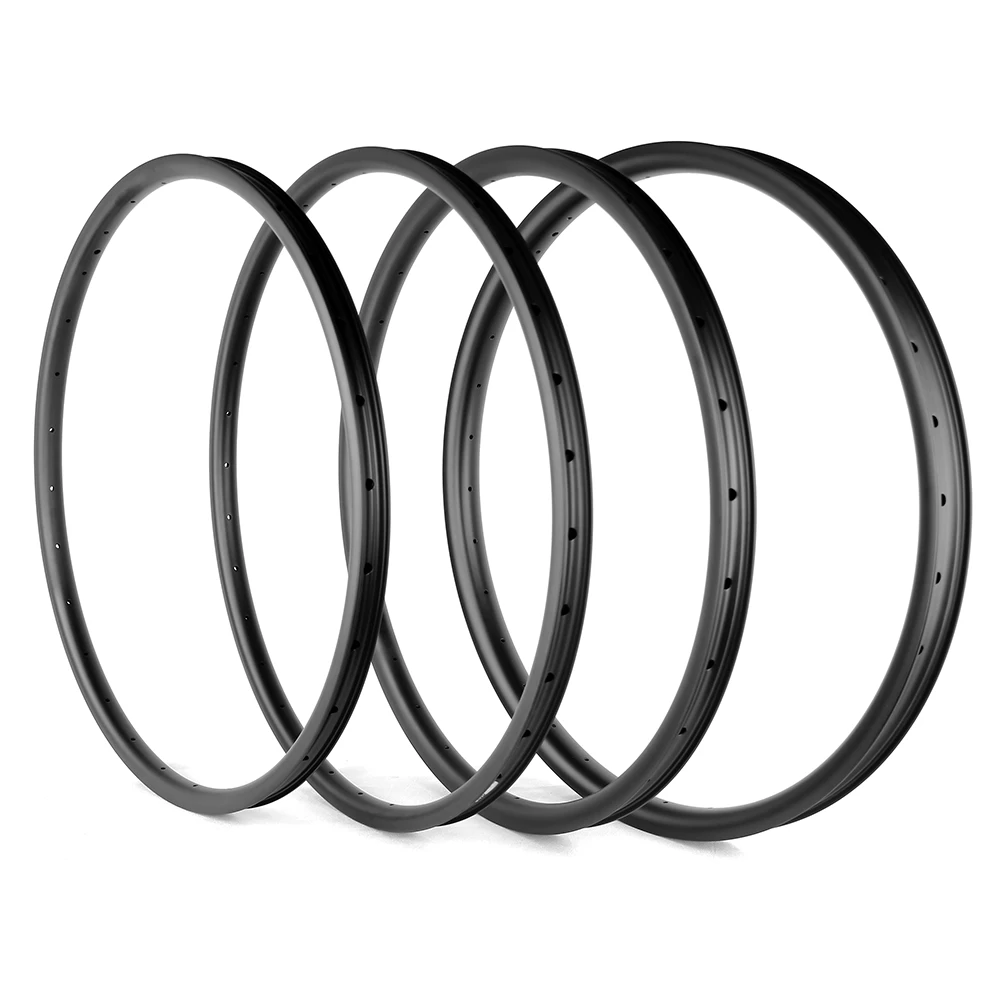

27.5ER ASD MTB ASYMMETRY NEW NANO GRAPHENE CARBON RIMS
|
|
Modle
|
ASD730XC-GP
|
ASD733XC-GP
|
ASD733TR-GP
|
ASD737TR-GP
|
ASD742TR-GP
|
|
Rim
|
|
|
|
|
|
|
Weight
|
310+/-10g
|
325+/-10g
|
350+/-10g
|
400+/-10g
|
420+/-10g
|
|
Finish
|
UD
|
UD
|
UD
|
UD
|
UD
|
|
Prepreg
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
T700/T800 w/t Nano Graphene
|
|
Max. Rider Weight
|
80kg|175lbs
|
100kg|220lbs
|
115kg/250lbs
|
115kg/250lbs
|
115kg/250lbs
|
|
Max. Tire Pressure
|
40PSI|2.7bars
|
40PSI|2.7bars
|
40PSI|2.7bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
Rec. Tire Size
|
2.1-2.35"
|
2.1-2.5"
|
2.1-2.5"
|
2.3-2.8"
|
2.4-3.0"
|
|
Max Spoke Tension
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
140kgf
|
Rim Chart
|
|
|
|
|
|
|
Tire Bead
|
Hookless
|
Hookless
|
Hookless
|
Hookless
|
Hookless
|
Profile
|
21mm
|
24.5mm
|
24.5mm
|
24.5mm
|
25mm
|
OD
|
596mm
|
596mm
|
596mm
|
596mm
|
596mm
|
|
Dimension
|
585*24m
|
584*27.4mm
|
584*26mm
|
622*30.6mm
|
585*35mm
|
|
ERD
|
565mm
|
558mm
|
558mm
|
558mm
|
558mm
|
|
Terrain
|
Cross Country
|
Cross Country
|
Cross Country|Trail
|
TRAIL
|
TRAIL
|
With Graphne Nano Mesh Filling Technology
Add 20%+ Strength or reduce 15% weight

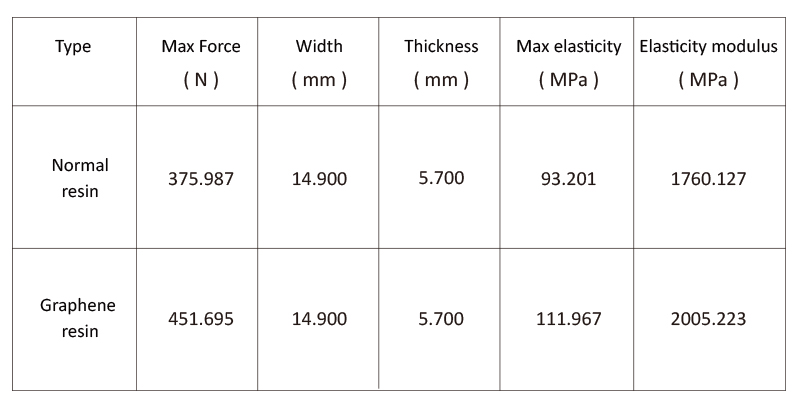

Testing Chart

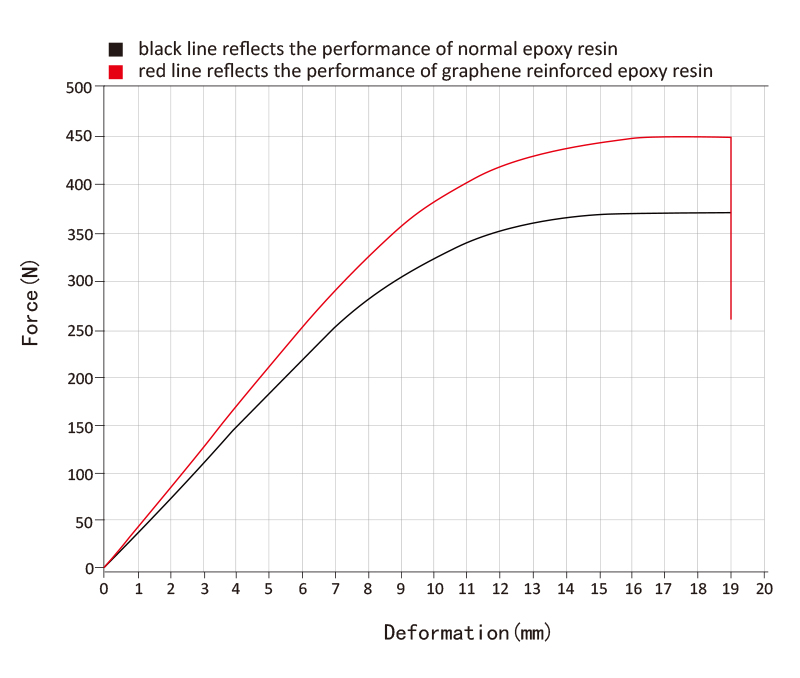

Testing Results
Conclusion
To carbon composite products, the normal epoxy resin system only supplies 5% strength contribution. The main function of resin is for moulding and curing. With Graphene nano mesh filling technology, the resin system's strength could be raised about 20%. It means to a carbon part with a certain weight, we can make it same strength&less weight or same weight&more strength.
