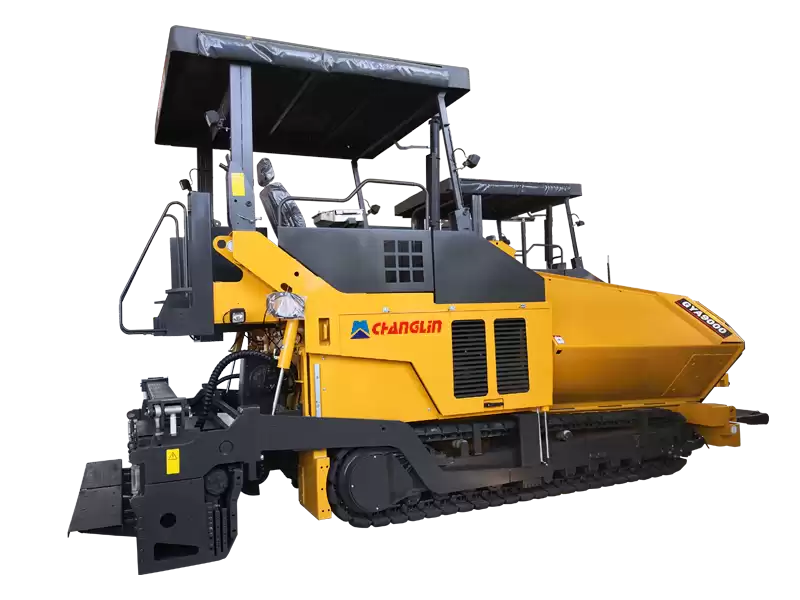

Asphalt Paver GYA9000

Operating Weight  Engine Power  Bucket Capacity

“Changlin GYA9000 wheel paver delivers 1000 t/h capacity with 9m hydraulic screed, Cummins engine, and dual braking safety. Ideal for urban road and airport construction.”

Facebook Twitter Pinterest LinkedIn 分享
  • Large Paver Applications — Large pavers are versatile and are suitable for asphalt and stabilized soil construction operations on highways, national roads, provincial roads, and urban roads.
  • Engine Configuration — The machine is equipped with a Cummins electronically controlled engine that meets the National III emission standards, with a power rating of 1941W. The engine is powerful, with a high power reserve coefficient, and is mature and reliable. It is suitable for various complex working conditions, as well as construction operations in mountainous areas and plateau regions.
  • Material Distribution System — The left and right material distribution systems use four independent full hydraulic transmissions to achieve proportional and uniform material supply.
  • Track System — The tracks are original imported parts, offering better wear resistance and longer service life. The track contact length reaches 3300mm, significantly enhancing the stability of the machine during operations.
  • Vibration and Screed System — The machine is equipped with dual vibration systems. The eccentric vibration mechanism with an extended screed can meet the requirements for thick-layer stabilized soil paving operations. The screed floor is made of imported wear-resistant steel.
  • Screw Conveyor Drive — The drive system for the screw conveyor uses an enhanced chain, increasing its strength by 30%.
  • Canopy Design — The canopy can be automatically folded, eliminating the need to disassemble any components during transportation.
  • Hydraulic Components — All hydraulic components, including pumps, motors, valves, fittings, reducers, radiators, and water tanks, are original imported products from Germany. The reinforced hopper can withstand overload impacts without deformation.
  • Pushing Roller System — The reinforced pushing rollers can adapt to various types of domestic transport vehicles.
