Asphalt Roof Solar Mounting L Feet Kit With EPDM or Flashing

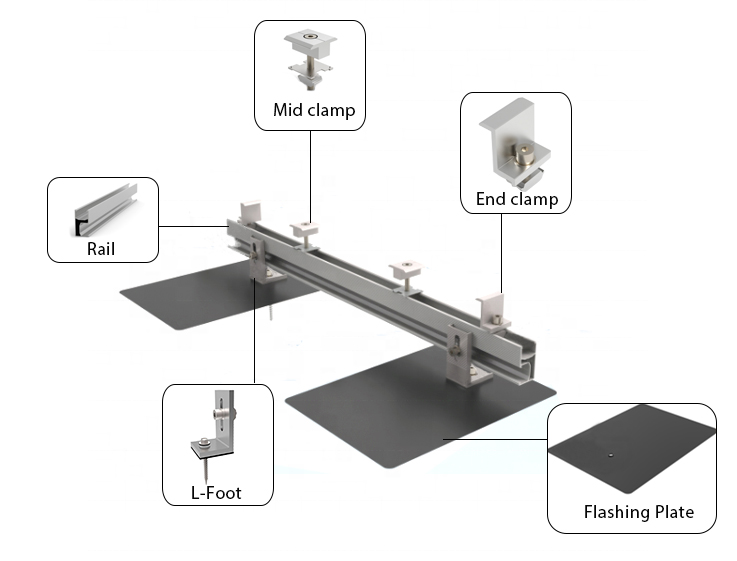

1.Asphalt tile roof solar mounting system flashing with L feet series:
The solar roof mounting system is designed for asphalt single roof, the flashing plate with raised tapered hole, together with rubber pad can perfectly cooperate with L feet, which has good waterproof function.
The solar roof mounting flashing with L feet series is equipped with wooden screw connection options to achieve maximum versatility and can be used with all common aluminum alloy rails.

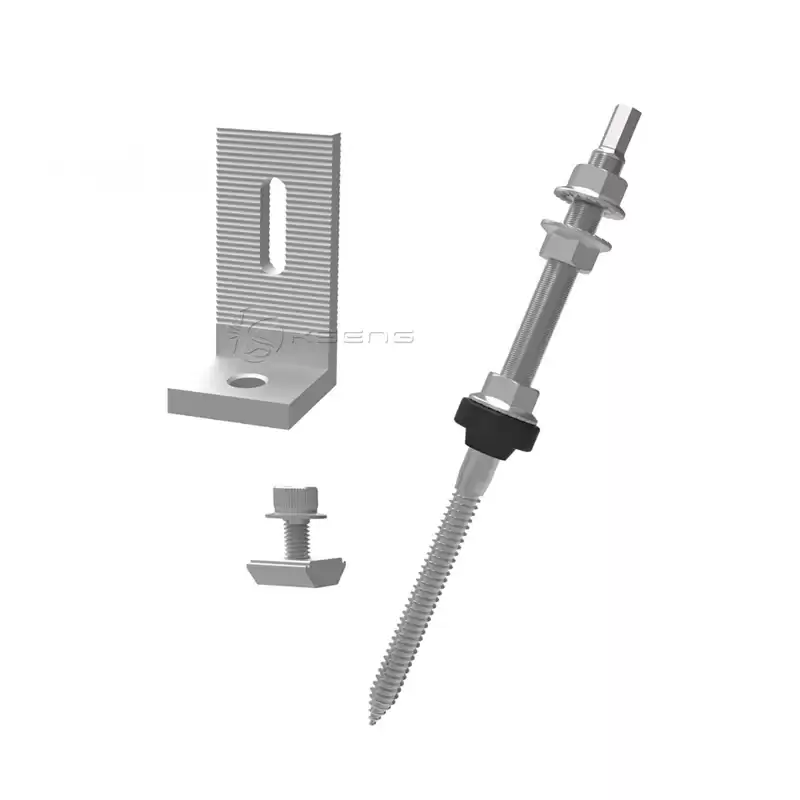

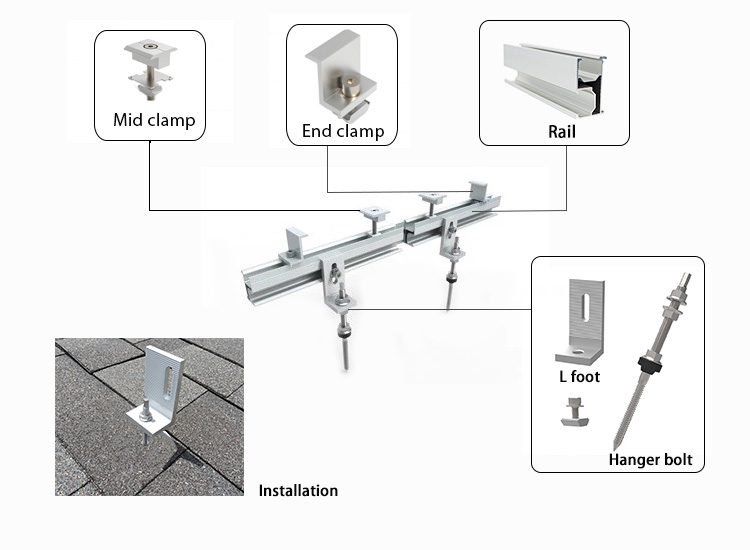

2.Asphalt tile roof solar mounting system L feet with hanger bolt series:
The series adopt L feet/ hanger bolt/EPDM/R006 solar rail/ mid clamp/ end clamp, which can realize ultra-fast single-step bolt installation, and has efficient and economical waterproof performance.
.High-grade anodized aluminum.
.It can be used flexibly with the L foot to withstand different wind and snow loads.
.Provide surface treatment, silver anodized or black anodized.
.Suitable for most rails.
|
Material:
|
Aluminum 6005-T5& SUS 304 Stainless Steel
|
|
Application:
|
Asphalt Shingle Roof
|
|
Standard:
|
AS/NZS 1170
|
|
Certification:
|
ISO9001/UL/CE/SGS
|
Pv Modules:
|
Framed or Frameless
|
Anti-Corrosive:
|
Anodized
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Components:
|
L Feet, Aluminum Nut, Bolt M8*25, Wooden screw ST6.3*80mm, R006 Solar Rail, Rail Splice, Mid Clamp, End Clamp,EPDM etc.
|
