Asphalt Shingle Hook

MRac Tile Roof Hook Solar PV Mounting System is applied tile roof residential and commercial solar projects.



Overview

MRac Tile Roof Hook Solar PV Mounting System is applied tile roof residential and commercial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost onsite.


Features

1.Applicable for Different Metal Roofs

Design project by project, selecting configuration of mounting system components flexibly

2.Save Installation Time and Cost

Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost, lead to better RoI.

3.Compatible to Different Types of Solar Modules

Compatible to most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.

Solar panel brackets tile roof



Technical Parameter

Installation Site

  Ground

Foundation

  Rammed Post, Concrete Foundation or Ground Screw

Tilt Angle

  10-60°

Wind Load

  60m/s

Snow Load

  1.6KN/㎡

Ground Clearance

  200-2000mm

Applicable Solar Module

  Framed or Frameless

Panel Layout

  Portrait or Landscape

Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,


  International Building Code IBC 2009,


  California  Building Code CBC 2010

Material

  Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)

Fastener

  SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized

Small Components

  Al6005-T5(Anodized)

Color

  Silver or Customized

Warranty

  10-Year Warranty



Production Environment

The production, quality control and environment protect of Mibet is strictly processed according ISO9001:2008 and ISO14000 system, to assure supply of competitive roof solar PV mounting systems to our customers.






Quality Inspection

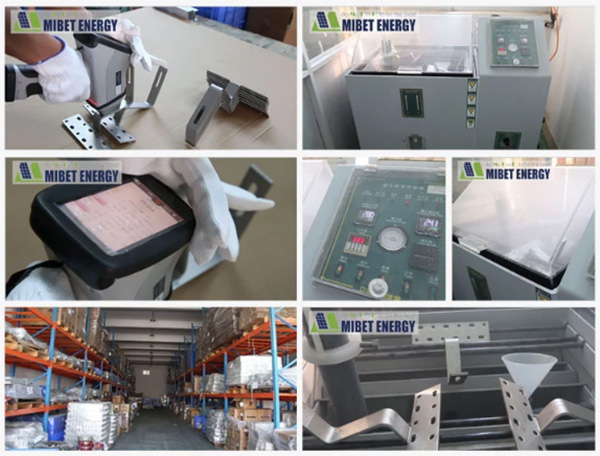

Mibet’s quality team carry out the Quality Inspection with equipment as spectrum to check the elements of our raw material Aluminum and Steel, tester to read the thickness of anodizing surface of Aluminum, the thickness of hot-dip galvanizing of steel surface, and Ultrasonic tester to assure the wall thickness of HDPE floaters, according to process of ISO9001:2008 and ISO14000, and record inspect data strictly in our computer ERP system, to deliver cargos of rooftop solar racking brackets 100% qualified.






Technology Certification
