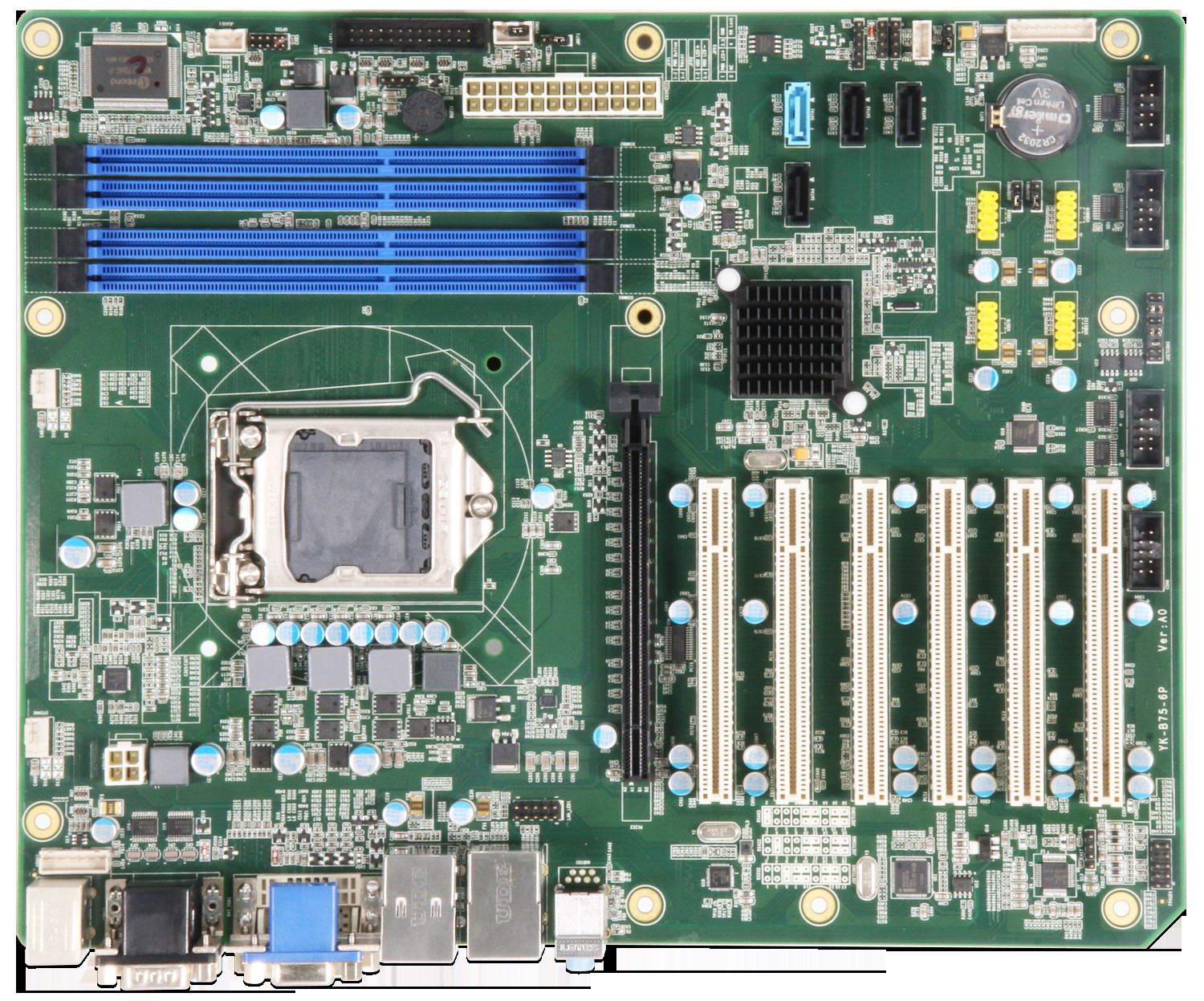

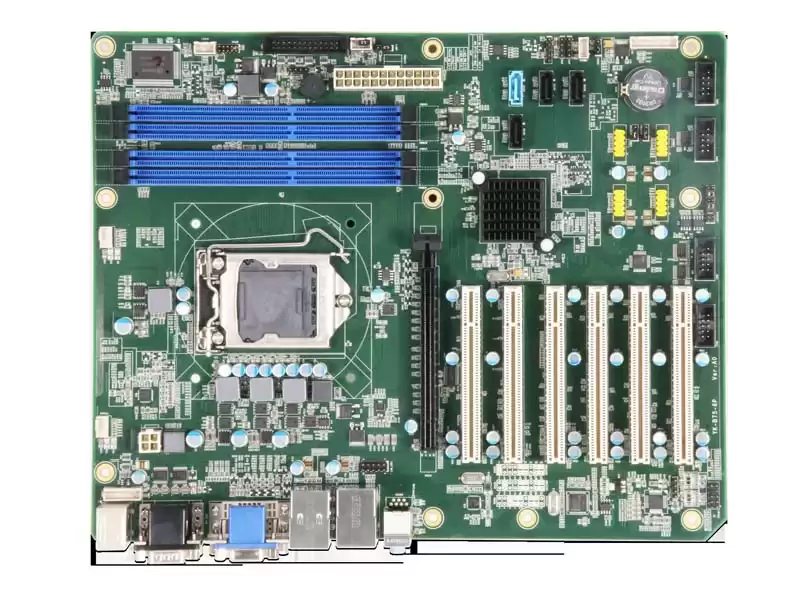

ATX Industrial Motherboard with 6 PCI 1PCIEx16 Expansion 2LAN 6COM 12USB, Support LGA1155 2nd 3th intel core CPU
Product Introduction
All industrial motherboards are designed to provide consistent, reliable performance in harsh and rugged environments. 6 PCI expansion slots for a wide range of external devices
| System |
| CPU/GPU |
Supports LGA1155 architecture 2nd 3th generation Intel® Core™ processors i7 / i5 / i3, Pentium® / Celeron® CPU |
| System on Chip |
Intel@ PCH B75 |
| Memory |
4DDR3 DIMM slots, supporting up to 32GB SDRAM |
| Storage |
5 × SATA 3.0, 1 × mSATA |
| Sound card |
Realtek HD Audio |
| Ethernet |
2 x Intel Gigabit LAN,82583 Chip |
| Graphics Board |
CPU integrated graphics card |
| Display |
VGA,DVI |
| USB |
10USB2.0 ;2USB3.0 |
| GPIO |
8-bit GPIO (4 inputs, 4 outputs) |
| COM |
6COM, COM3 support RS232/422/485 |
| Backplane I / O |

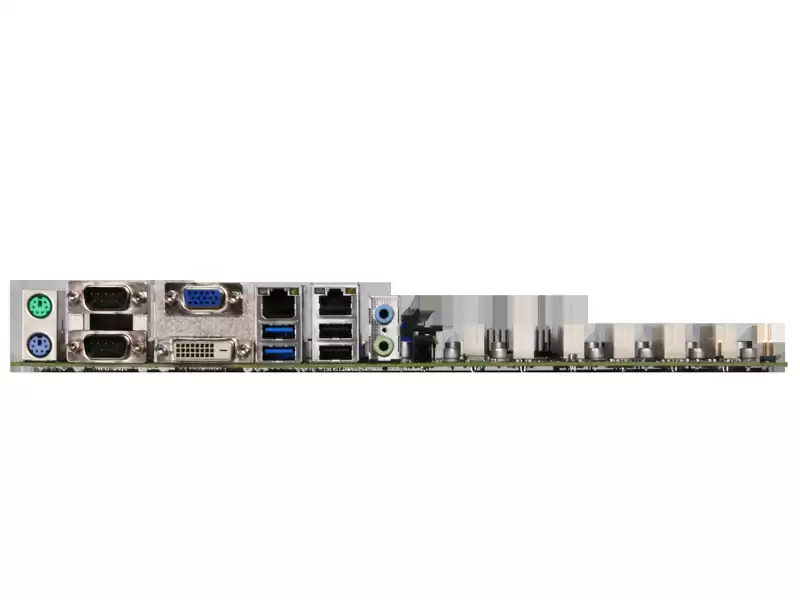

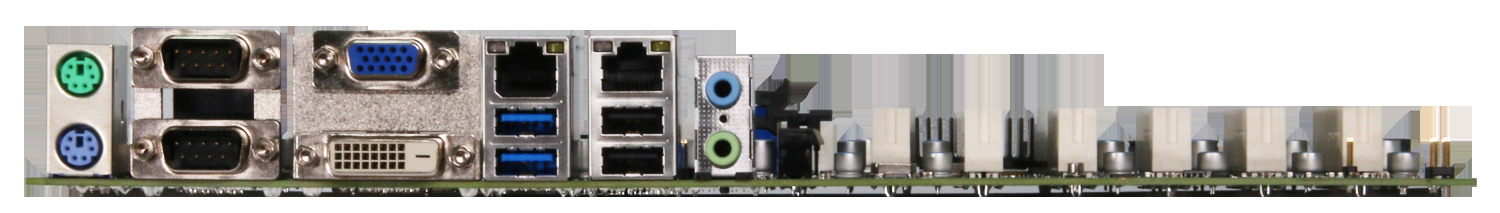

PS2 KB/MS, 2COM,VGA+DVI, 2 RJ45 LAN+2USB3.0+2USB2.0, Line-out+Mic-in |
| Board I / O |
8USB2.0 , 4COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO, Front panel , Speaker, 24P+4P ATX, Print |
| Expand |
1PCIEx16;6PCI |
| System |
Support Windows（WINXP，WIN 7，WIN 10 ...），Linux |
Product Features
■ Support for LGA 1155 architecture 2nd/ 3rd generation Intel® Core processors
■ 2 x Intel Gigabit LAN
■ VGA, DVI
■ 6COM, COM3 support RS232/422/485
■ 10USB2.0, 2USB3.0
■ 256-bit watchdog
■ 8-bit GPIO (4 inputs, 4 outputs)
■ 1PCIEx16; 6PCI expansion
| Mechanical & Environmental |
| Power supply |
ATX |
Heat dissipation |
Fan |
Size(L×W) |
306mm×245mm |
| Working temperature |
-15~55℃ |
Storage temperature |
-40~75℃ |
Environmental humidity |
0~90% air humidity,no condensation |
| Packing list |
ATX-B75AH26C-6P motherboard |
×1 |
SATA data wire |
×1 |
| COM line |
×2 |
|
|
Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
