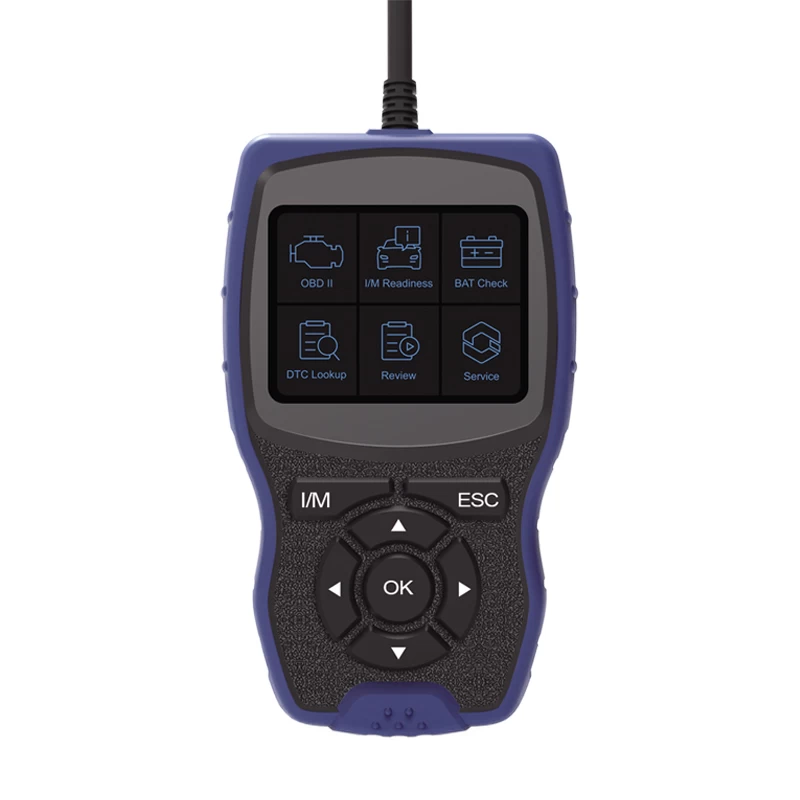

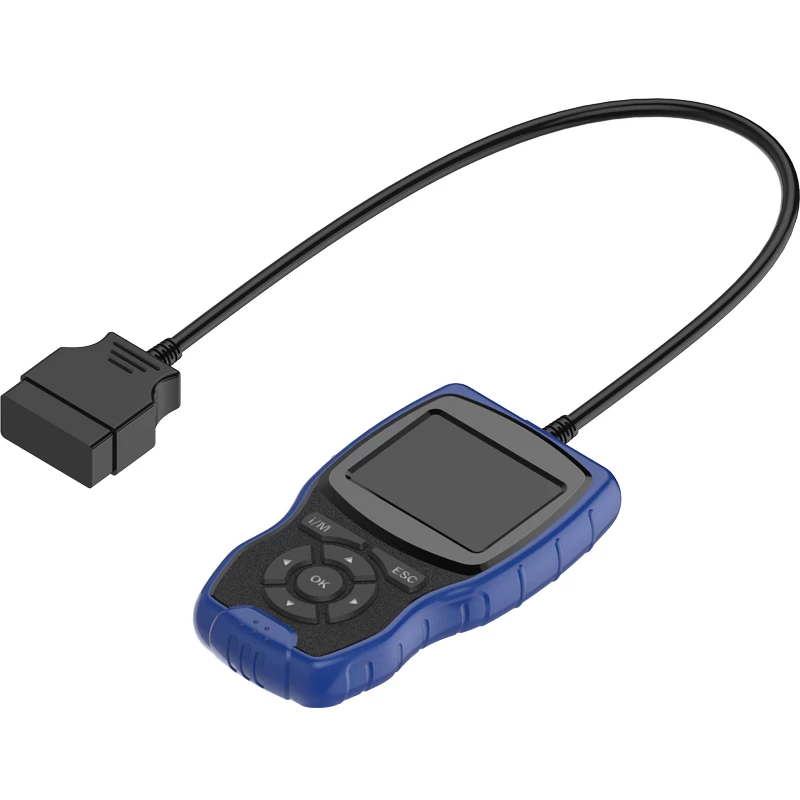

Ausland 5009 OBD2 Scanner Car Code Reader for OBDII/EOBD + CAN

AIOBD 5009 is a powerful diagnostic tool with full mode code reader, easy to connect and obtain the error code along with brief description of the issue, with unique one-click I/M readiness status design, which fast to scan vehicle’s engine healthy status.


  • weight0.5


Ausland 5009 OBDII Scanner Code Reader for OBDII/EOBD + CAN


Ausland 5009 is a powerful diagnostic tool with full mode code reader, Easy to connect and obtain the error code along with brief description of the issue, with unique one-click I/M readiness status design, which fast to scan vehicle’s engine healthy status.


Product Function

1.Read codes&Erase codes

2.I/M Readiness

3.Data stream

4.Freeze frame

5.O2 sensor test

6.On-Board Monitoring

7.Evap system test

8.Vehicle information

9.Print diagnostic reports via PC connection

10.Records&playback DTC

11. Built-in OBD II Fault code look-up library

12. Help function(view more the fault code explanation)

13.Real Time Battery Voltage


Product Features

Large color screen display ,Fashionable design, Easy to operate

Graphical display data stream

I/M Readiness Key--check State Emissions readiness

Read,records&playback DTC and vehicle information

Support more data (Data stream / freeze frame) for compression ignition vehicles

Add more new fault codes

Help function key(quickly find the cause of the trouble code)

Customize Languages -Multilingual menu options and code definitions ( English, Spanish, French, German, Russia.....)

Range of Diagnose

Works on all after 1996 and newer vehicles(OBD II&CAN)

Supports ALL OBD II protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000.


Technical parameters

Display: 2.8” TFT 262K true color

Operating Voltage: 12V DC

Operating Temperature:0 to 60°C (32 to 140 F°)

Storage Temperature:-20 to 70°C (-4 to 158 F°)

External Power:8.0 to 18.0 V power provided via vehicle battery

Weight: NW: 0.36kg (0.57lb), GW: 0.45kg (0.77lb)
