AUSLAND MDS-9001 Multi-Diag Specialist Machine Car Diagnostic Scanner ABS SRS SAS EPB TPMS Code Reader For GM
MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.

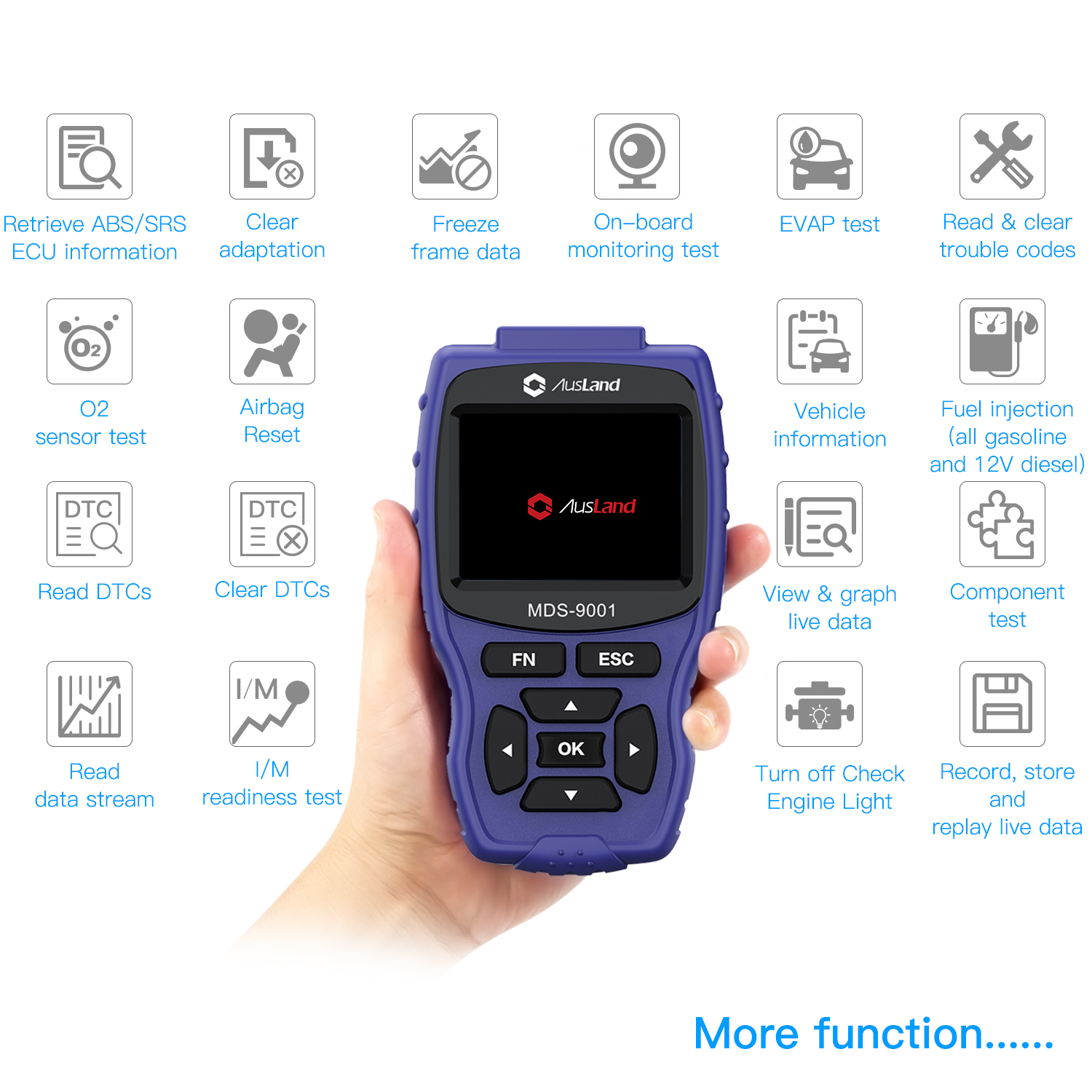

Features
l Works on most systems
l Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
l On-board readiness monitoring- to read the results of on-board diagnostic
monitoring tests for specific components systems
l Requests and records live sensor data
l Provides live data graphing, Merges graphs for easy and intuitive diagnosis
l Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
l Performs most adaptations, Does active tests on systems and components
l Performs special functions, coding, security access
l Retrieve ECU information
l EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary
l procedures available
l Fuel injection (all gasoline & 12 V diesel)
l Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
l Turn off the ECU warning light, diagnoses EPB/SBC functionality
l View & graph live data for real time graphing/live data reading
l Component for bi-directional tests such as cycling abs solenoids
l Re-calibration of brake control module after changing the brake pads
Replacement
l Sets inspection 1, 2 service interval
l Sets (non) long life oil service
l Sets inspection mileage
l Deactivates and re-activates brake control system
l Retracts calipers for brake pad replacement
l Returns calipers to the original position
l Initializes the wear indicator if new pads installed
l Diagnoses EPB caliper functionality
l Code troubleshooters for faster and easier diagnosis
l Multilingual menu options and code definitions

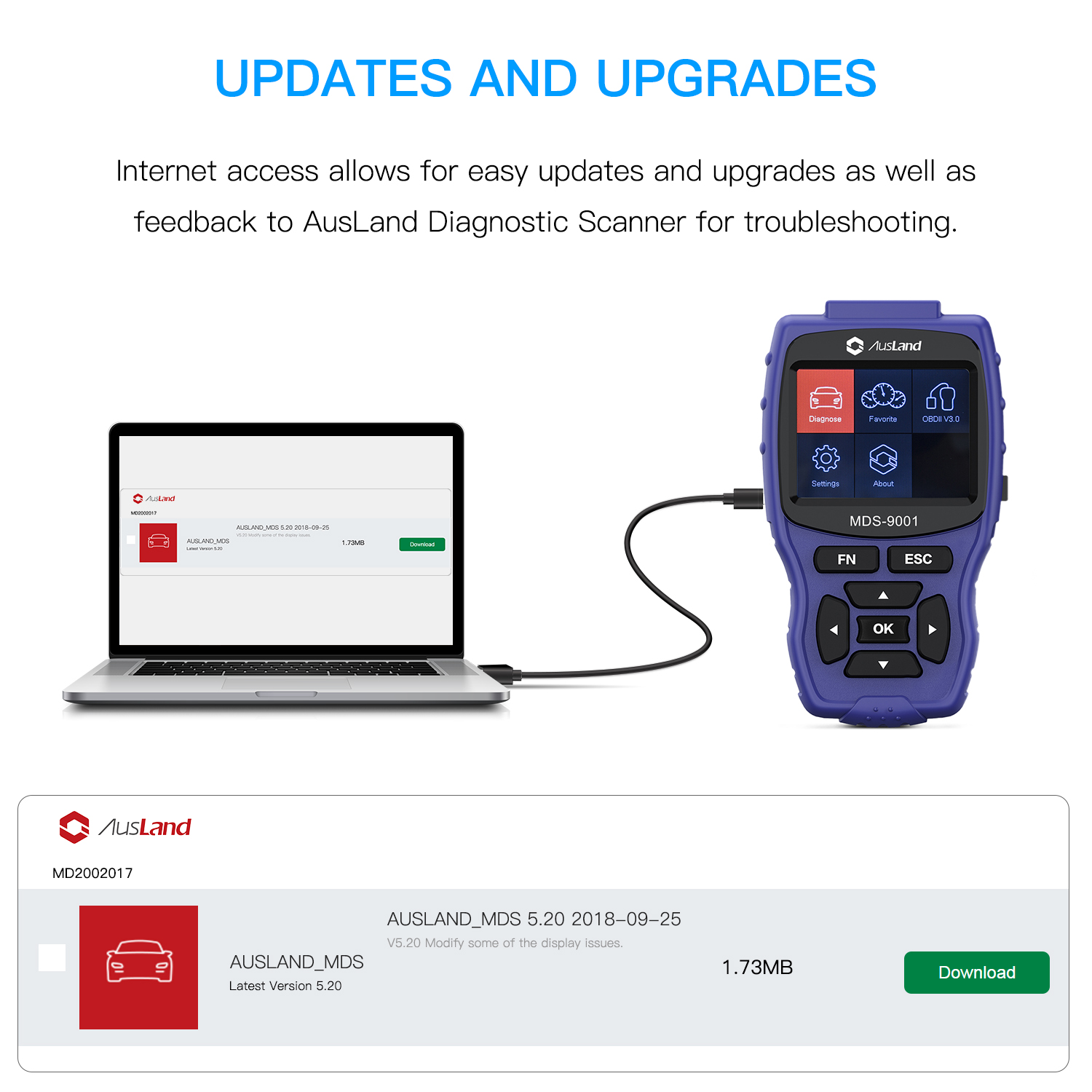

l Memory card for data backup and software update by internet
l Large TFT color screen and menu-driven operation
l Multi System Platform capable
OBDII Features
l Read fault codes
l Clear fault codes
l Retrieve data stream
l EVAP test
l Vehicle information
l I/M Readiness
Special Funciton
l GASOLINE 1.8L
l 2.0L DIESEL
l AISIN 5GEAR(GAS 2.0-2,5)
l AISIN TCU(DIESEL)
l Engine Control Module
l Fuel Pump Control Module
l Electronic Brake Control Module
l Body Control Module
l Instrument Cluster
l Parking Assist Control Module

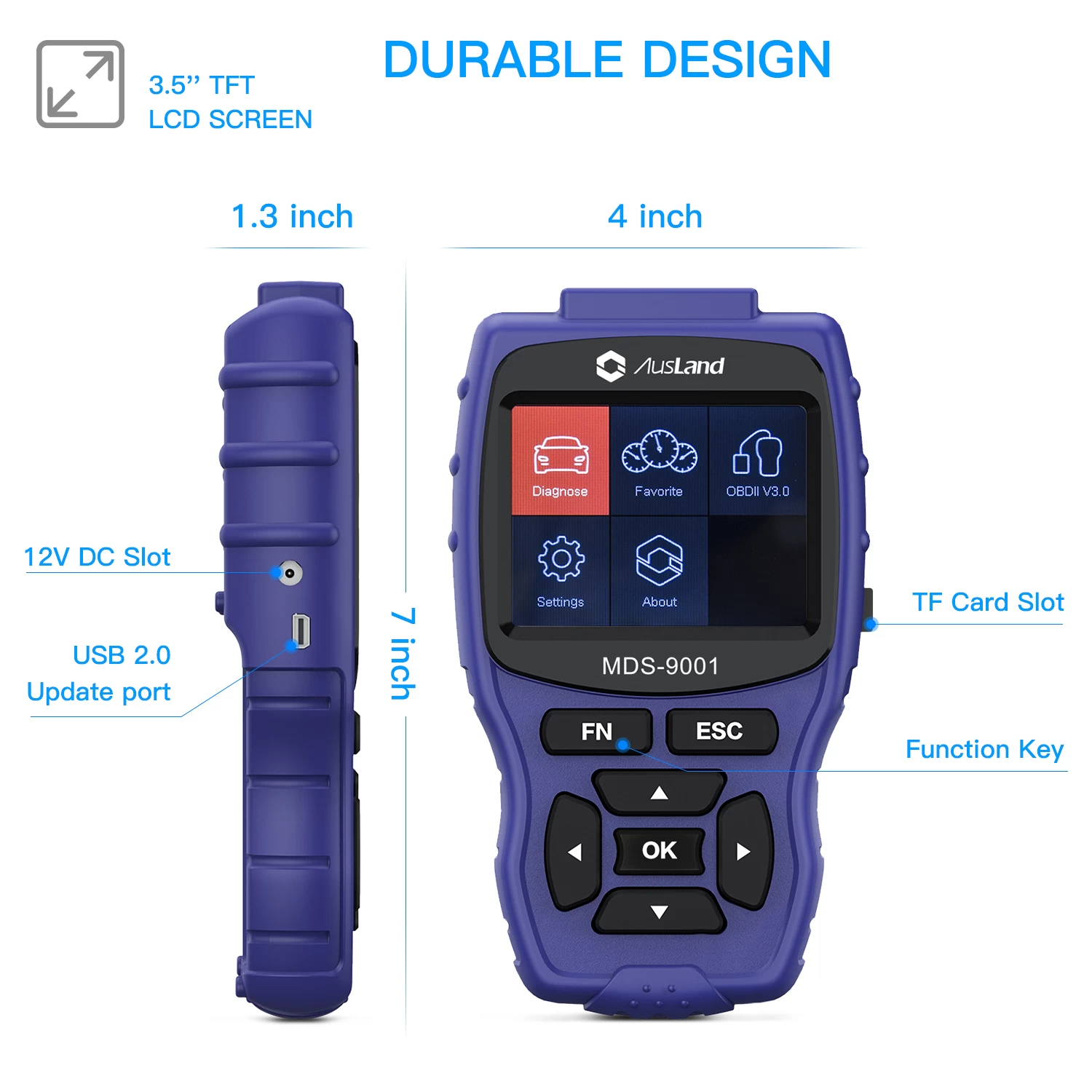

Specification
l Display: 3.5’’ TFT LCD
l Operating temperature: 0 ～ +50℃
l Storage temperature: -20 ～ +70℃
l Operating current: 150mA 12V(Typical)
l Power consumption:1.8W(Typical)
l Packing dimension: 176*102*33mm(L×W×H)
l Weight: 270g
Packing list:
l Main unit 1pc
l Main Cable 1pc
l OBDII-16 Connector 1pc
l USB Cable 1pc
l User Manual 1pc
