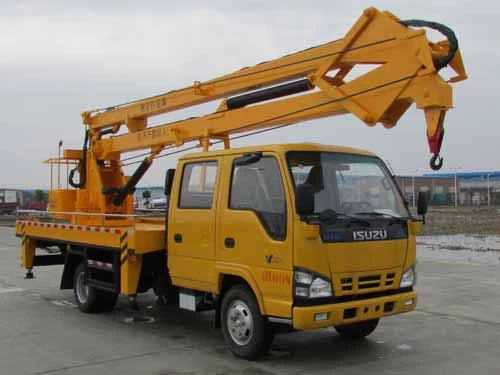

Isuzu Chassis 14m Truck Mounted Aerial Working Platform
Isuzu Brand 14M Telescopic Boom Aerial Working Platform Technical Parameters
(PT5061JGK10S GKS-14QX)
Working Condition
1, Altitude: 0-1000m
2, Temperature: -25° C--+45° C, environmental relative humidity ≤ 90%
3, Allowed working condition: Solid, stable land, the vehicle should be horizontal
4, Wind force: ≤ 6 degree (wind speed ≤ 12.5m/s )
Working Range
PT5061JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations.
Bulletin No. |
KFM5061JGK10S |
Type |
GKS-14QX |
External dimensions ( mm ) |
7050×2020×3250 |
Structure type |
Three-section telescopic boom |
Working Cage |
Internal size ( mm ) |
1200×600×1100 |
Rated loading ( kg ) |
200 ( or 2 persons ) |
Max. Working height ( mm ) |
14000 |
Max. Height from ground ( mm ) |
12300 |
Max. Working radius ( mm ) |
9300 |
Working radius when doing the highest height ( mm ) |
1320 |
Working Boom |
Lifting angle of main boom ( º ) |
-24_78° |
Out rate speed ( mm/sec ) |
8500/50 |
Ret rate speed ( mm/sec ) |
8500/50 |
Boom rack rotation angle ( º ) |
360 |
Boom rack rotation speed ( r/min ) |
1.0 |
Outrigger |
Vertical span ( mm ) |
3050 |
Horizontal span ( mm ) |
3600 |
Traveling of vertical outrigger ( mm ) |
450 |
Adjustment |
Single adjustable |
