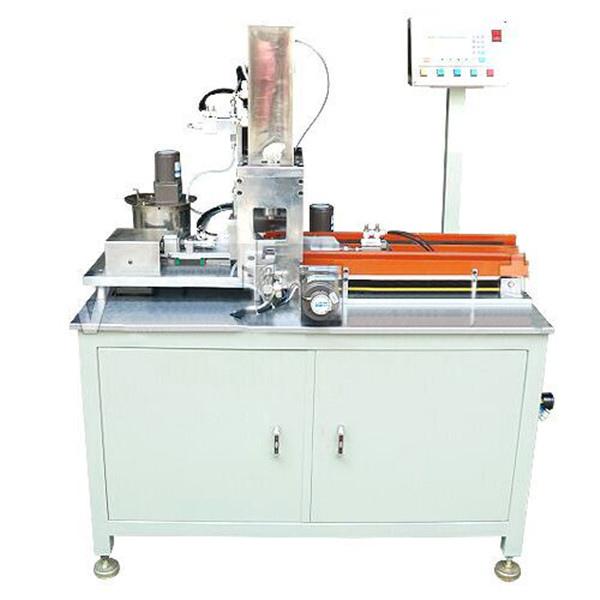

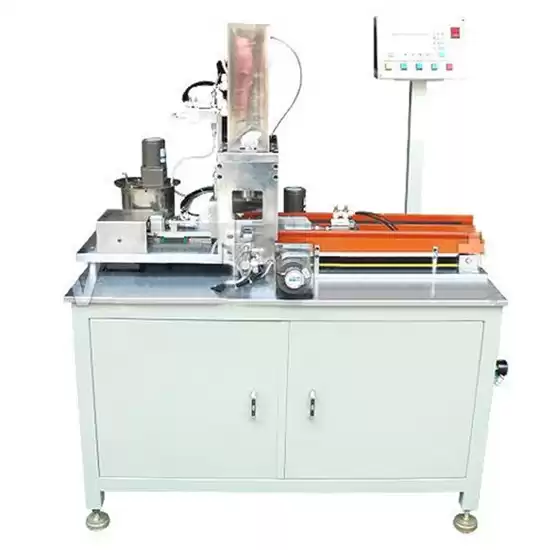

Auto Cylindrical Cell Grooving Machine for Batch Cylindrical Cell Processing

It is an auto grooving machine for cylindrical battery cases. It provides a continues workflow for case batch loading - neck grooving - case unloading without dedicated labor.

Advanced Features:

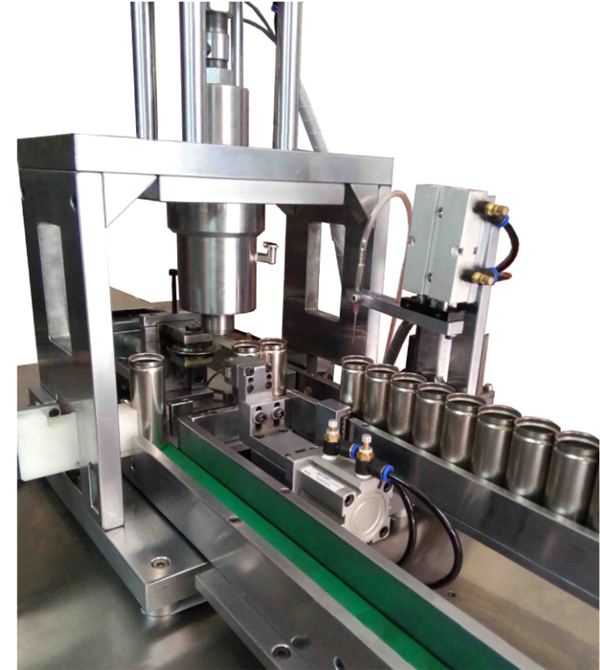

·        Efficient batch loading/unloading mechanism with case feeding conveyor

·        Horizontally positioned grooving blade ensures the most stable and accurate grooving

·        Micrometer assisted grooving depth & height adjustment

·        Ability to compensate the axial deformation of a cylindrical casing

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment



Specifications:

Working Voltage	110/220V AC, 50/60Hz
Max. Power Consumption	1KW
Air Pressure	0.5 MPa~0.8Mpa is required
Compatibility	Standard grooving capability for 18650 case  Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.
Control	User-friendly HMI with PLC touch screen control ensures easy program setup
Grooving Dimensions	Micrometer assisted grooving depth & height adjustment ·         Depth: 1 - 2.0 mm ·         Width: 1 - 1.5 mm
Grooving Accuracy	+/- 0.1 mm
Grooving Blade Life Span	>1 million times
Grooving Force	6kgf/cm^2
Compression Ratio	Percentage in height: 80%
Productivity	·         Material feeding conveyor is able to load upto 22 pcs per batch ·         30 pieces per minute
Product Dimensions	W1080mm*D660mm*H1200mm
Net Weight	1000lbs
Warranty	·         One year limited with lifetime support   ·         Rusting and damage due to improper storage condition or maintenance are not covered by warranty
