Auto feed fabric pattern camera laser cutting machine

Auto feed fabric pattern camera laser cutting machine is with big camera on top, suitable for cutting the printed fabric pattern, embroidered textile, cloth. Without making drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically.



0086-18815980123  0086-13599259031  Boming laser


Auto feed fabric pattern camera laser cutting machine is with big camera on top, the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple.

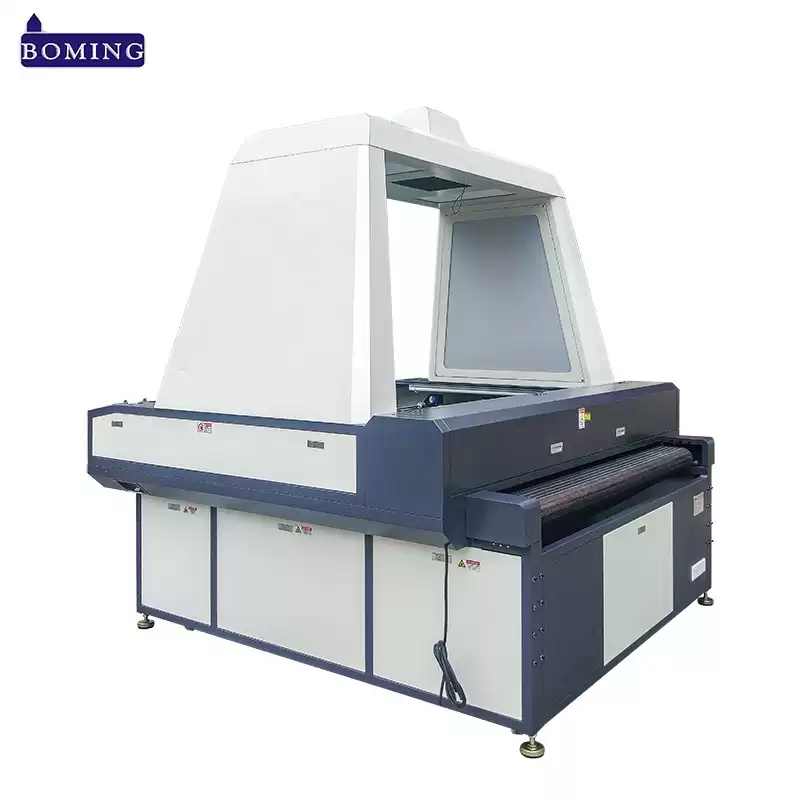

Machine pictures:

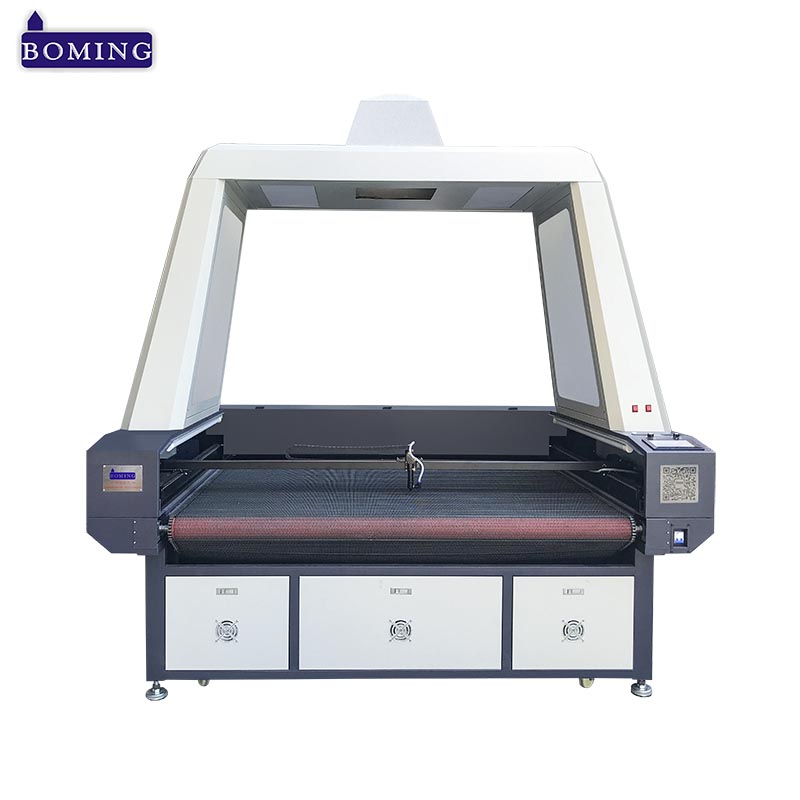

vision scanning laser cutting machine

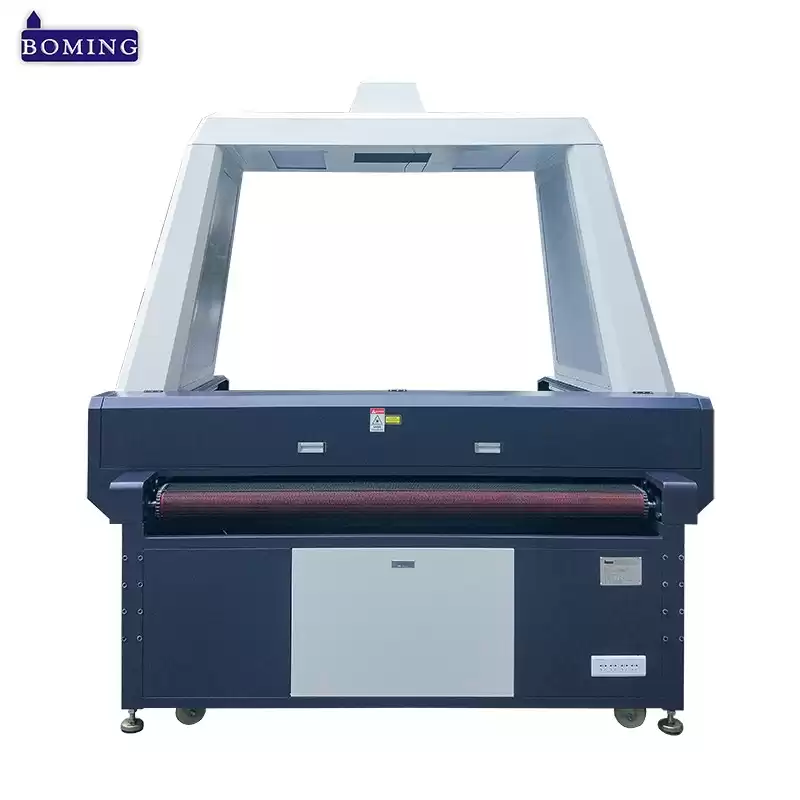

auto feed laser cutter with camera

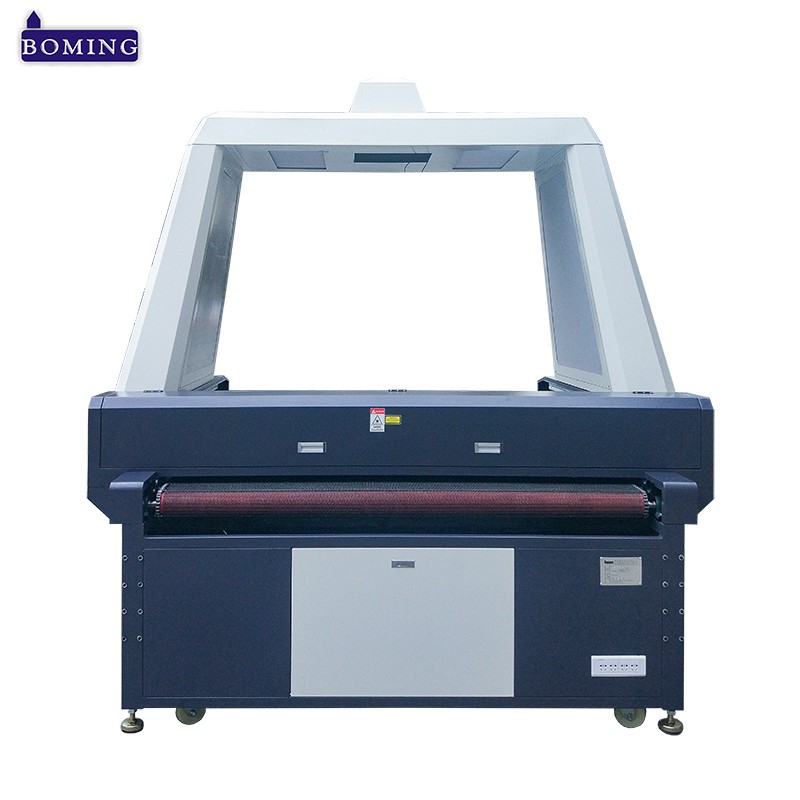

big camera laser cutter

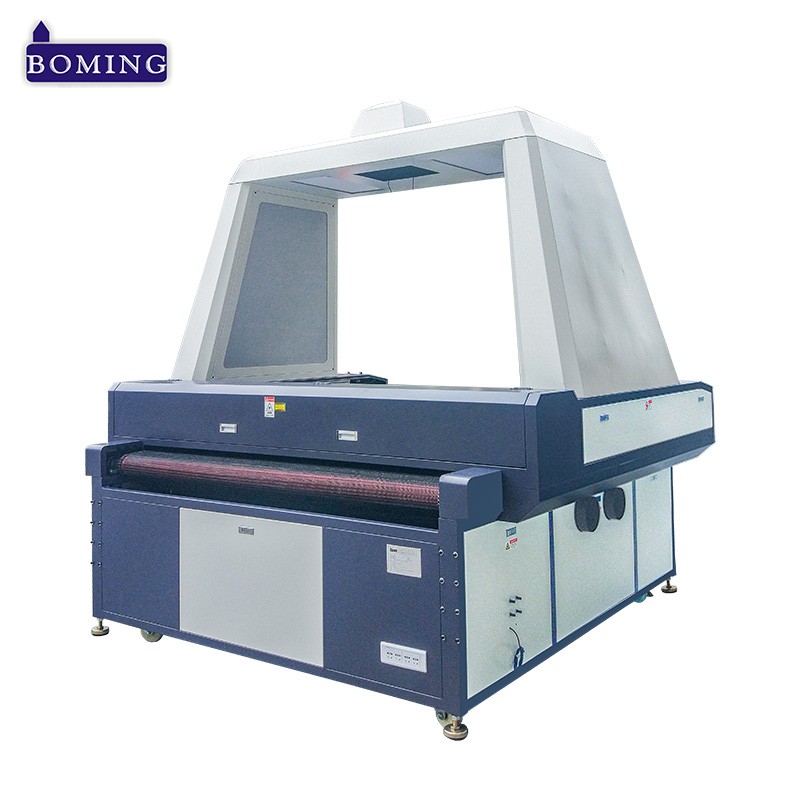

top camera laser cutter





Features: of Auto feed fabric pattern camera laser cutting machine

1、We use high definition camera which effective pixels is 24.1 mega to achieve high precision imaging (The higher pixels are continuously updated).

2、The effective working area is several times compared the former laser machine but  maintaining the same accuracy.

3、The oversize image can solve the problem of error and image degradation caused by mosaic image.

4、Cutting by positioning is suitable for multiple templates.

5、 The tracing-edge cutting can solve the problem of materials deformation、 stretch etc.,saving raw materials.

6、Template cutting and tracing-edge cutting both achieve cutting of continuous feeding, cutting one template by identifying one template.

7、All the object contours found by camera can be shown in the corresponding image to determine the precision easily and intuitively.

8、The laser machine has better man-machine interaction, for the object contours found one time,  it can modify partly and integrally then process.



Configuration:of automatic recognition label laser cutting machine


1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W laser tube.

4)Honeycomb plate/ Square bottom plate/blade strip plate

5)Outward sliding guide rail, inward sliding guide rail, integrated frame structure

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Optional: Automatic circulation cooling water tank.

11)Give freely compressed magnetic pump.

12)Give freely Boming copyrighted software 1set, free upgrade





Applicable Industries:of printed pattern laser cutting machine

Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, etc.




Applicable Materials: of co2 laser contour cutting machine

All printed pattern, such as printed fabric、embroidered textile、leather、cloth、woolen、woven label、trademark, etc.




Technical Parameters: of logo laser cutting machine

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*1000 1800*1000 1800*1200 1800*1400 1800*1600mm

Positional Accuracy

±0.05mm

Camera resolution

21.4 mega pixel

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

laser pattern cutter



Why choose us:

1. 13 years experience on laser cutting and engraving machine.

2. Use good brand parts, excellent machine quality.

3. Free consulting, lifetime technical support.

4. Various optional types, customized acceptable.

5. Machines sold to Southeast Asia, South Asia, South America......


Laser cutting solutions have revolutionized the way printers, converters and print application specialists do business. The strength of the label laser cutting machine is the precise quality and depth control of the software; tuned to handle the complexities of laser cutting behind the scenes and ultimately minimize operator work.


How to choose our machine:

The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:

1) What materials and size will you cut?

2) What laser capacity and working area size you need?

3) What industries are you in, shoe, clothes, handicraft or advertisement?

4) Your destination port, it is for checking shipping price.

5) Other relative information, please let me know.


The woven label cutter is powerful and can cut different labels at the same time. Automatic feeding, no need to draw in advance, saving time, labor and labor. And the high-quality woven label cutter laser can make the cutting edge smooth, and the high-temperature locking edge does not snag, and the product quality is greatly improved.


Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

laser cutting plotter machinery


The laser cutting machine woven label can cut a single woven label pattern or multiple different woven label patterns perfectly. Realize the precise cutting of embroidered and woven labels and improve efficiency.
