Automated Pallet Handling And Transfer System | Horizontal Conveyor

Nanjing Huayide pallet conveyors designed to move pallets along a fixed path, used for heavy-duty palletised product in fully automated warehouse. Durable and fast rotation system.



Technology Upgrade

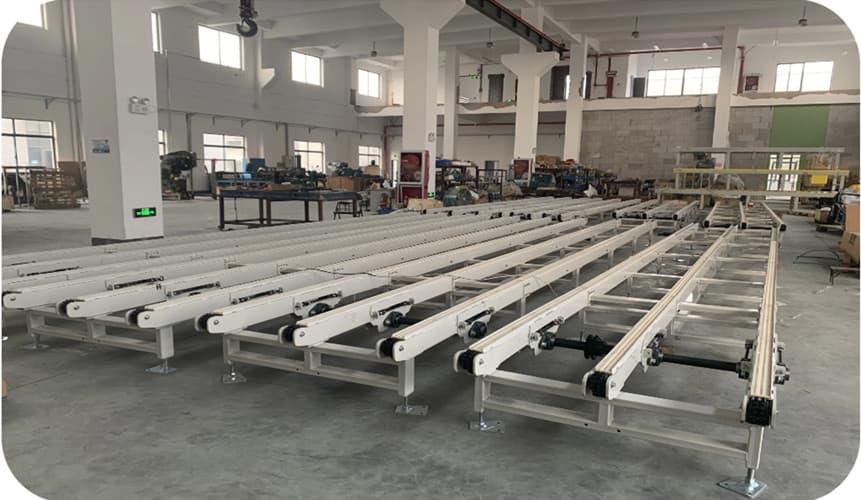

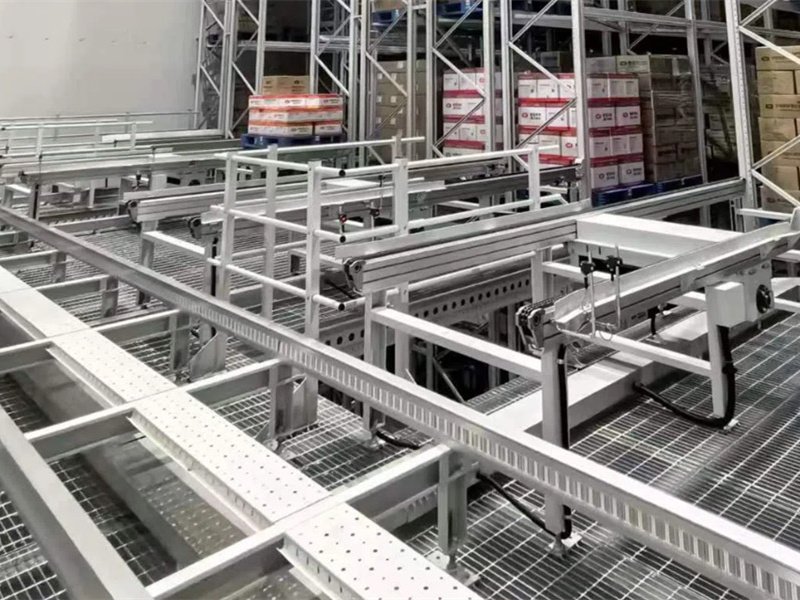

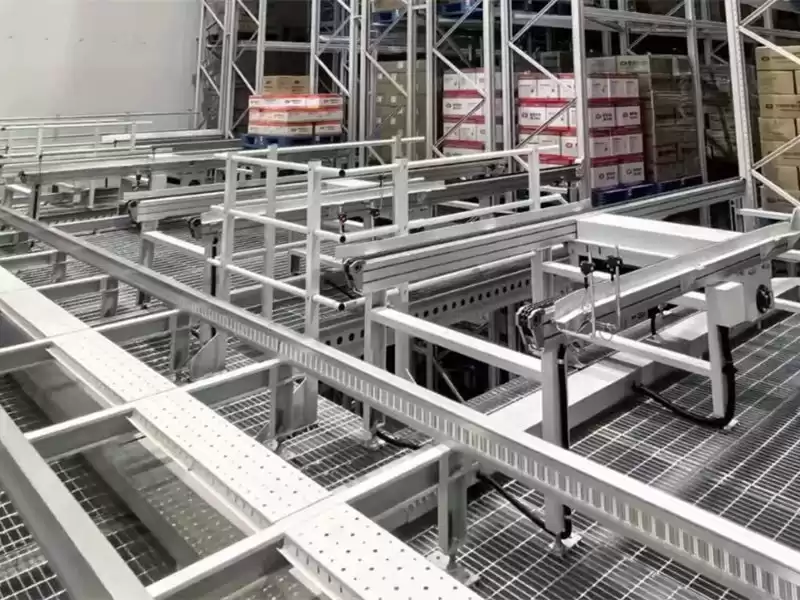

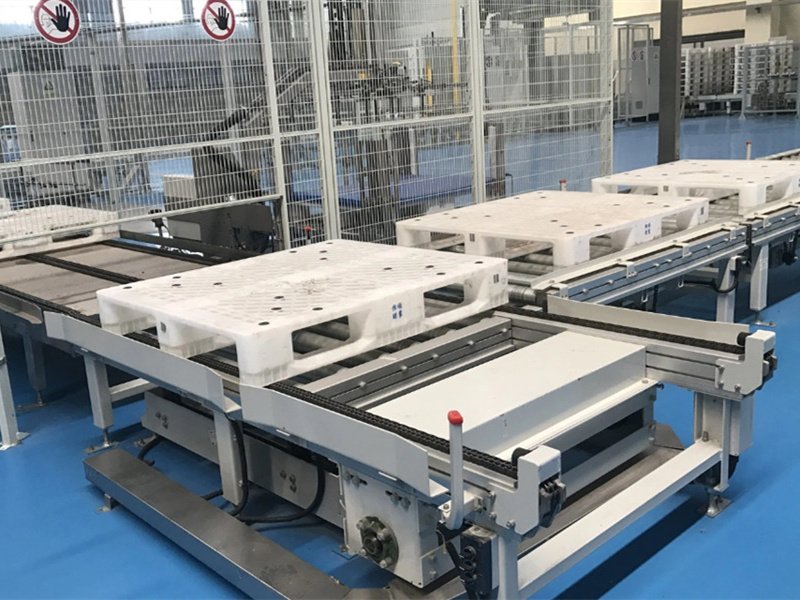

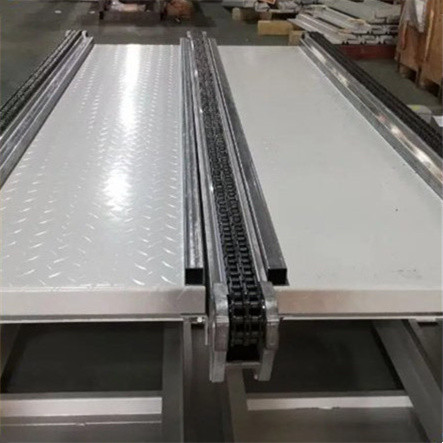

CHAIN CONVEYOR

Structure stable /Support Customize / High Quality



Conveyor systems for pallets



Excellent Quality

Produce high-performance products

Engineering Design Icon

Engineering Design

Reasonable Structure Icon

Reasonable Structure

High Efficiency Icon

High Efficiency

Abundant Materials Used Icon

Abundant materials used

Product Parameters

Brand
HYD
Name
Chain Conveyor
Spec
OEM
Performance
Excellent
Features
Large load, flexible
Application
All industries
warehouse roller conveyors





Free Design Warehouse Proposal

Professional designers provide one-on-one services

Usage



  • Suitable for indoor operation environment
  • Used for palletized product transportation



Feature



  • Economical and cost-effective
  • Modular design, easy to install and maintain
  • During transportation, the goods and chain remain relatively stationary
  • Loading capacity is large
Warehouse System





Item Basic Data
Motor Reducer Lenze Smart motor
Control Mode Manual/Automatic/On-line
Speed Adjusting Mode Frequency Control
Safety Method Electrical interlocking; Protecting and guiding direction at both sides
Pallet Detection Photosensor
Chain Rail Low friction nylon rail
Bearing Sealed ball bearing
Convey Speed 16m/min
Surface and Coating Aluminum beam with stainless steel chain, stainless roller, carbon steel leg
Noise Level ≤65 dB





Handling Rail Guided Vehicles in Loop

Stable Structure



Stable and reasonable structure, high load-bearing capacity, optional body materials such as aluminum profiles, carbon steel, stainless steel, etc., customized according to the usage scenario.



Automated warehouse RGVs

Excellent material



Steel structure manufacturing is simple, the material is uniform, the working reliability is high, and the advantages are high strength,  plasticity, and toughness.



Electric monorail conveyor systems

Easy for maintenance



Simple structure, easy maintenance, low energy consumption, and low operating cost.

Pallet monorail systems

OEM



Non standard customization

There are a wide variety of products with different specifications and configurations. The configurations and specifications are all non-standard customizations, tailor-made for you.






Pallet conveyor turntables

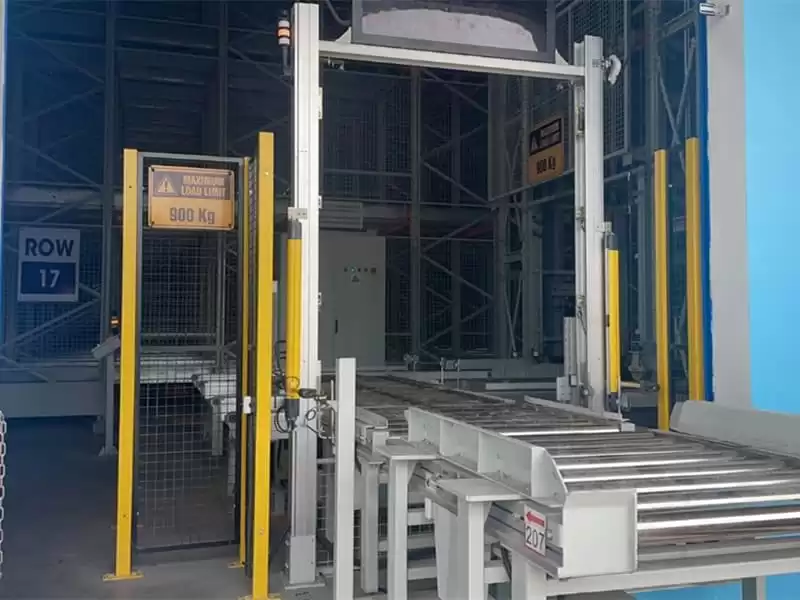

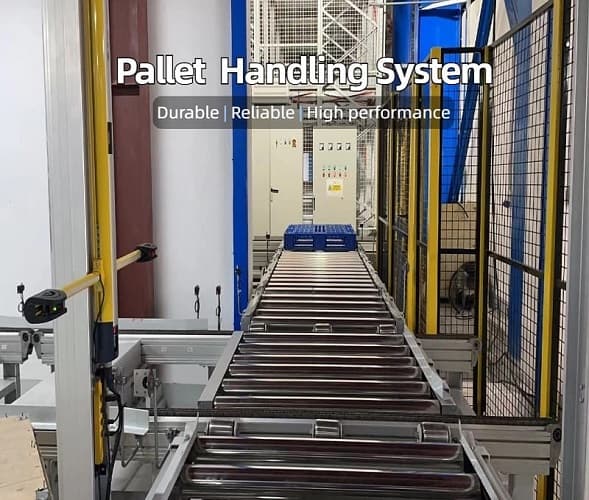

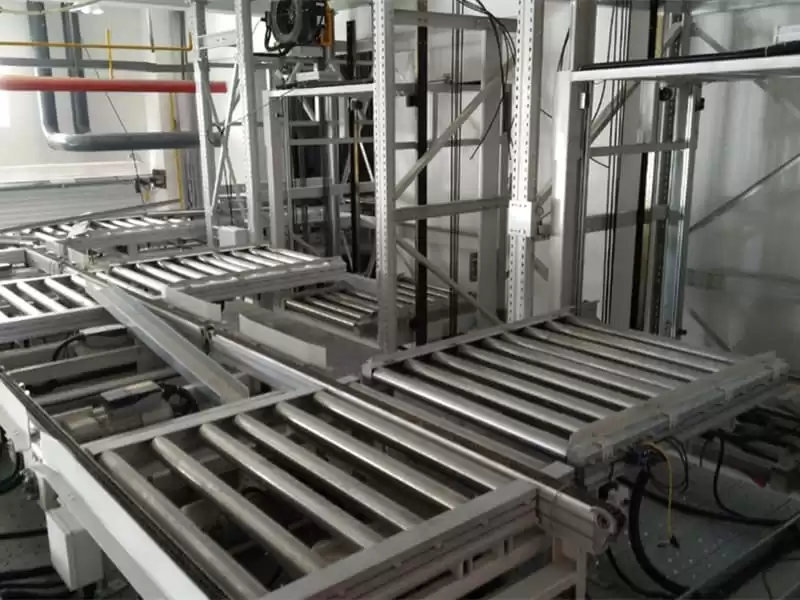

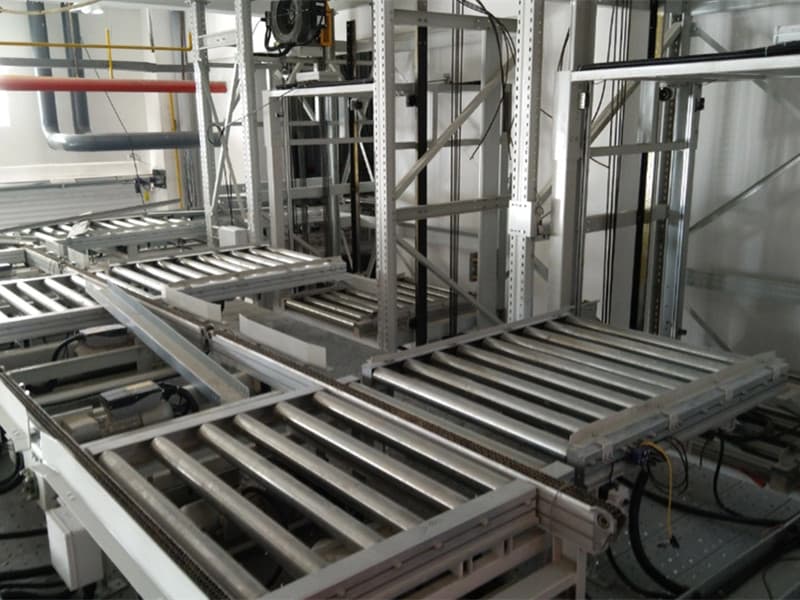

Roller Conveyor

SEW drive system

Large load  | Durable | Easy-installation
warehouse roller conveyors
Parameters
Brand: HUAYIDE
Model No.: HYD-GTJ - 1.5T
Roller Spec: Φ76×2.5/3.0/3.5/4.0mm
Material: Galvanized / Stainless steel
Technical Specification
Control Mode Manual/Machine/Online/Automated - Siemens PLC
Communication mode Fixed cable communication
Speed mode Frequency inverter
Conveyor frame Special aluminum profile
