Automatic 18650 26650 32650 21700 PVC Heat Shrink Wrapping Machine For Cylindrical Battery

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com



  • Certificate CE ROHS Certificate

Automatic 18650 26650 32650 21700 PVC Heat Shrink Wrapping Machine For Cylindrical Battery



FEATURE

1. High efficiency: the film efficiency is 50~70PCS/MIN. It is 6~10 times of artificial efficiency;


2. High precision: the precision servo motor and high-precision mechanical structure make the film precision up to ±0.1MM, and the technology is leading the industry;


3. Highly intelligent: the humanized operation interface is convenient for manual operation, the fault is automatically alarmed, and the fault point is clear at a glance;


4. Simple operation and maintenance: the personnel can operate the equipment with a little training, and the maintenance is relatively simple;


5. High flexibility of equipment: After replacing the fixture and mold, it can be adapted to cylindrical batteries such as AA, AAA and 18650.


SPECIFICATION

Model

Tmax-Shrinking

Specification

 AA,AAA,18650

Film speed

 50~70PCS/MIN

Film precision

 ±0.1MM

Power supply

380V/220V

Air pressure

0.5~0.7Mpa

Power

9KW

Weight

800KG

Machine size

2100(L)*950(W)*1600(H)

Casing requirements

The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm.

Insulation sheet coil size

width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil)

Insulation sheet die size

Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm

Heat shrinkable bottom edge size

2.5mm ± 0.3mm (size error is related to casing material and baking conditions)

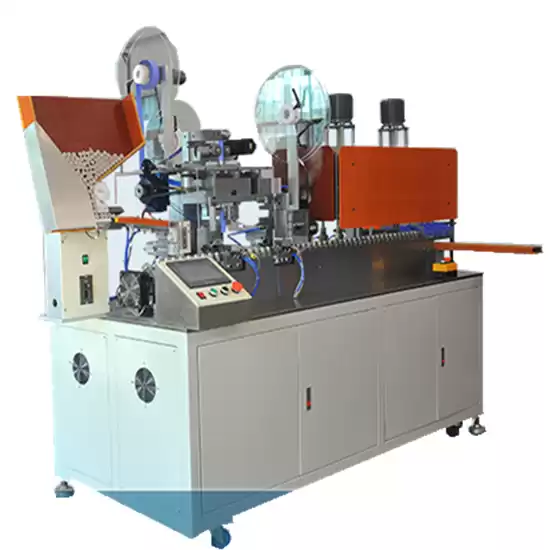

Shrink Wrapping Machine

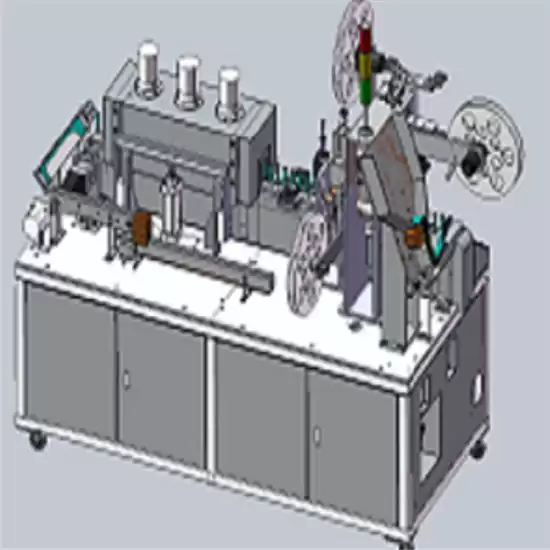

Shrink Wrapping Machine

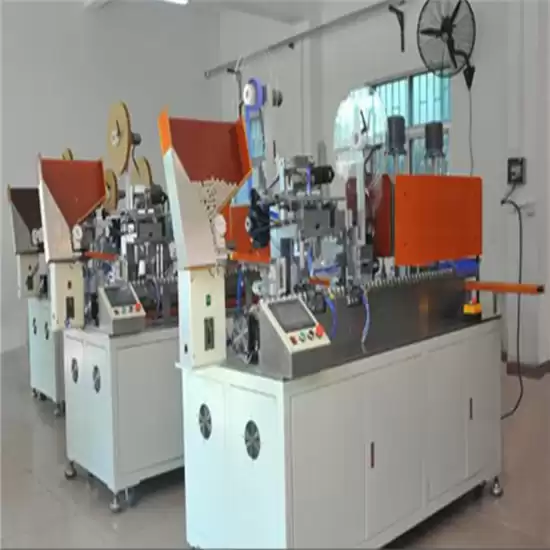

Shrink Wrapping Machine
