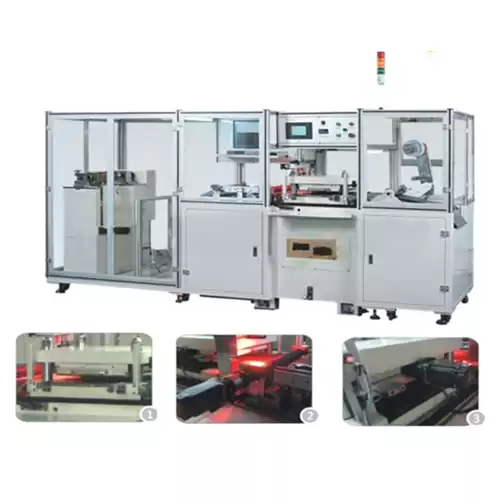

Automatic Aluminum Laminated Film Forming Machine for Pouch Cell Film Forming
Function:
1.Apply to lamination process,Intermittent or continuous coating electrode formation
2.Low cost laser cutter,quick replacement
3.PLC human-machine interface control system, screen protection
Technical parameters:
|
Item
|
Type one
|
Type two
|
Type three
|
|
Max formation area
|
330*260mm
|
450*430mm
|
530*450mm
|
|
Electrode width
|
20~350mm
|
20~450mm
|
20~530mm
|
|
Electrode thickness
|
0.09~0.15mm
|
0.09~0.15mm
|
0.09~0.15mm
|
|
Formation size
|
±0.10mm
|
±0.10mm
|
±0.10mm
|
|
Formation burr
|
≤0.02mm
|
≤0.02mm
|
≤0.02mm
|
|
Formation speed
|
40-50 pieces /min
|
40-50 pieces /min
|
40-50pieces/min
|
|
Cathode knife life
|
≥10000 times
|
≥10000 times
|
≥10000 times
|
|
Anode knife life
|
≥25000 times
|
≥25000 times
|
≥25000 times
|
|
Maximum electrode roll diameter
|
φ450mm
|
φ450mm
|
φ450mm
|
|
Size
|
3400*1400*1800
|
3600*1750*1800
|
4200*1600*1900
|
|
Power supply
|
220V AC/50HZ,3.8KW
|
380V AC/50HZ,6KW
|
380V AC/50HZ,7.5KW
|
|
Pressure
|
0.5-0.7Mpa
|
0.5-0.7Mpa
|
0.5-0.7Mpa
|
