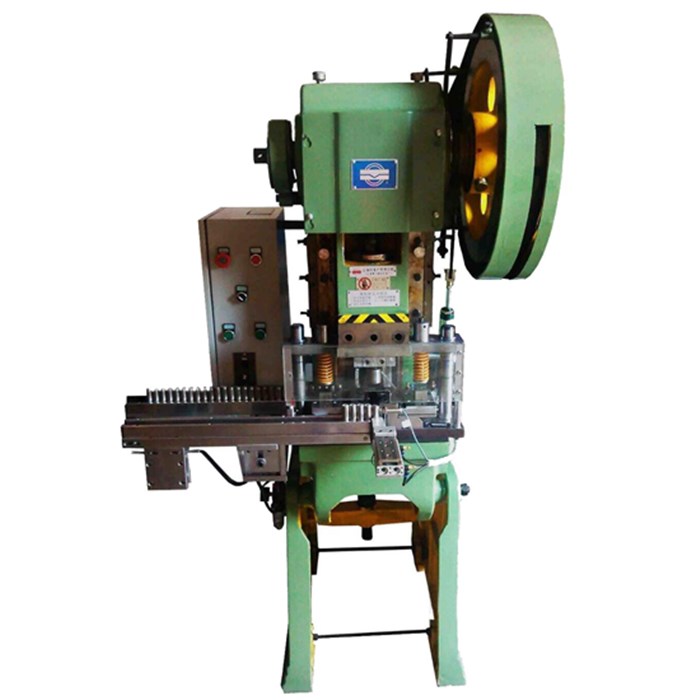

Automatic Battery Cases Sealing Machine for Cylindrical Battery

Crimping



It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.


Advanced Features:


                   Efficient batch loading/unloading mechanism with case feeding conveyor

·        Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable &         consistent sealing quality

·        Crimping speed and pressure is adjustable

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment


Specifications:


Working Voltage

110/220V AC, 50/60Hz, three Phase

Max. Power Consumption

4KW

Driving Force

Penumatic, 0.5 - 0.8 MPa compression gas is required

Compatibility



Standard crimping capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.

Control



User-friendly HMI with PLC touch screen control ensures easy program setup



Crimping Force



Upto 6kgf/cm²



Productivity



·         30 pieces per minute

·         Material feeding conveyor is able to load upto 22 pcs per batch

Warranty



·         One year limited with lifetime support

·         Parts rusted without regular cleaning and maintenance are not covered

Product Dimensions



W1200mm*D690mm*H1765mm

Net Weight



800 lbs
