Automatic Big Bag Flour Milk Powder Detergent Powder Protein Powder Packing Machine

Automatic powder packing machine is widely used in food industry,pharmaceutical industry,chemical industry and additives industry and so on



Automatic powder packing machine is widely used in food industry,pharmaceutical industry,chemical industry and additives industry and so on.such as skimmed milk powder, flour, detergent powder, talcum powder etc;

Suitable Material: Powder (≤ 60Mesh)

empty bag checking:machine will check the bag condition during the whole process and it will reject the disqualified bag automatically

bag wrongly places:if bags are not places rightly,signal will be send to the weighing scale to avoid failure filling

sewing mistake monitoring :system will send alarm when label not ready,sewing line broken ,abnormal particle interfere ,System will stop until problems solved.

High-precision digital weighing sensor;

Material: contact parts S.S 304;

Electric parts brand: Siemens/Schneider/Omron/Delta etc

weighing range:5kg-50kg

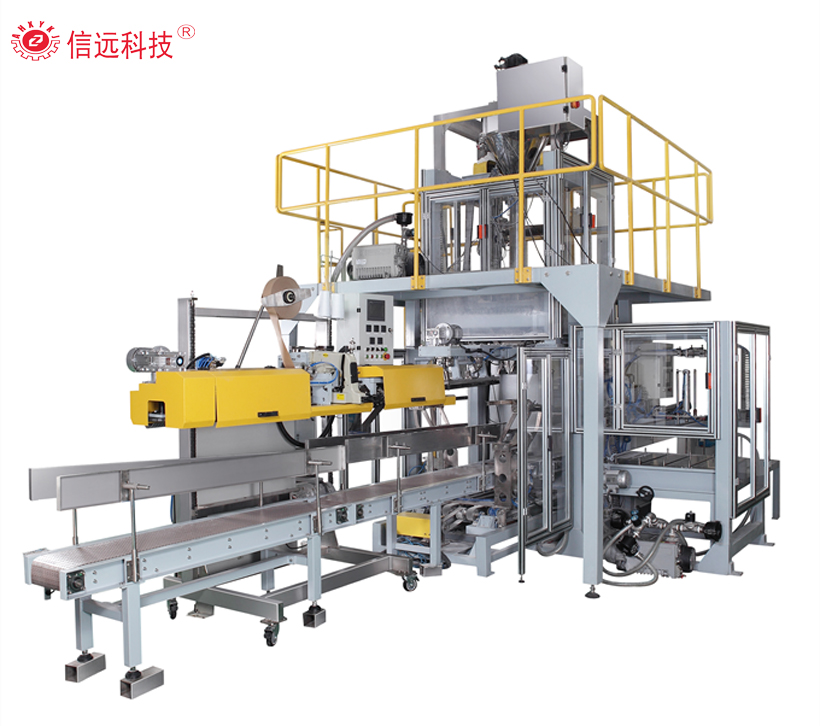

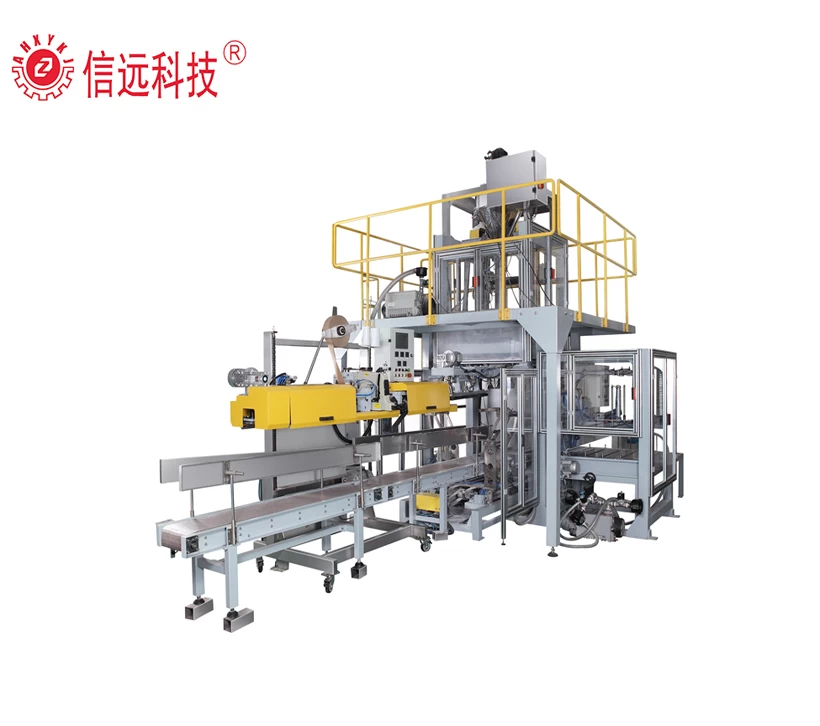

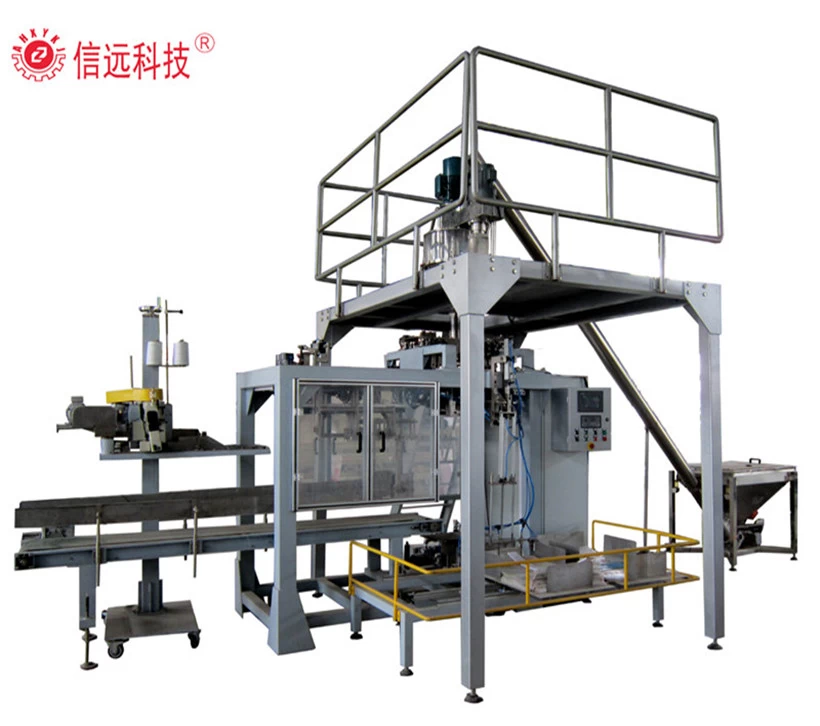

Automatic powder packing machine


Did you find our machine interesting?

We will help you with selecting the machine, and suggest tailor-made solutions.


notice

1. provide customized design for special requirement

2. Provide optional device as per actual need


Technical Data:



1.Packaging material : prefabricated woven bag(lined with PP/PE film);Complex film bag
2.Bag size :(700~1050mm)*(450~550mm)(L*W)
3.Measuring range :5~50 kg Powder
4.Packaging rate : 1~3 bags /min.(related with packing material ,bag size )
5.Ambient temperature : -10-45 degree
6.Air supply : compressed air 0.5~0.7Mpa
7.Power supply: AC380V 50HZ
8.Power :4.0KW
9.External dimensions : 4300*3500*3500mm(L*W*H)



Transportation&After Service

◎All the machine shall be packed in Export wooden box;

◎Engineers are available to do service abroad;

◎Training &Technical instructing lessons shall be provide during installation;

◎Video instruction installation is also available if customer have professional technical engineers;

◎One year warranty is provided for customer.
