Automatic Brick/Block Forming Machine

Using sand, gravel, and cement, and with the addition of large quantities of fly ash, slag, steel slag, coal ash, ceramsite, perlite, and other industrial waste, this machine produces various exterior wall blocks, interior wall blocks, PC imitation stone permeable bricks, decorative wall blocks, floor slabs, embankment blocks, interlocking blocks, curb stones, and other paving stones. A colored fabric application device can be added to produce colored paving bricks of various specifications.

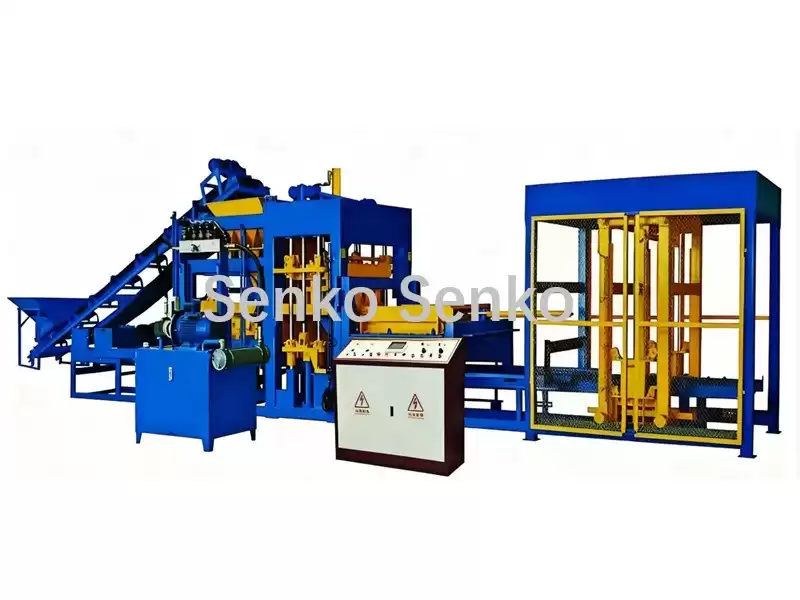

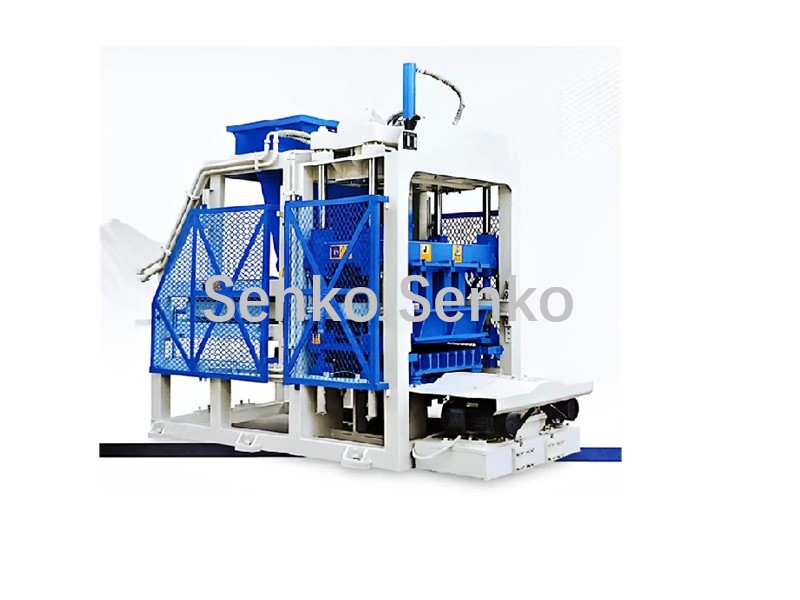

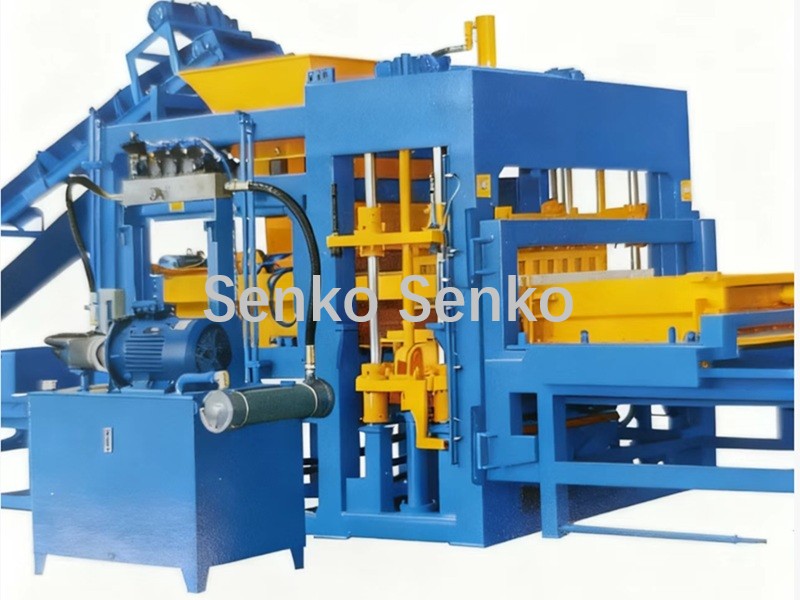

Automatic Brick/Block Forming Machine (Model: SKST1500)



This multi-functional machine can produce blocks of various specifications by changing the molds.① Porous bricks and hollow blocks, etc.; ② Expanded clay insulated blocks; ③ Composite insulated concrete blocks. The above products have good thermal insulation performance and can meet the requirements of the new national energy-saving policy.


Parameter Information:

ITEM SKST600 SKST1000 SKST1200 SKST1800
MACHINE SIZE 9450*3300*2700 11500*4050*2800MM 12000*4550*2800MM 12500*2714*3100MM
SPEED 15-20(S) 15-20(S) 15-20(S) 15-20(S)
VIBRATION FREQUENCY 3800-4500(TIMES/SUB) 3800-4500(TIMES/SUB) 3800-4500(TIMES/SUB) 3800-4500(TIMES/SUB)
VIBRATION FORCE 68(KN) 105KN 109KN 120KN
PALLET SIZE 880/980*680MM 1100*880MM 1350*880MM 1400*1400MM
RATED PRESSURE 21MPA 21MPA 21MPA 21MPA
MACHINE WEIGHT 8500KG 13800KG 15200KG 20000KG
FORMING MACHINE POWER 31.4KW 45.2KW 60.2KW 81.38KW
STACKER POWER 3KW 3KW 3.7KW 3,7KW



Products Parameter:

ITEM SIZE(MM) SKST600 SKST1000 SKST1200 SKST1800
PCS/MOULD PCS/HOUR PCS/MOULD PCS/HOUR PCS/MOULD PCS/HOUR PCS/MOULD PCS/HOUR
HOLLOW BLOCK 390*190*190 6 1000-1400 10 1800-2400 12 2100-2800 18 2600-3600
SOLID BRICK 240*115*90 15 3600-4300 24 5700-6800 30 7200-8100 45 1000-1200
POROUS BLOCK 240*115*51 32 7600-8700 51-56 11000-13700 70 16000-18000 100 25000-27500
COLOR BRICK 200*100*60 21-24 3700-5000 35 6300-7500 44 7500-10500 66 10000-13000

Product Advantages:

1. Imported high-efficiency hydraulic proportional system components (more efficient and energy-saving)

2. Imported intelligent PLC touch screen and genuine electrical components (high degree of automation, easier operation)

3. Arch-breaking rapid material feeding device (particularly advantageous for porous bricks, resulting in more uniform material feeding)

4. Extended high-efficiency vibration technology (shorter product molding time, higher density)

5. Special high-temperature heat treatment process (more wear-resistant and robust molds)

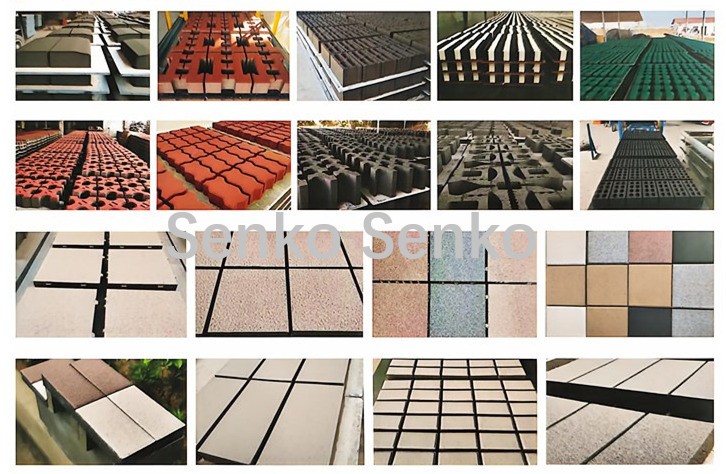

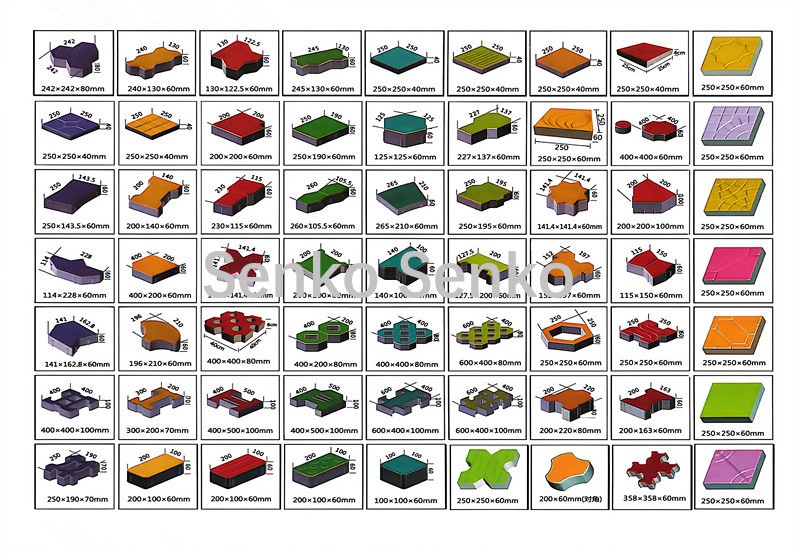

Finished Products:


Application Scenarios
