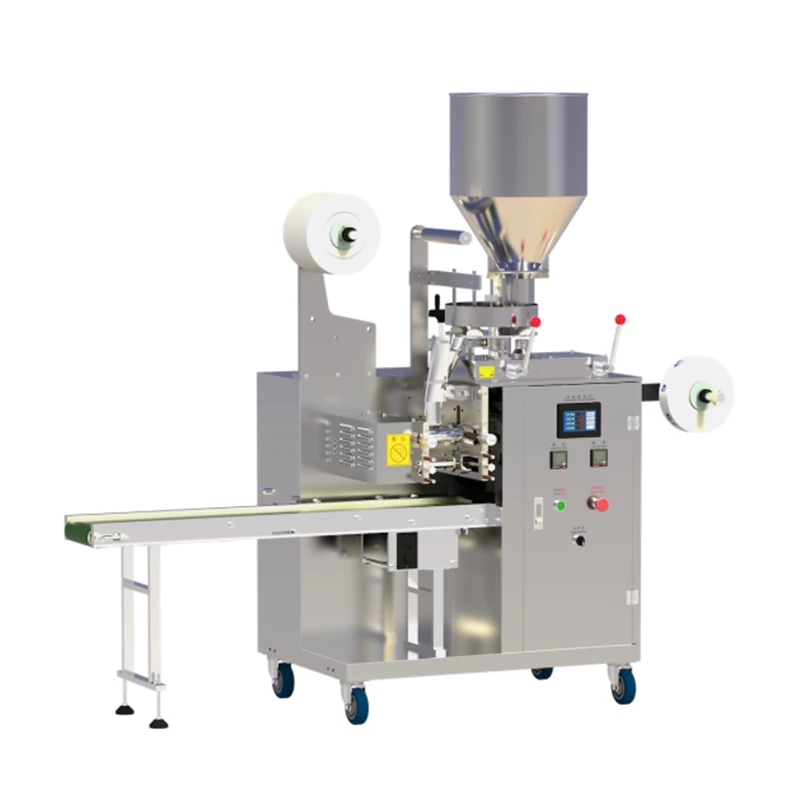

Automatic continuous hanging line and label tea bag packing machine
Customized And OEM Service Available
Details are introduce
1.This Automatic continuous hanging line and label tea bag packing machine can automatically complete bag-making, metering, filling, sealing, cutting and counting functions.
2.This Tea Bag Packing Machine machine adopts touch screen operation, PLC control to change the bag length without changing the gear, and a conveyor belt for finished products is configured randomly.
3.Packaging capacity: 3-10 g (1.6-26ml).
4.Packaging speed: 30-60 pcs/min (depending on the characteristics of materials)
5.Sealing form: three side sealing
6.Label size: length * width 20*28(mm) /20*25(mm) /20*20(mm)
7.Bag-making size: length: 50-80 (mm) width: 45-80 (mm)
8.Power supply: 220 v / 50 hz / 1.6 KW
9.Weight: about 350Kg
10.Overall size: 900*750*1750 (mm) (length * width * height)
Electrical configuration
|
NO
|
Name of electrical accessories
|
Brand
|
|
1
|
display
|
Yonghong
|
|
2
|
PLC
|
Yu sheng
|
|
3
|
Temperature control table
|
Hui bang
|
|
4
|
Stepper motor
|
Lei sai
|
|
5
|
switch
|
Chint
|
|
6
|
Proximity switch
|
Kori
|
|
7
|
Solid state relay
|
Meigeer
|
|
8
|
Main motor
|
Thunis
|
|
9
|
Slow down box
|
Jiacheng
|
|
10
|
Encoder
|
Rongde
|
